8: Services

EMG™ Edge Management Gateway User Guide 166

Web Server

The Web Server supports all versions of the TLS protocol, but due to security concerns, does not

support any versions of the SSL protocol. The Web Server page allows the system administrator

to:

 Configure attributes of the web server.

 View and terminate current web sessions.

 Import a site-specific SSL certificate.

To configure the Web Server:

1. Click the Services tab and select the Web Server option. The following page appears:

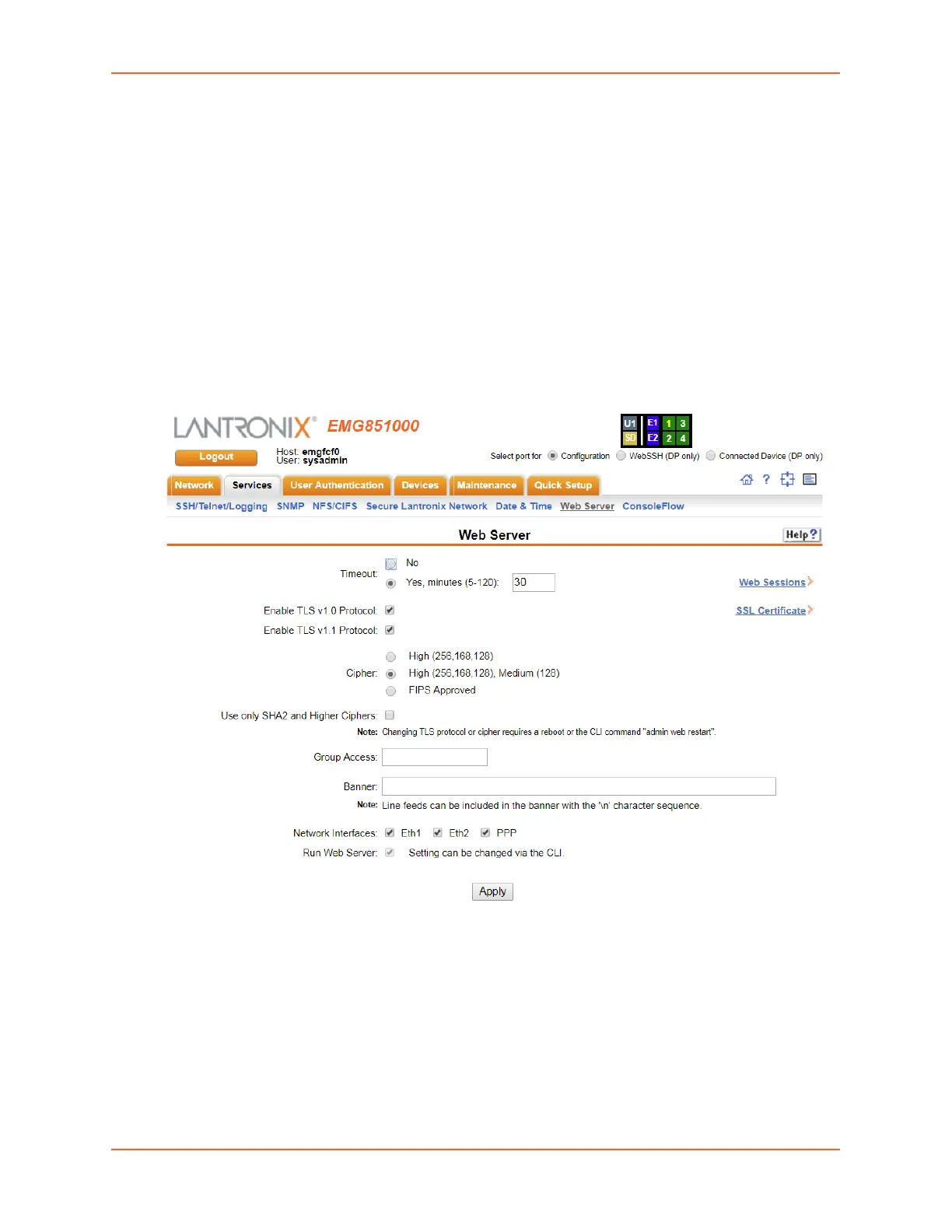

Figure 8-10 Services > Web Server
