I/O Module Installation
The EMG module port configuration can be changed by adding or replacing I/O modules in the I/O
module bays.
Warning: The EMG must be powered off when installing or replacing the modules.
Not powering off the device before changing the module will void the
manufacturer warranty.
Warning: Install the I/O module on the front only of the EMG unit. Do not insert
any other module on the front of the EMG unit. Doing so may damage
the EMG unit and will void the manufacturer warranty.

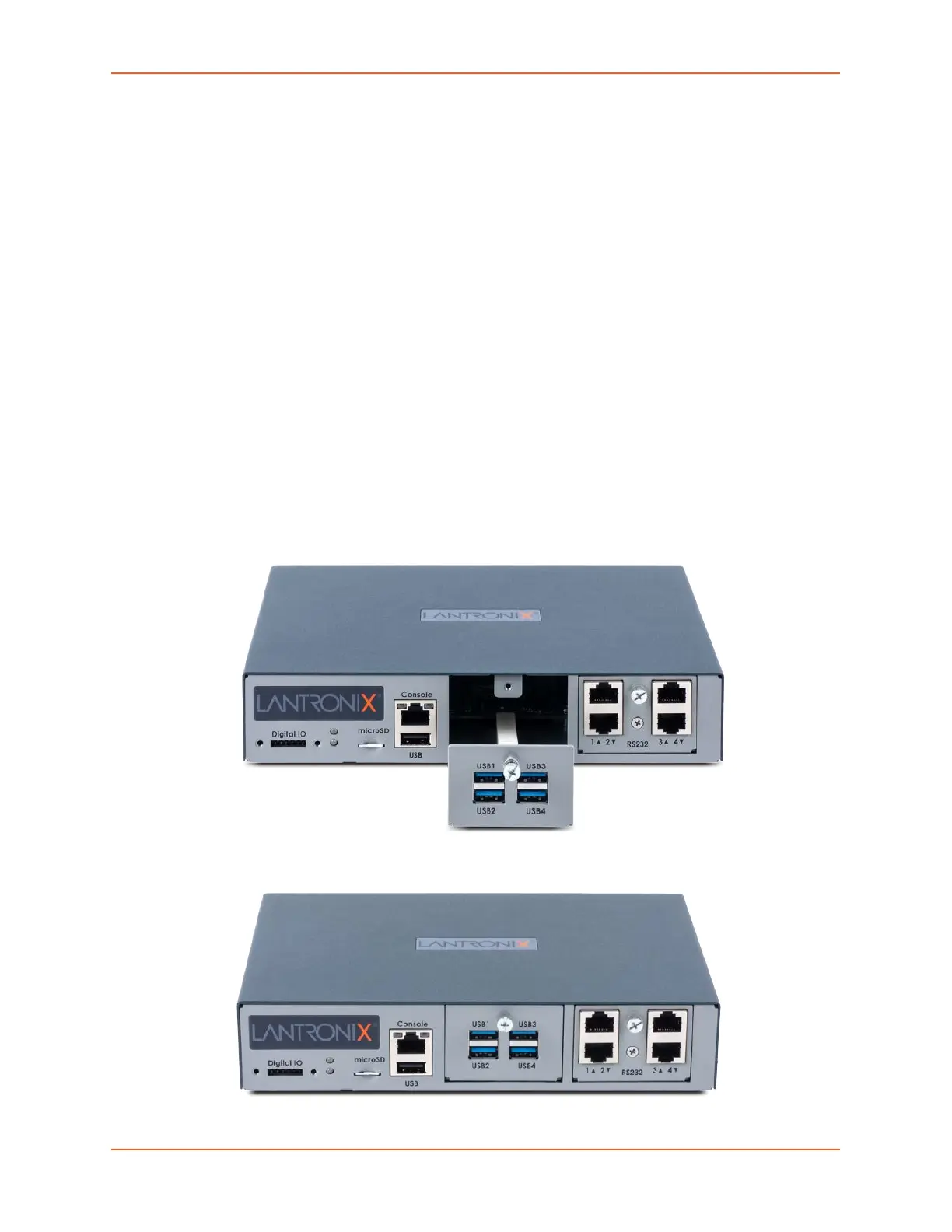

To install an I/O module:
1. Disconnect the power cord from the EMG unit and from the wall outlet.
2. On the front of the EMG unit, locate the module bay where the module will be inserted.
3. Unscrew the existing module or faceplate from the module bay with your fingers and carefully
remove it from the module bay.
4. Insert the module into the module bay making sure the module sits completely and securely in
the housing.
5. The module will sit flush with the EMG chassis.
