4: EMG 7500 Installation

EMG™ Edge Management Gateway User Guide 61

Power Input

The EMG has a DC input jack connector for applying 9 to 30 VDC. The EMG ships with an

external AC (90W, 100-240V, 50/60 Hz) 12 VDC power supply. (See EMG 7500 Package

Contents on page 53.)

Warning: Risk of serious electric shock! Disconnect the power cord before

servicing the EMG.

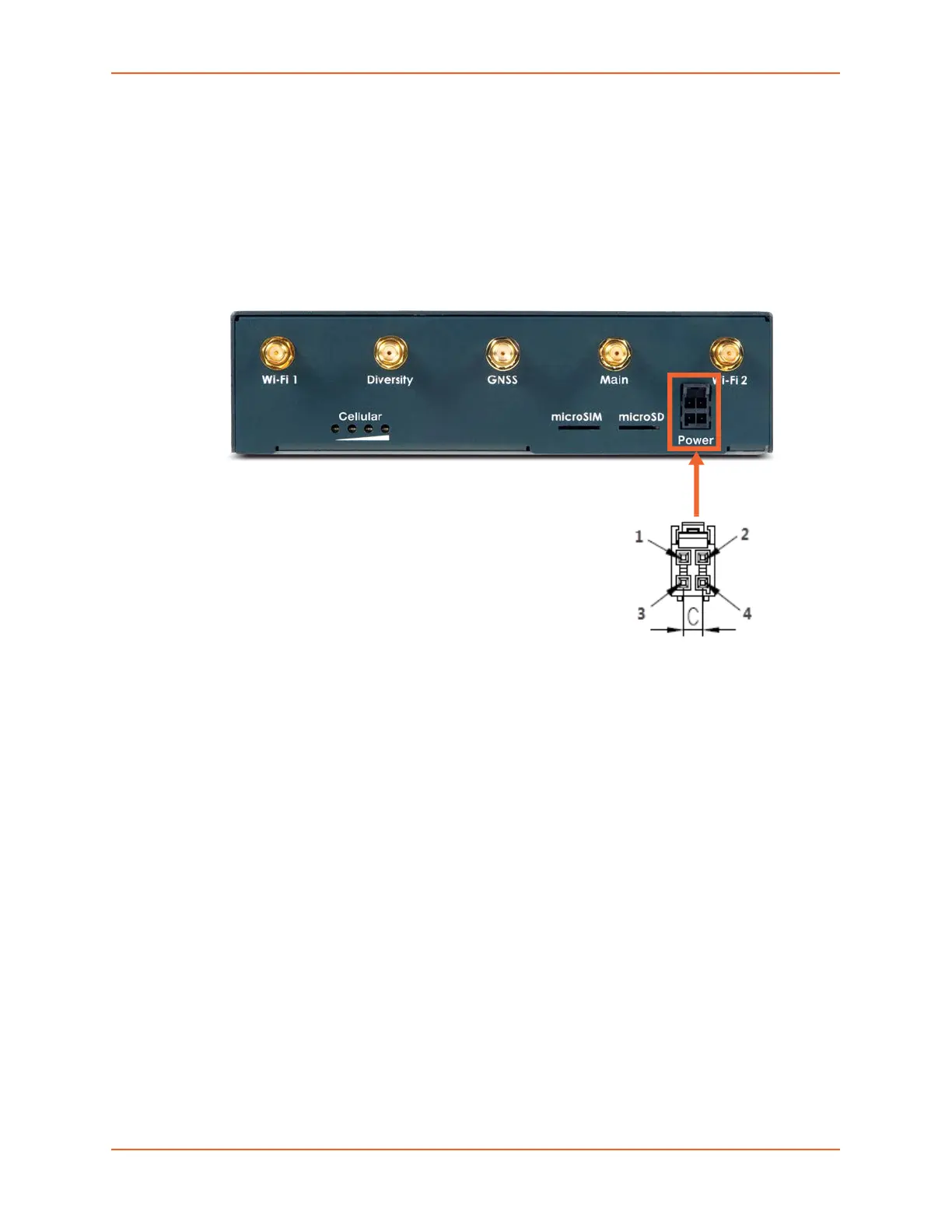

Figure 4-9 EMG 7500 Power Input

Pin assignments

Pin 1: Input voltage 9-30 VDC

Pin 2: reserved

Pin 3: Ground

Pin 4: Earth Ground
