EMG™ Edge Management Gateway User Guide 93

Cellular Modem Settings

The EMG supports the use of one internal LTE cellular modem installed in the EMG unit. The

Cellular Settings web page allows the user to configure parameters that determine how the EMG

cellular modem network behaves, and to update the cellular modem firmware.

To complete the Cellular Settings page:

1. Click the Network tab and select the Cellular Modem option. The following page displays:

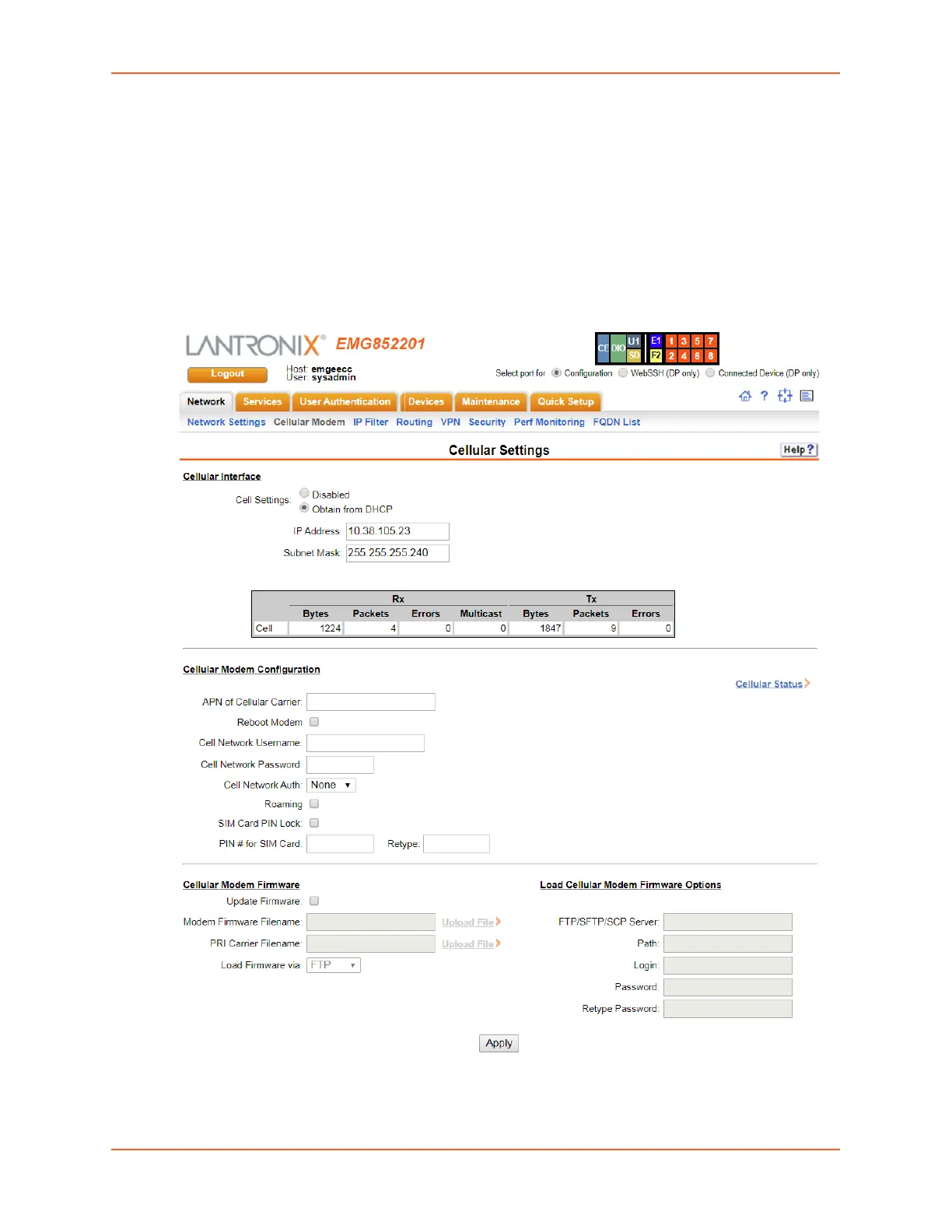

Figure 7-4 Network > Cellular Modem Settings Page
