9: USB/SD Card Port

EMG™ Edge Management Gateway User Guide 179

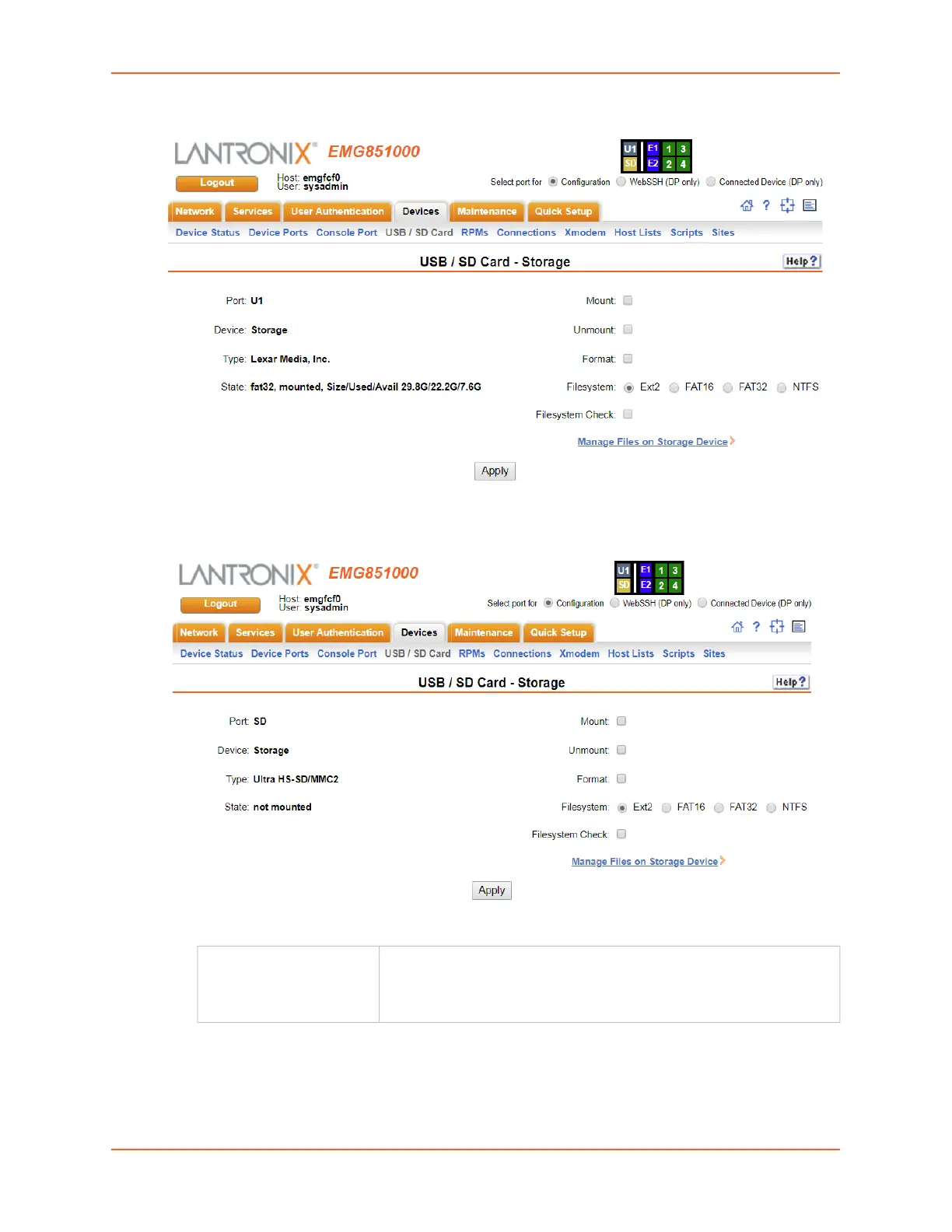

Figure 9-2 Devices > USB > Configure

Figure 9-3 Devices > SD Card > Configure

5. Enter the following fields.

Mount Select the checkbox to mount the first partition of the storage device on

the EMG unit (if not currently mounted). Once mounted, a USB thumb

drive or SD card is used for firmware updates, device port logging and

saving/restoring configurations.

Default Chapter2
