3: EMG 8500 Installation
EMG™ Edge Management Gateway User Guide 47
Warning: The EMG must be powered off when installing or replacing the modules.
Not powering off the device before changing the module will void the
manufacturer warranty.

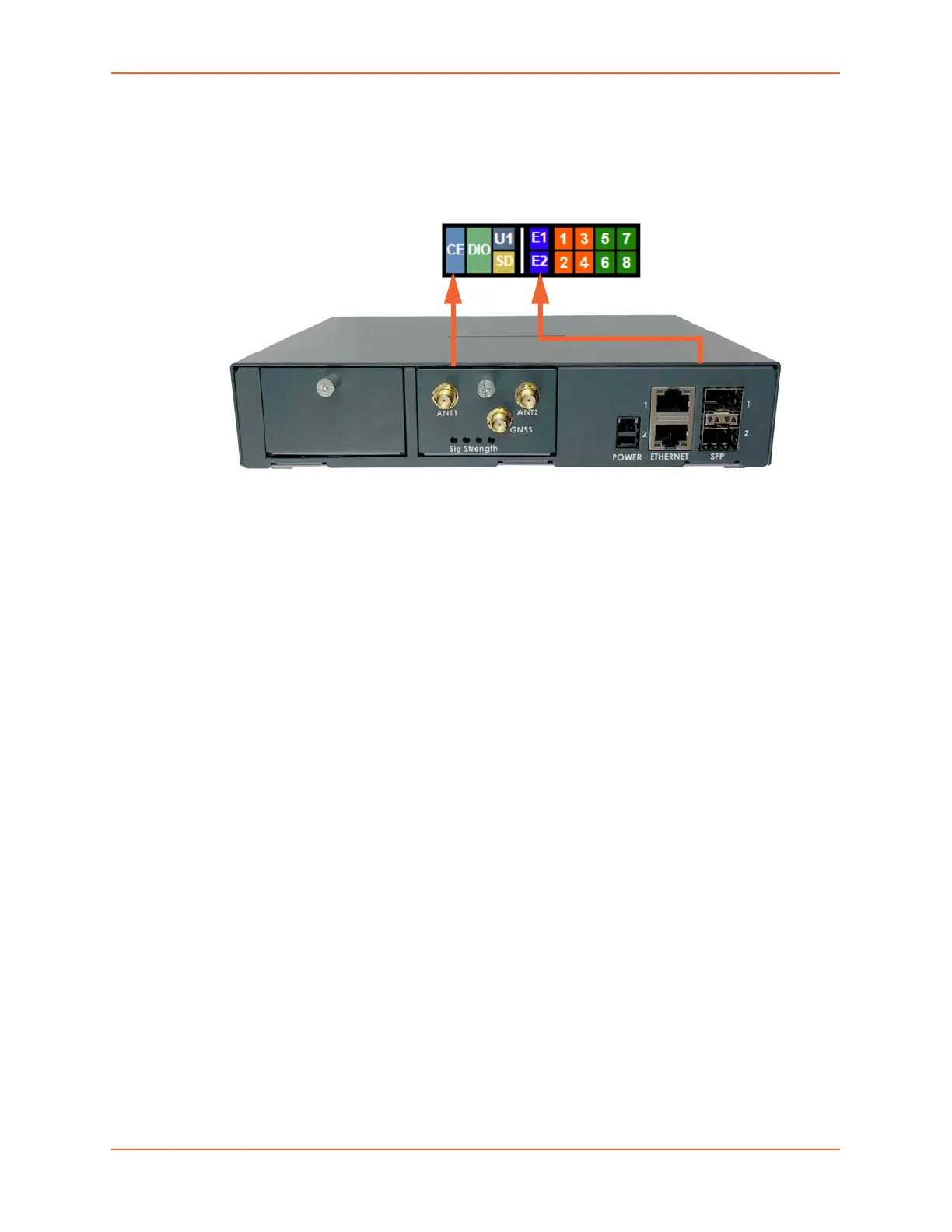

Figure 3-10 Sample Connectivity Module Configuration (Back Side)
Connecting Terminals
The console port is for local access to the EMG and the attached devices. You may attach a dumb
terminal or a computer with terminal emulation to the console port. The EMG console port uses
RS-232C protocol and supports VT100 emulation. The default serial settings are:
9600 baud
8 bit data
No parity
1 stop bit
No flow control
To connect the console port to a terminal or computer with terminal emulation, Lantronix offers
optional adapters that provide a connection between an RJ45 jack and a DB9 or DB25 connector.
The console port is configured as DTE (non-reversed RJ45). See Appendix C: Adapters and
Pinouts for more information.
To connect a terminal:
1. Attach the Lantronix adapter to your terminal (typically a PN 200.2066A adapter - see
Figure C-1) or your PC's serial port (use PN 200.2070A adapter - see Figure C-4).
2. Connect the Cat 5 cable to the adapter, and connect the other end to the EMG console port.
3. Turn on the terminal or start your computer's communication program (e.g., PuTTY or
TeraTerm Pro).
4. Once the EMG is running, press Enter to establish connection. You should see the model
name and a login prompt on your terminal.
5. Log in with the default user name sysadmin and the last 8 characters of the Device ID (for
newly manufactured units that come installed with 8.2.0.1 or later) or PASS (for all older units)
as the password.
Bay 1(empty) Bay 2 Ethernet/SFP
