10: Device Ports
EMG™ Edge Management Gateway User Guide 215
3. Click Apply.
Internal Modem Commands
Go to Internal Modem Commands to view CLI commands which correspond to the web page
entries described above.
DIO Port
DIO port applies to EMG 8500 only.
The front of the EMG unit has two Digital Inputs and one Relay Output. DIO ports can be used in
Events as a trigger (inputs) or an action (relay output). Specifications for the DIO port:
Two configurable inputs suitable for TTL input levels and tolerant up to 30VDC input voltage.
The DIO inputs can be used to monitor the current status of any attached sensor.
One independently isolated mechanical form-C relay, supporting 1A 24V. When the relay is
energized/turned on, the relay is closed, connecting both relay ports on the I/O connector
through the relay. When the relay is turned off, the signal path is open, disconnecting the relay
ports on the I/O connector.

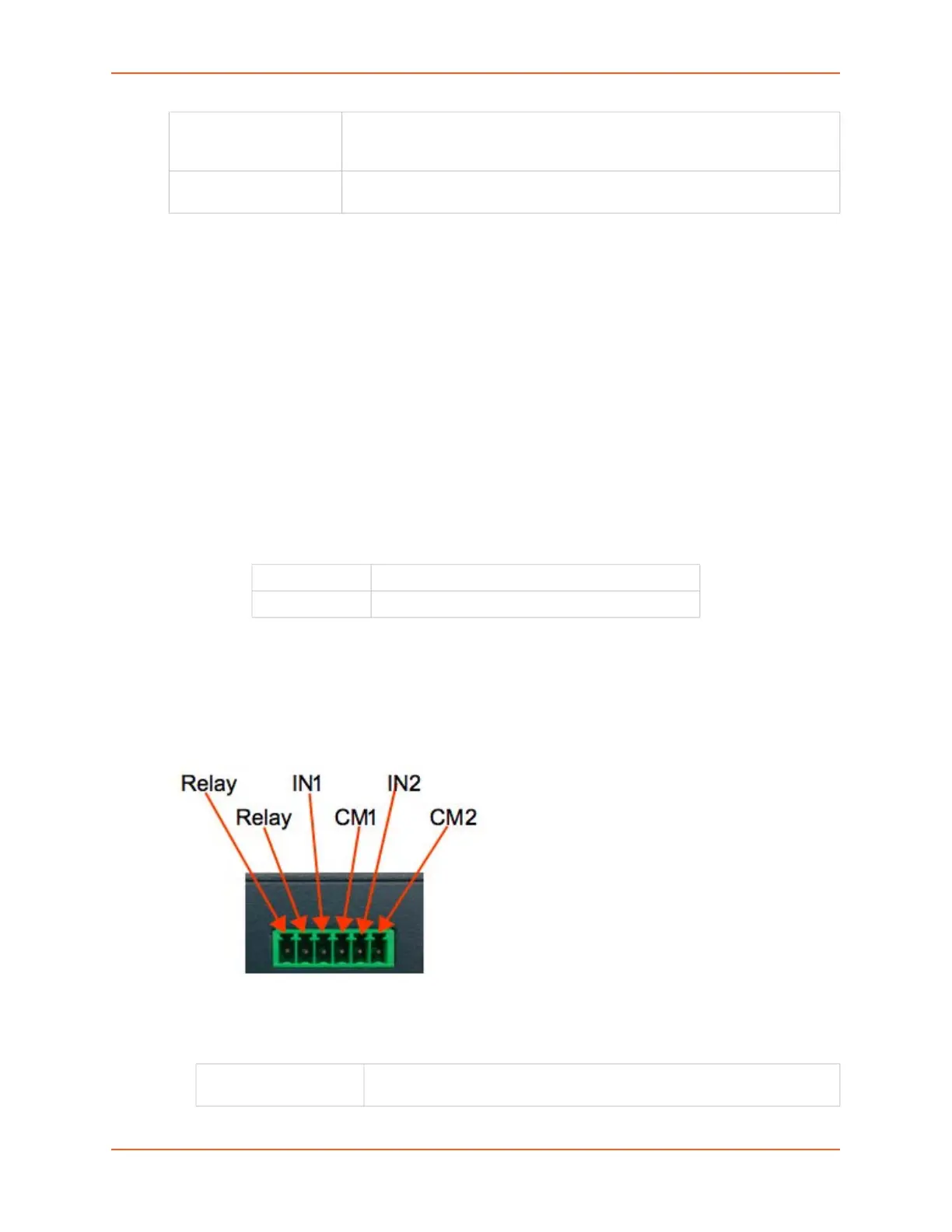

DIO terminal block (in the UIs the ports are designated as Front #1, Front #2 and Front Relay):
To configure the DIO ports:
1. Change the following Front #1 and Front #2 Input port fields:
Remote/Dial-out
Password/ Retype
Password for authentication when dialing out to a remote system, or if a remote
system requests authentication from the EMG unit when it dials in. May have up
to 20 characters.
Restart Delay The number of seconds after the timeout and before the EMG module attempts
another connection. The default is 30 seconds.
On
Minimum: 2 VDC, Maximum: 30 VDC
Off Minimum: 0 VDC, Maximum: 0.7 VDC
Name The name of the port. Valid characters are letters, numbers, dashes (-),
periods and underscores (_).
