4: EMG 7500 Installation
EMG™ Edge Management Gateway User Guide 56
Rack Mount Installation

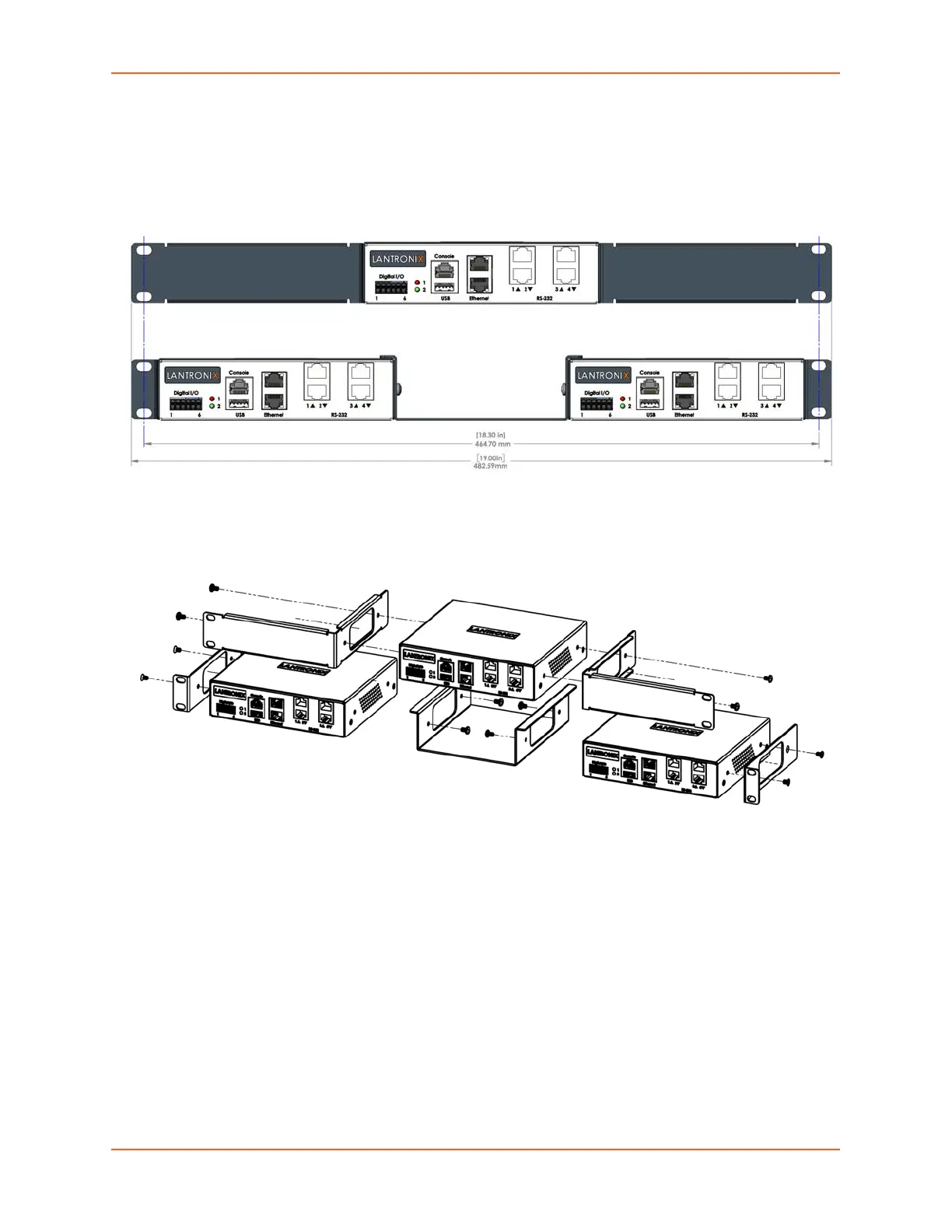

Figure 4-3 shows two possible rack mount configurations. Figure 4-4 shows the rack mount screw
placement.
Figure 4-3 EMG 7500 Rack Mount Configurations
Figure 4-4 EMG 7500 Rack Mount Screw Placement
1. Attach the brackets on the sides of the EMG unit using a screwdriver and the screws provided
with the mounting kit.
2. Mount the unit securely in a 19-inch rack.
Warning: Do not block the air vents on the sides of the EMG module. If you mount
the EMG in an enclosed rack, we recommend that the rack have a
ventilation fan to provide adequate airflow through the EMG unit.
