3: EMG 8500 Installation
EMG™ Edge Management Gateway User Guide 48
Note: The Device ID can be found on the product label on the unit or in the boot
messages on the console.
Note: For security purposes, we recommend that you change the default password and
choose a strong password.
Power Input
The EMG has a DC input jack connector for applying 9 to 30V DC. The EMG ships with an
external 100 to 200VAC 50/60Hz to 12V DC power supply brick for supplying power to the DC
input jack. (See EMG 8500 Package Contents on page 37.)
Warning: Risk of serious electric shock! Disconnect the power cord before
servicing the EMG.

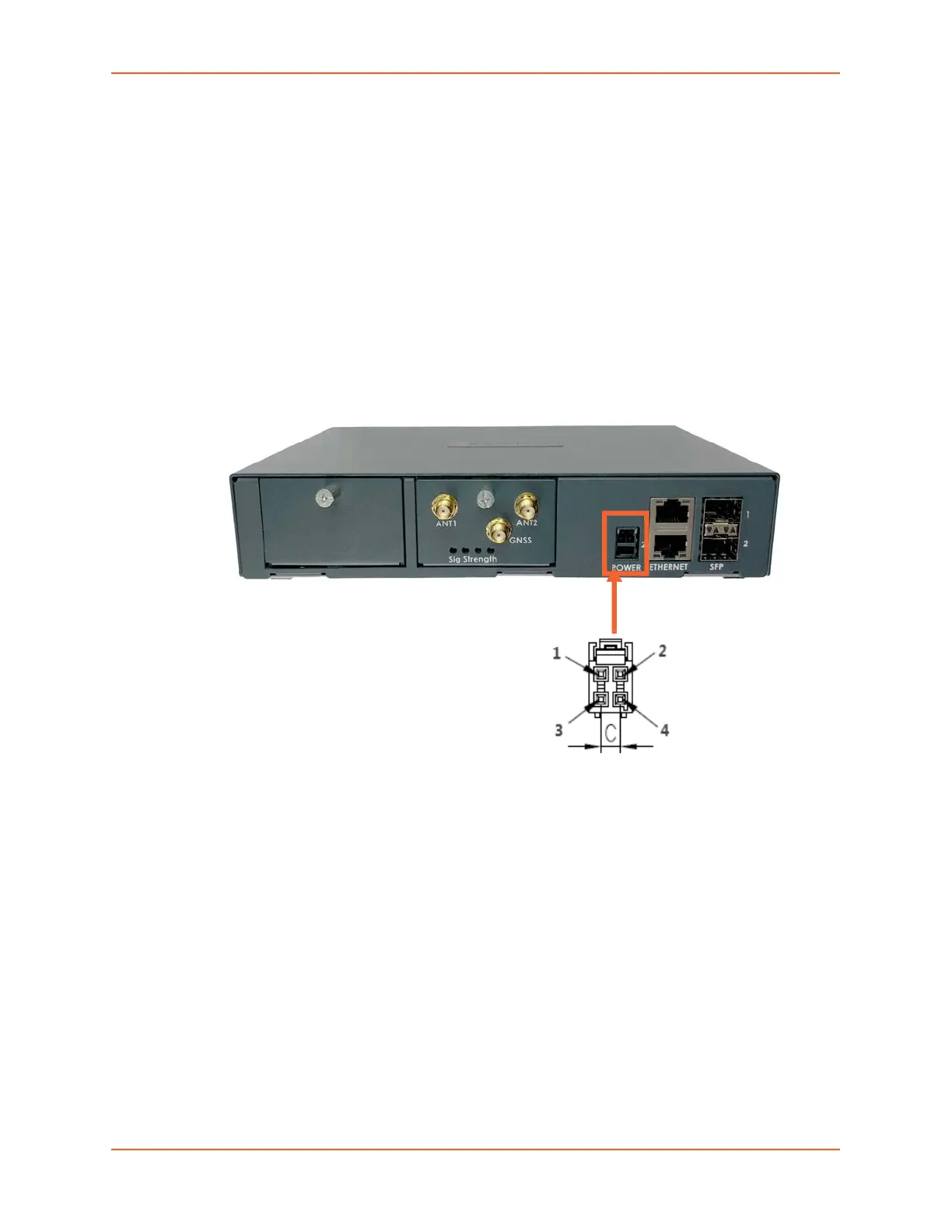

Figure 3-11 Power Input
Pin assignments
Pin 1: Input voltage 9-30 VDC
Pin 2: reserved
Pin 3: Ground
Pin 4: Earth Ground
