11: Remote Power Managers

EMG™ Edge Management Gateway User Guide 236

Note: The Devices > RPMs - Add Device page with the same functionality can also

be accessed through the Device Ports > Settings (1 of 2) page by selecting RPM in

the Connected dropdown menu.

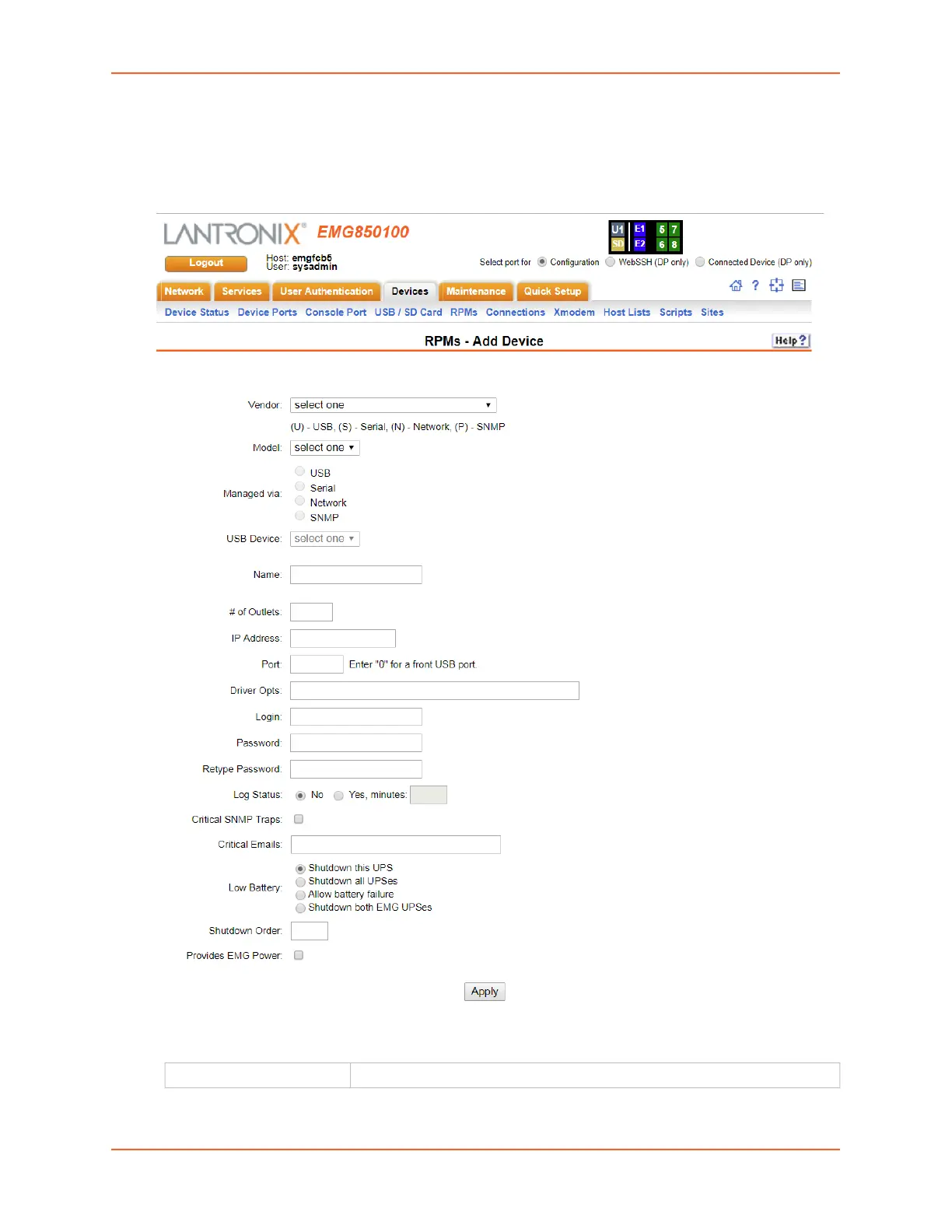

Figure 11-7 Devices > RPMs - Add Device

3. Enter the following:

Vendor Select the correct vendor from the drop-down menu.
