14: User Authentication

EMG™ Edge Management Gateway User Guide 323

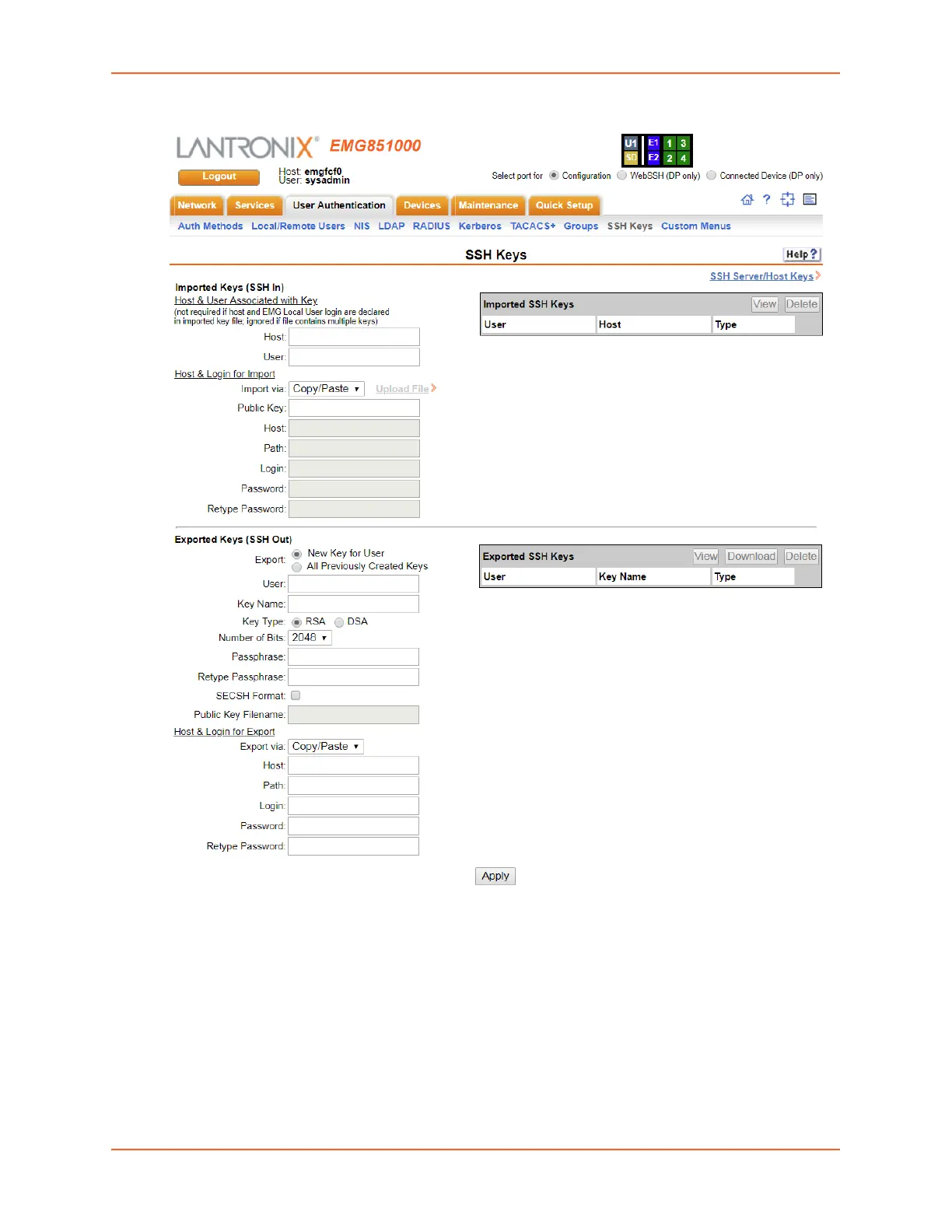

Figure 14-11 User Authentication > SSH Keys

2. Enter the following information:

Imported Keys (SSH In)

Host & User Associated with Key

These entries are required in the following cases:

 The imported key file does not contain the host that the user will be making an SSH

connection from, or
