 Status field <Nozzle> (8): This field shows the current operating condition of the
nozzle and enables the opening or closing of the nozzle. The condition is displayed in
the form of a text message (1) and of an active visualization graphic (2).
Operating conditions:
 Opening nozzle  Nozzle open
 Closing nozzle  Nozzle closed
With the buttons <Opening nozzle> (3) and <Closing nozzle> (4) you can open or
close the nozzle. The executable button is backgrounded blue-grey.

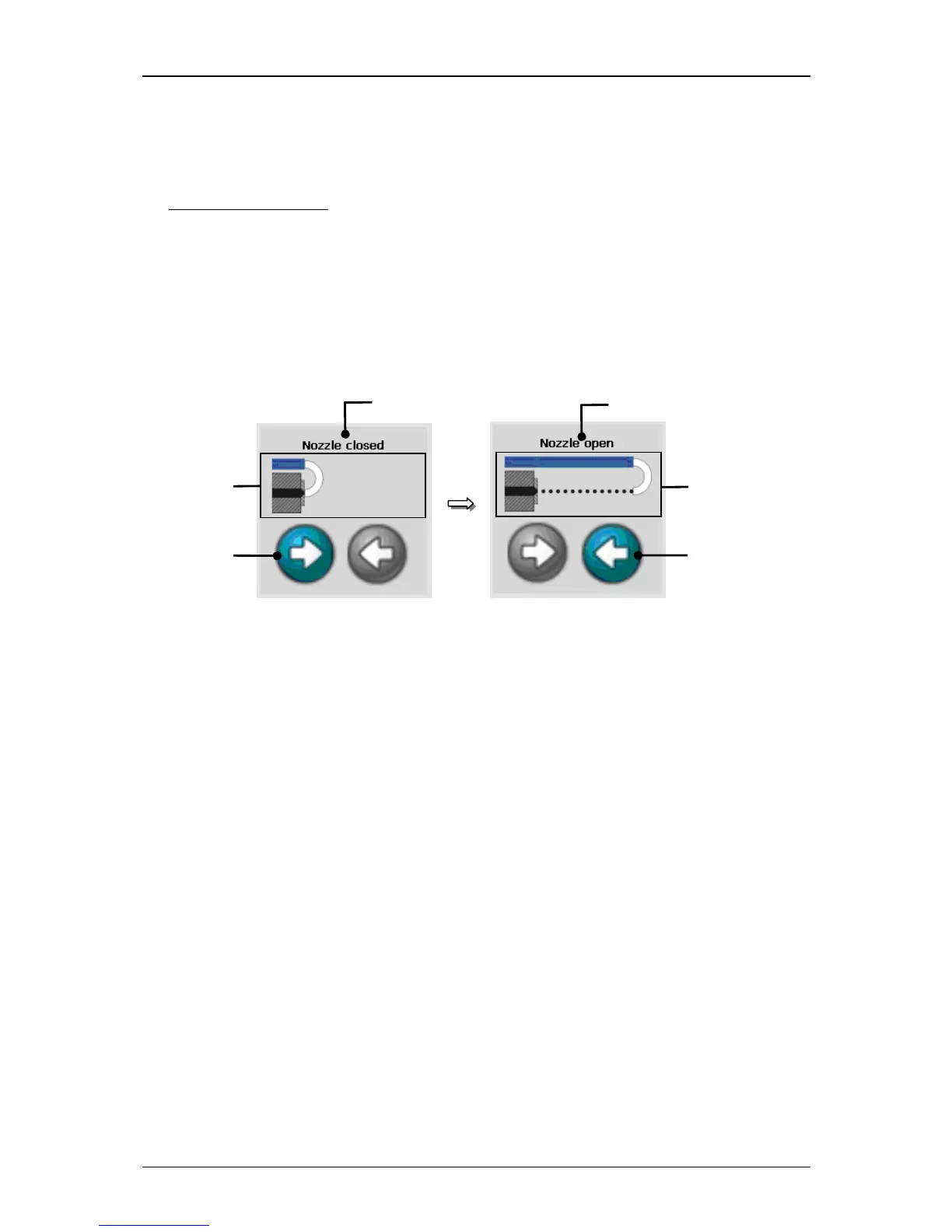

Figure 14
Status field <Nozzle>
1 – Status report 3 – Button <Opening nozzle>
2 – Visualization field 4 – Button <Closing nozzle>
