4 Device control (DCTRL)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 How to get to the parameterisation dialog of the device control:
1. »Engineer« Go to the Project view and select the 8400 HighLine inverter.
2. Select the Application parameters tab from the Workspace.
3. Go to the Overview dialog level and click the Drive interface button.

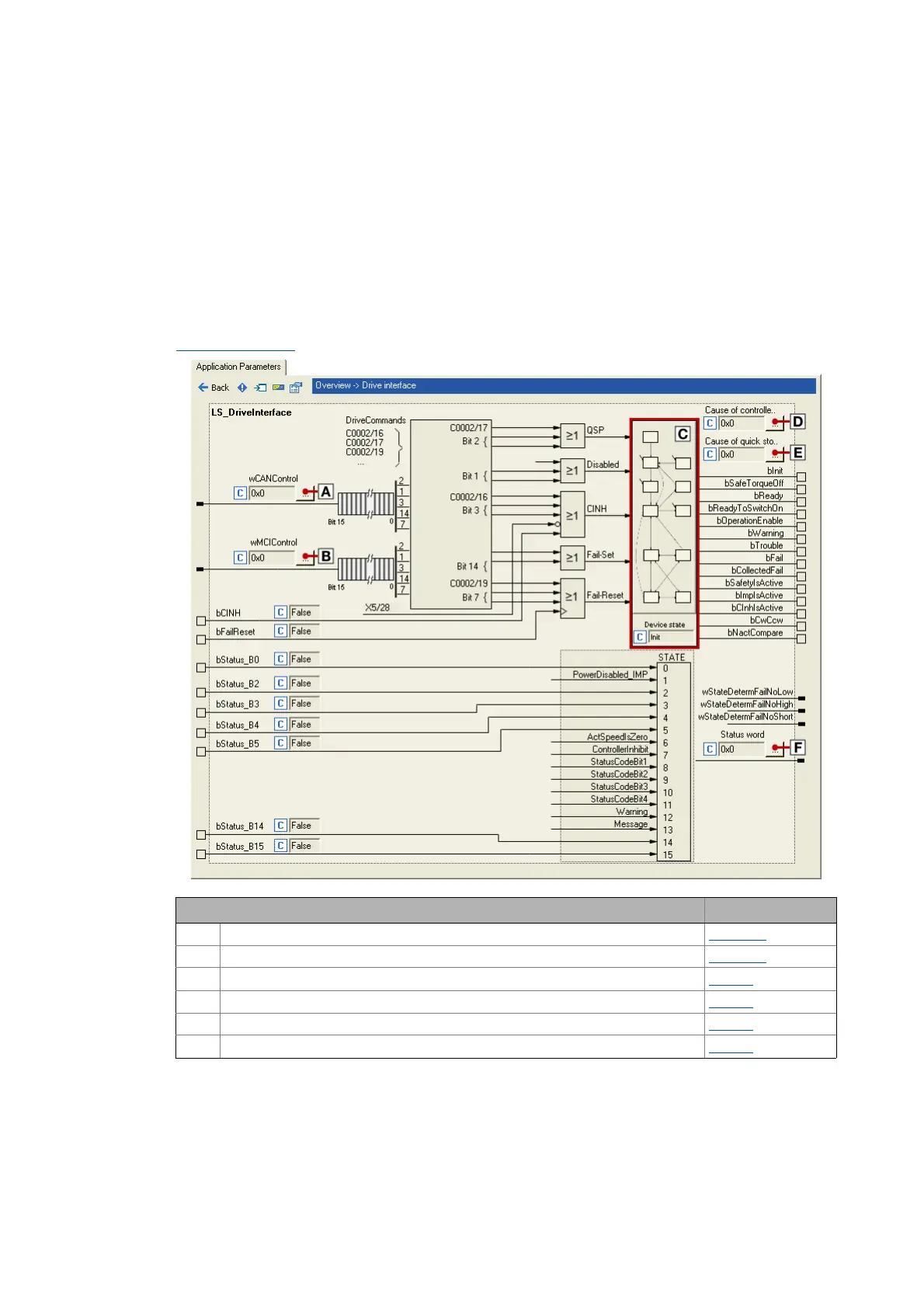

Parameterisation dialog in the »Engineer«
The parameterisation dialog shows the input / output signals and the internal signal flow of the
LS_DriveInterface
system block which displays the device control in the function block editor:
Range / Meaning Display parameter
 Display of the control word via system bus (CAN) C00136/2
 Display of the control word via communication module (e.g. PROFIBUS) C00136/1
 Display of the internal state machine and the current device status C00137
 Display of all active sources of a controller inhibit C00158
 Display of all active sources of a quick stop C00159
 Display of the status word of the device control C00150
