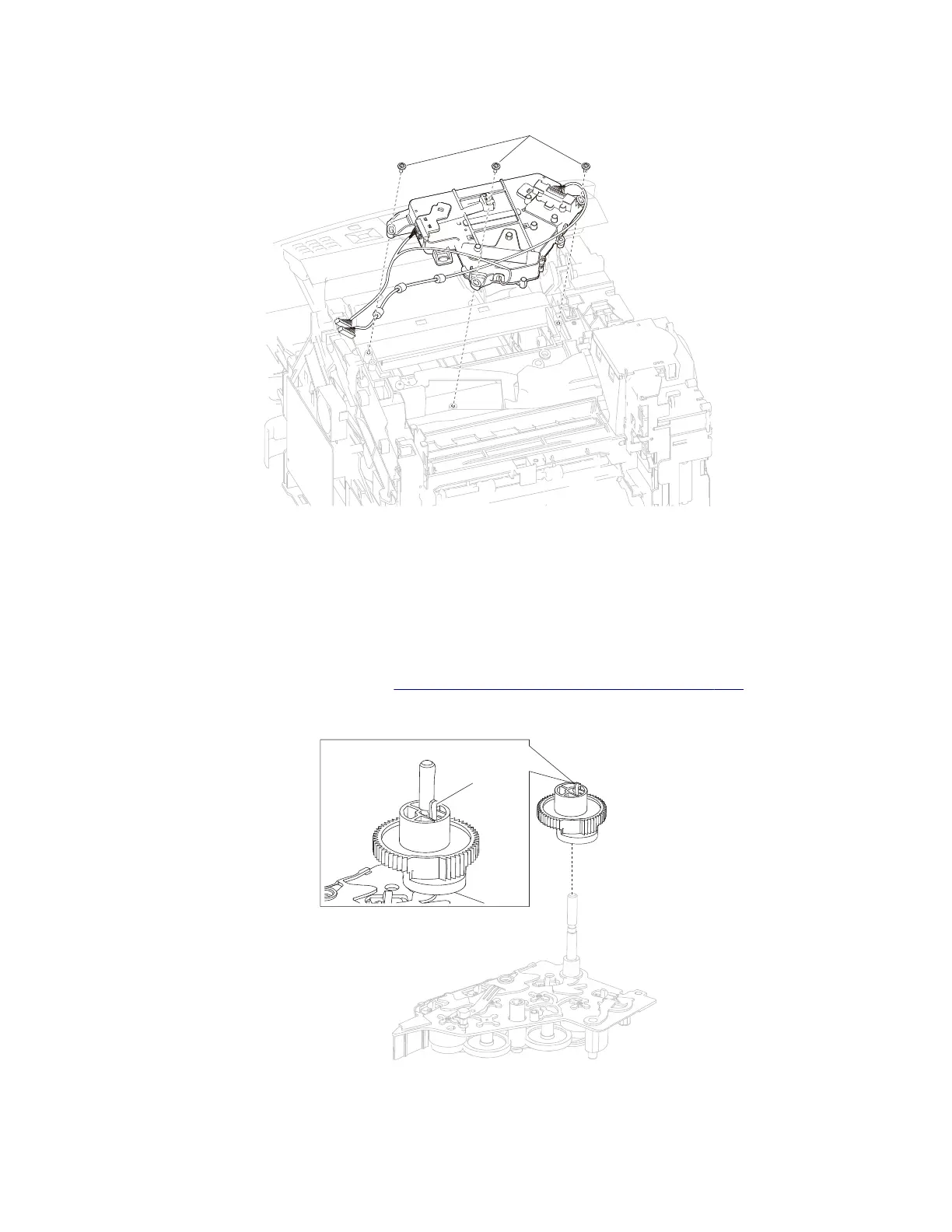

5 Remove the four screws (C) securing the printhead assembly to the machine.
C
6 Remove the printhead assembly.
Installation warning: When replacing the printhead assembly, ensure that the printhead skew is properly
adjusted, or print quality issues will occur.
MPF cam gear removal
1 Remove the alignment assembly. Go to “Output cover assembly removal” on page 333.
2 Release the hook (A) securing the gear to the unit.
A
3 Remove the MPF cam gear.
4062
Repair information
337
