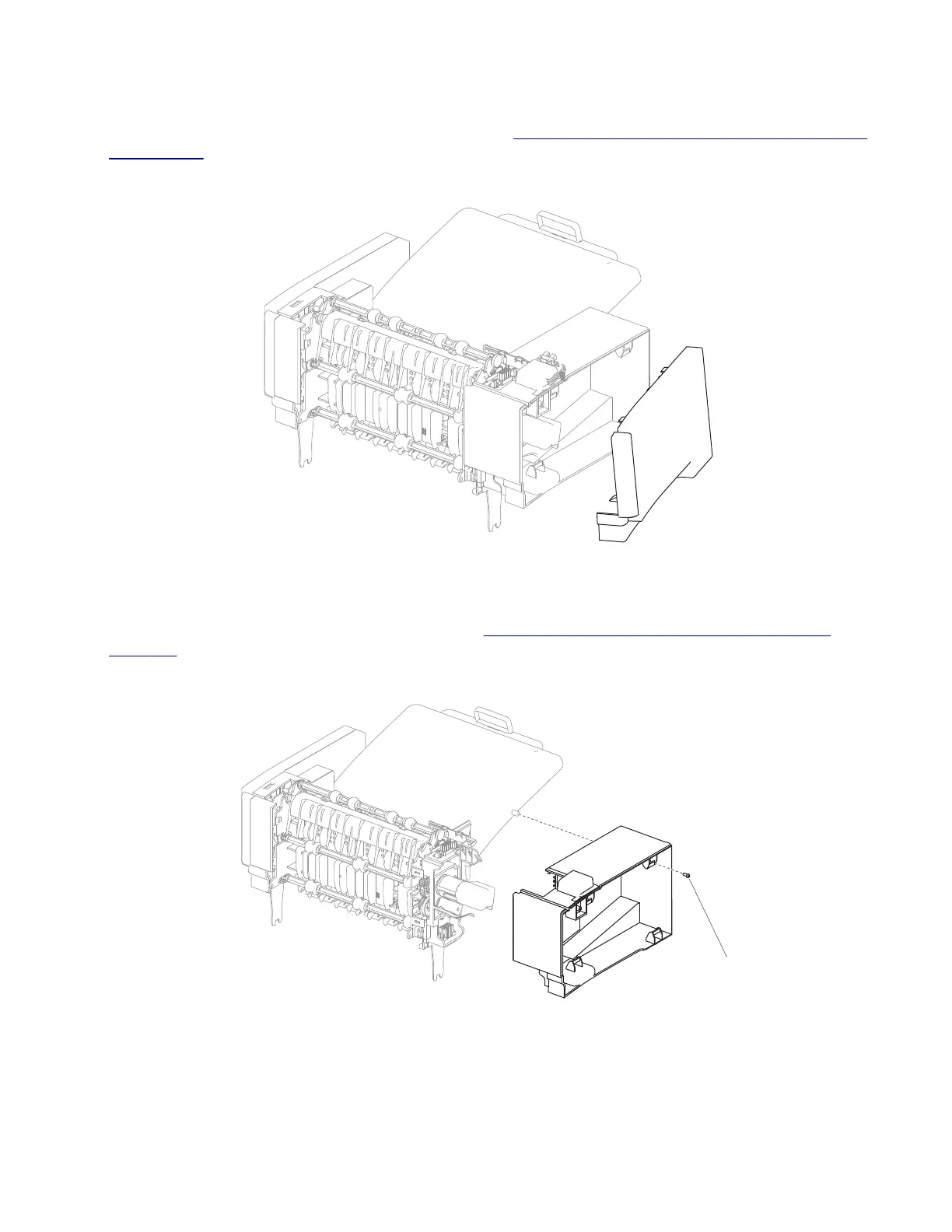

Output expander left outer cover removal
1 Remove the output expander rear door assembly. Go to “Output expander rear door assembly removal”
on page 420.
2 Grasp the lower rear corner of the left outer cover and pull out to remove.
Output expander left inner cover removal
1 Remove the output expander left outer cover. Go to “Output expander left outer cover removal” on
page 421.
2 Remove the screw (A) securing the left inner cover.
A
3 Holding the rear of the left inner cover, pull out while simultaneously separating it from the option.
