SFP stapler assembly left cover removal

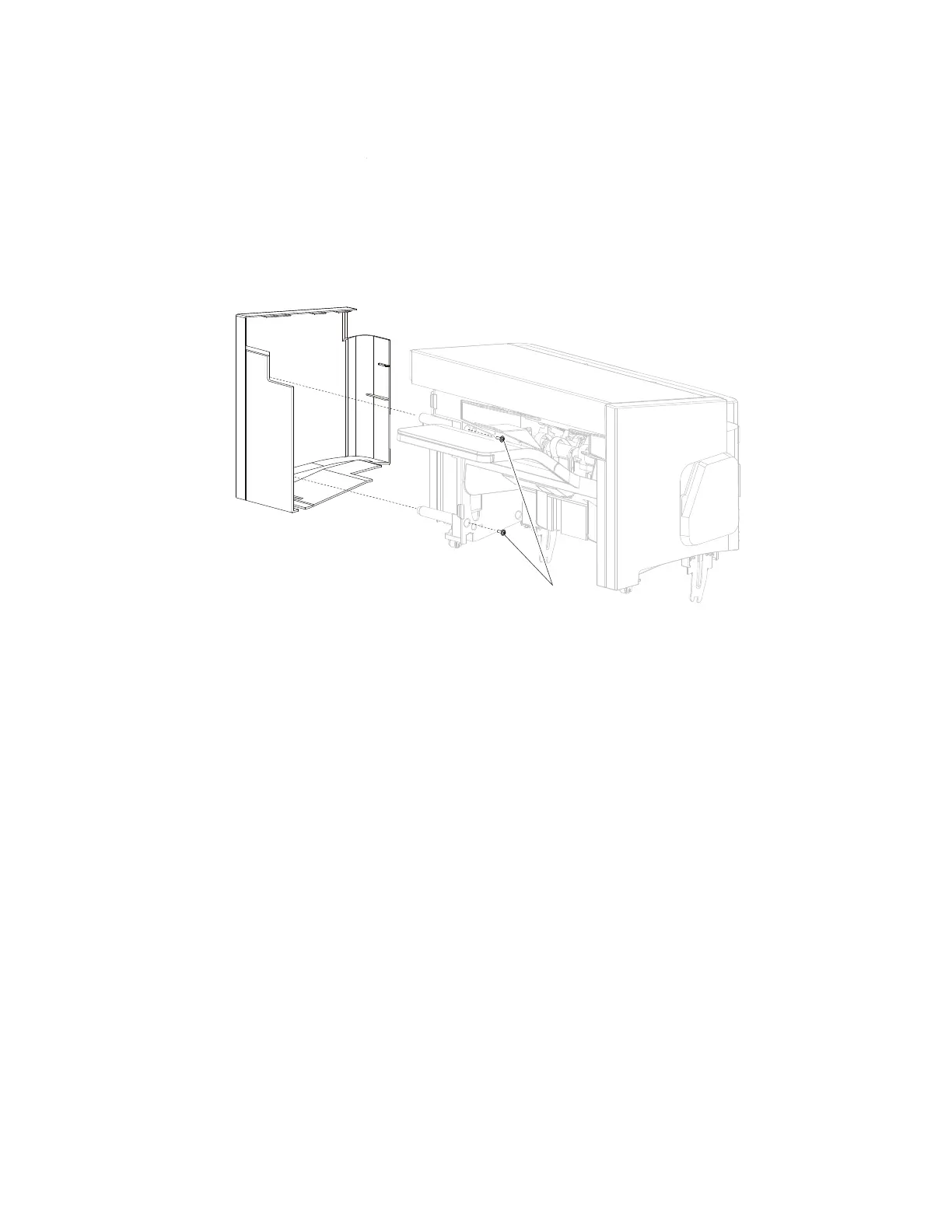

1 Remove the two screws (A) on the inside of the exit bin compartment securing the left cover.
A
2 Pull out on the front side of the left cover to disengage the tabs.
3 Remove the left cover.
4062
Repair information
433
