lift mast so that an excessive load cannot be
raised beyond this first stage.
3
Display_e0061a

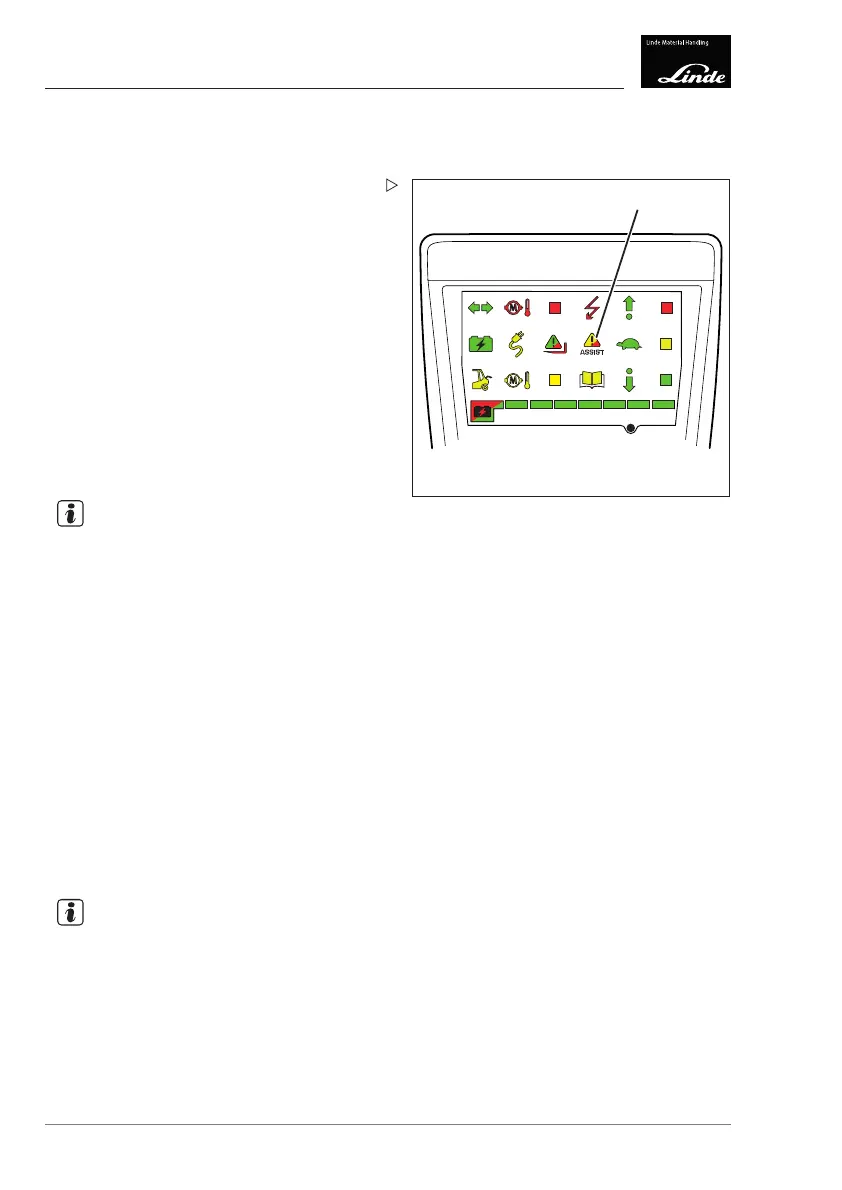

During the intervention, the red warning light
for the assistance system (3) flashes. In
addition, the buzzer sounds.
The intervention will persis
t until the load is
reduced.
Operation after triggering:
Lowering is possible at any time without
restriction.
Lower the fork carriage.
The red warning light for the assistance
system (3) goes out.
Reduce the load in accordance with the
load capacity diagram.
NOTE
If lifting was stopped by the assistance func-
tion, the load can be raised out of a critical
area for approx. one second. To do this, move
the joystick to the neutral position. Repeat the
process as many times as necessary.
"Lifting and tilting limitation" assistance
function
The "lifting and tilting limitation" assistance
function reduces the lifting and tilting speed
in critical situations that could lead to the
truck tipping over. For a standard lift mast, the
assistance function is active above a preset
lift height (between 1.80 m and 2.20 m). For
duplex or triplex lift masts, the assistance
function is active above the first stage of the lift
mast.
NOTE
If the truck is switched off immediately after
the assistance function has intervened (switch
key turned to the zero position, emergency
off switch actuated), the load-dependant
assistance system can fail when the truck is
switched back on. Therefore, after switching
the truck on, perform a lifting procedure
