262334 177 Revision A

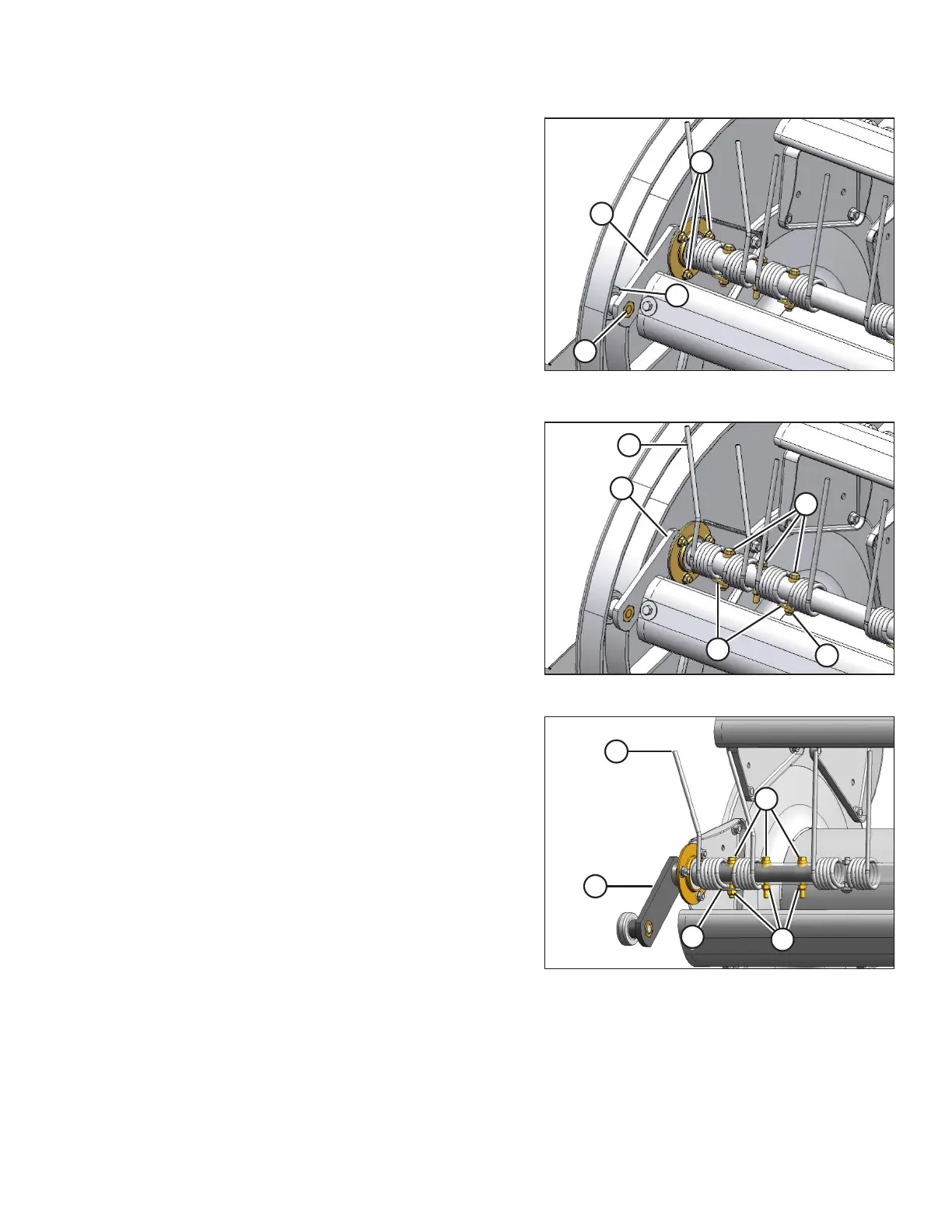

Figure 4.88: Cam Follower
2. Remove cam follower bearing bolt (A), bearing (B), and nut.
3. Disengage cam arm (C) from the cam track with a pry bar.
4. Remove flangette mounting bolts (D).
Figure 4.89: Tine Bar Type B
Figure 4.90: Tine Bar Type A
A - Nuts B - Keepers
C - Shoulder Bolts D - Cam Arm Assembly
E - End Tines
5. Remove nuts (A), keepers (B), and shoulder bolts (C) that
connect cam arm (D) and end tines (E) to the tine bar.
IMPORTANT:
The tine attachment hardware and the configuration may
vary between Tine Bar Type A and Tine Bar Type B. Identify
the locations so that the tine hardware will be reinstalled at
the same locations. Both Tine Bar Type A and Tine Bar Type
B configurations are required to stagger the tines on the
reel bat and ensure all of the crop is picked up.
6. Position the end of the tine bar clear of the cam disc, then
remove cam arm assembly (D), complete with bearing
assembly.
MAINTENANCE AND SERVICING
