262334 178 Revision A

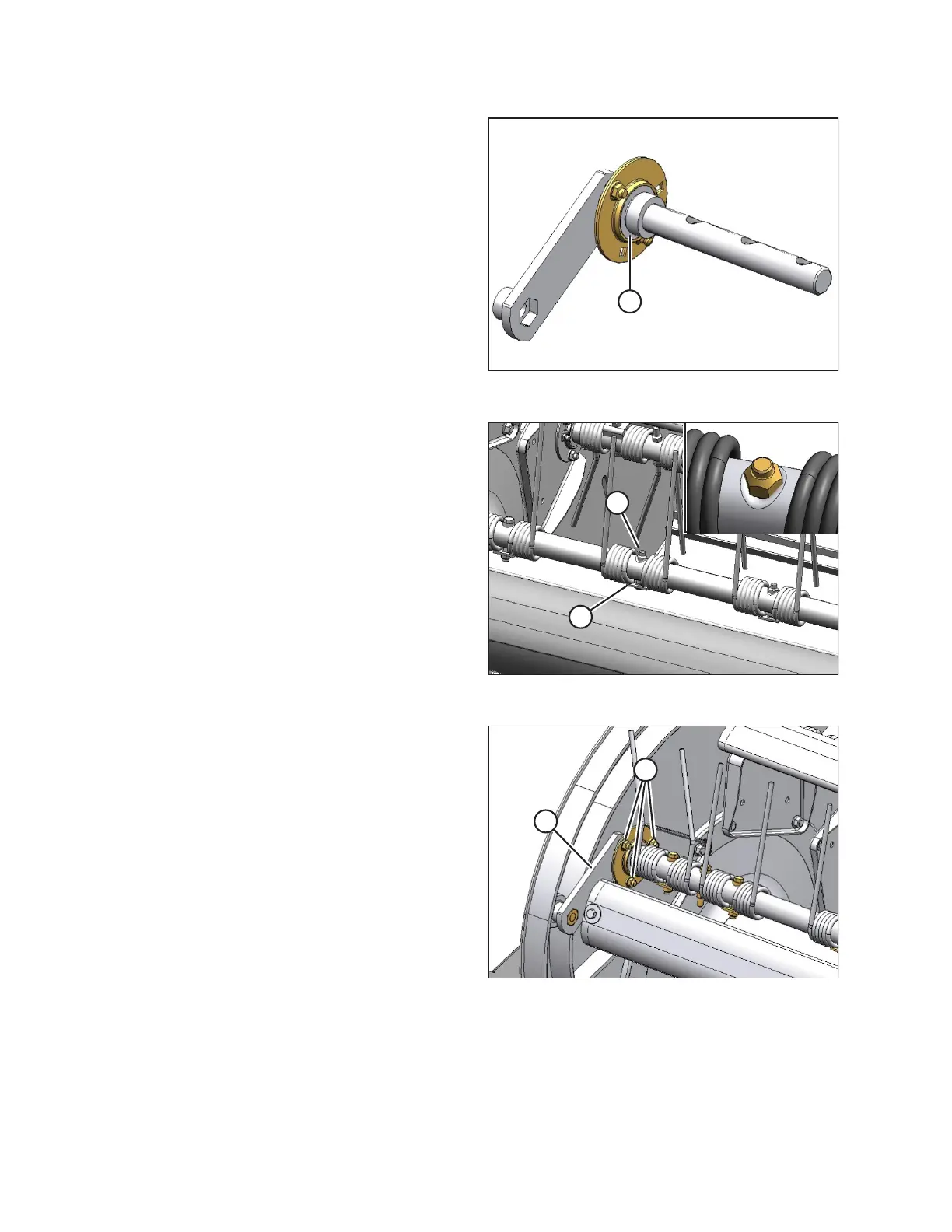

Figure 4.91: Cam Arm Assembly
7. Replace bearing (A). Refer to 4.6.3 Installing Sealed
Bearings, page 141.
Figure 4.92: Tine Installation
8. Replace the tines as follows:
a. Remove bolt (A) and keeper (B) on tine to be replaced.
b. Remove the bolts and the keepers on the tines as
required to facilitate the replacement of the damaged
or worn tine.
c. Slide the tines off the tine bar.
d. Install the replacement tine on the tine bar and secure
with bolt (A) and keeper (B). Install the nut with the
flat side against the tine bar.
e. Slide the remaining tines onto the tine bar and attach
them to the tine bar. Do NOT install the bolts in the
end tines at this time.
Figure 4.93: Cam End Tine Bar
9. Install cam arm assembly (A), complete with bearing onto
the tine bar.
10. Engage cam arm (A) into the cam track as shown.
11. Attach bearing flangettes with bolts (B). Tighten the bolts to
31–36 Nm (23–26 lbf·ft).
12. Lock the bearing.
MAINTENANCE AND SERVICING
