262334 194 Revision A

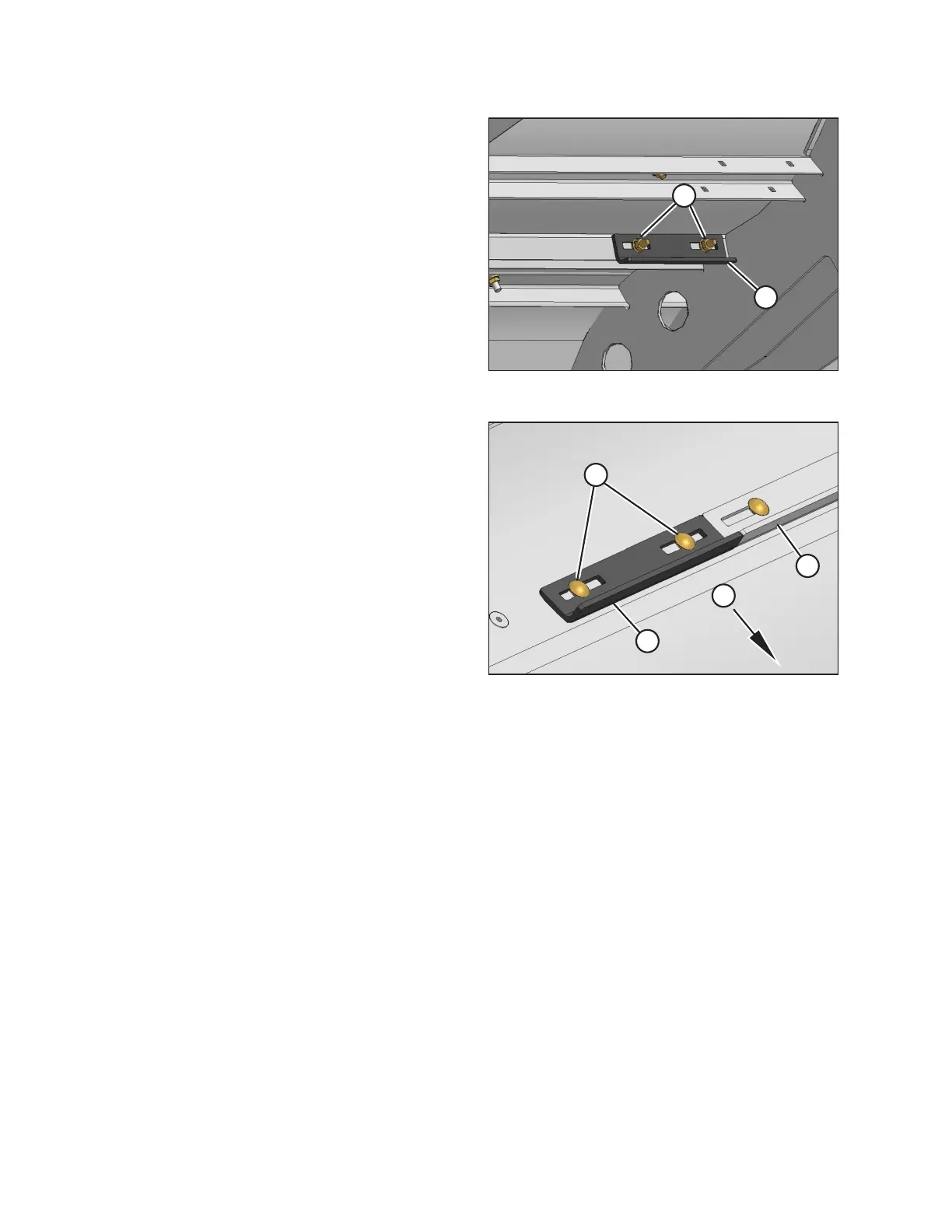

Figure 4.126: Stripper Bar Extension
2. Raise the header, and engage the safety props.
3. Remove the nuts and carriage bolts (A) securing two
extensions (B) to the underside of the header pan support.
Retain the hardware for reinstallation.
Figure 4.127: Stripper Bar Extension
A - Stripper Bar Extension B - Stripper Bar
C - Carriage Bolts D - Forward
4. Position extension (A) at the inboard end of the front
stripper bars, and mark the locations of the two holes onto
the pan.
5. Drill two 8 mm (5/16 in.) holes at these locations.
6. Install extension (A) with carriage bolts (C) retained from
Step 3, page 194.
7. Repeat the steps above for the other extension.
MAINTENANCE AND SERVICING
