262334 45 Revision A

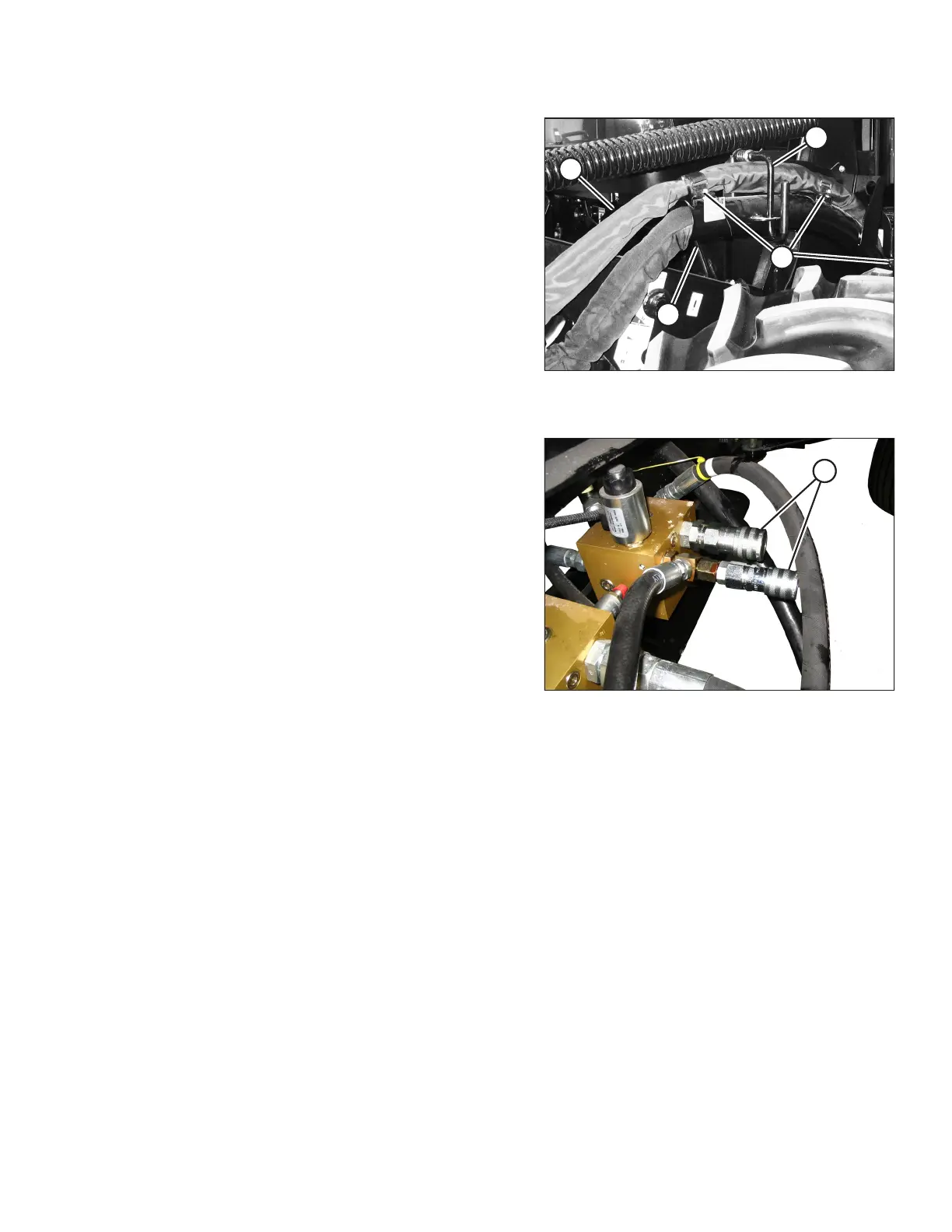

Figure 3.34: Auger Return and Reel Pressure
Hose Bundle
13. Route the auger return and reel pressure hose bundle (A)
from the header to the windrower, and position the bundle
above existing hose support (C) as shown.
14. Secure the bundle with three straps (D), and lower
lever (B).
Figure 3.35: Valve Block Configuration
15. If valve blocks are NOT configured as shown (A), install the
required fittings as described in the unloading and
assembly instructions that were supplied with your A40D
Auger Header.
OPERATION
