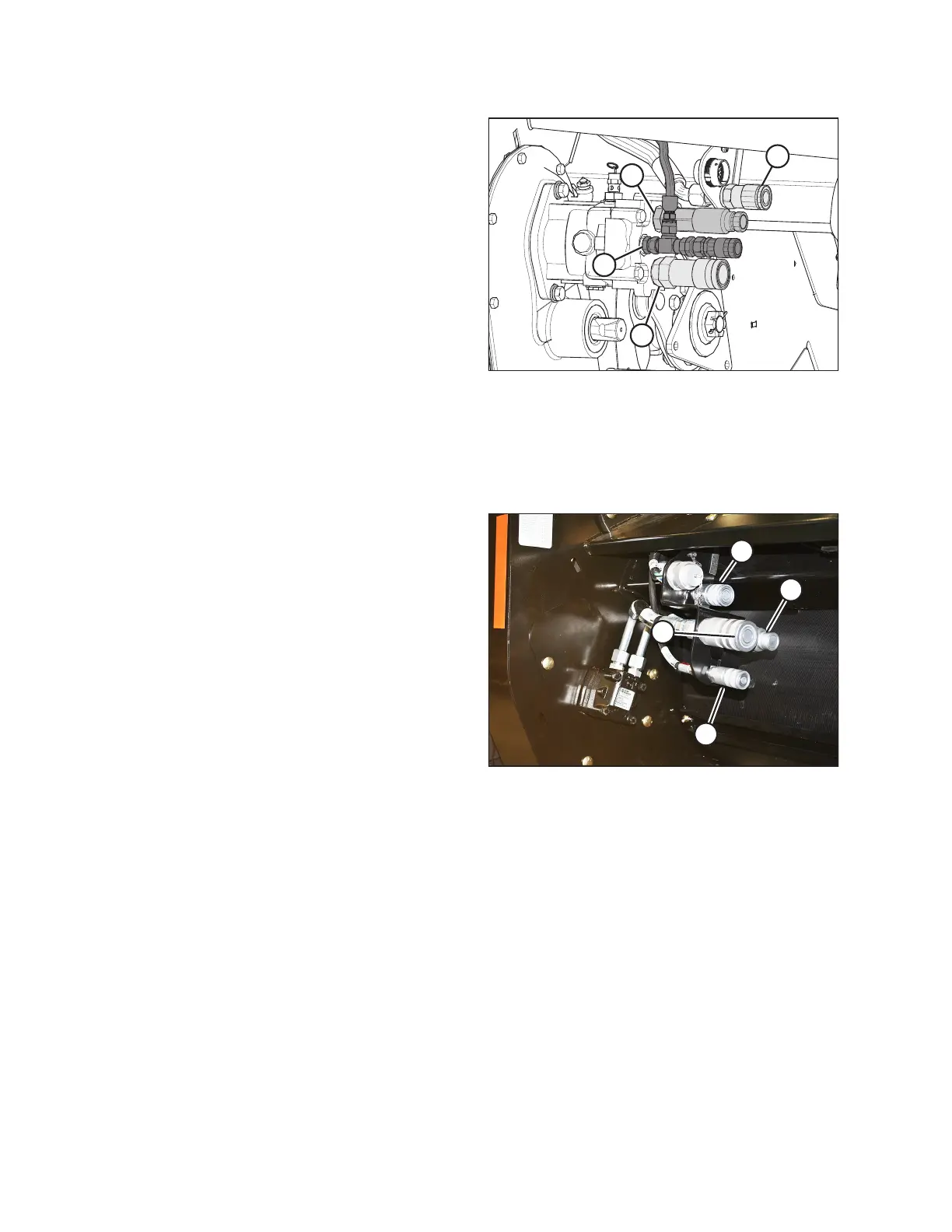

Figure 3.46: A40D Header – 4.3 m and 4.9 m (14 ft.
and 16 ft.) Header Shown (5.5 m [18 ft.] Header
Similar)
A - Reel Pressure
B - Knife and Conditioner Return
C - Case Drain
D - Knife and Conditioner Pressure
1012179
A
B
C
D
Figure 3.47: Grass Seed Header Hose Connectors
A - Reel and Auger Pressure
B - Knife and Conditioner Return
C - Case Drain
D - Knife and Conditioner Pressure
12. Push the hose connectors onto the mating receptacles as
shown until the collars on the receptacles snap into the
lock position.
NOTE:
The hoses attached to the connectors are not shown in the
illustrations at right.
