262334 51 Revision A

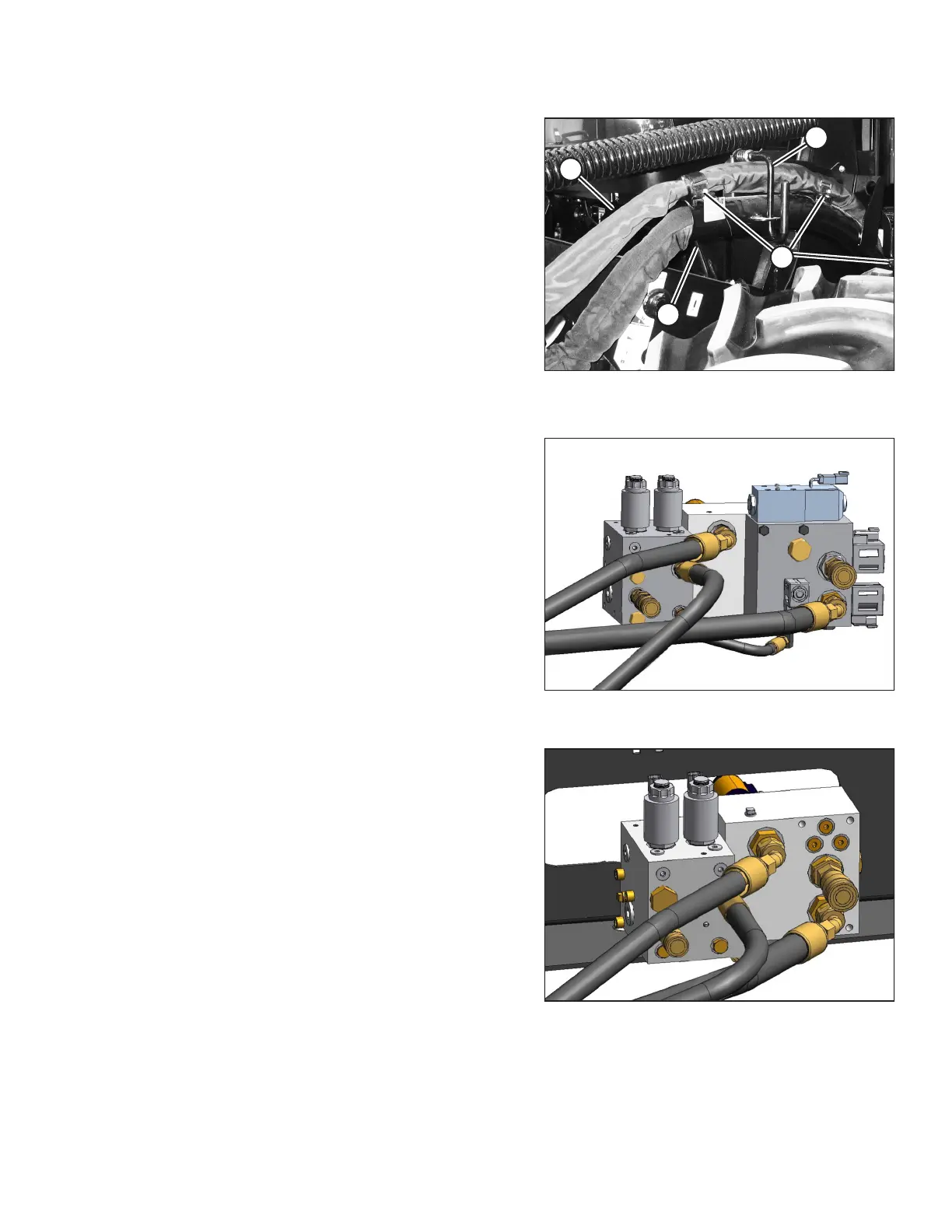

Figure 3.48: Auger Return and Reel Pressure
Hose Bundle
13. Route the auger return and reel pressure hose bundle (A)
from the header to the windrower and position the bundle
above existing hose support (C) as shown.
14. Secure the bundle with three straps (D), and lower
lever (B).
Figure 3.49: M150/M155/M155E4 with
Reverser Valve
Figure 3.50: M150/M155/M155E4 without
Reverser Valve
15. If valve blocks are NOT configured as shown at right, install
the required fittings as described in the A40D and A40DX
Auger Header Unloading and Assembly Instructions, which
were supplied with your A40D Auger Header.
