MacDon A40D - Page 70

262334 52 Revision A
1005272
A
B

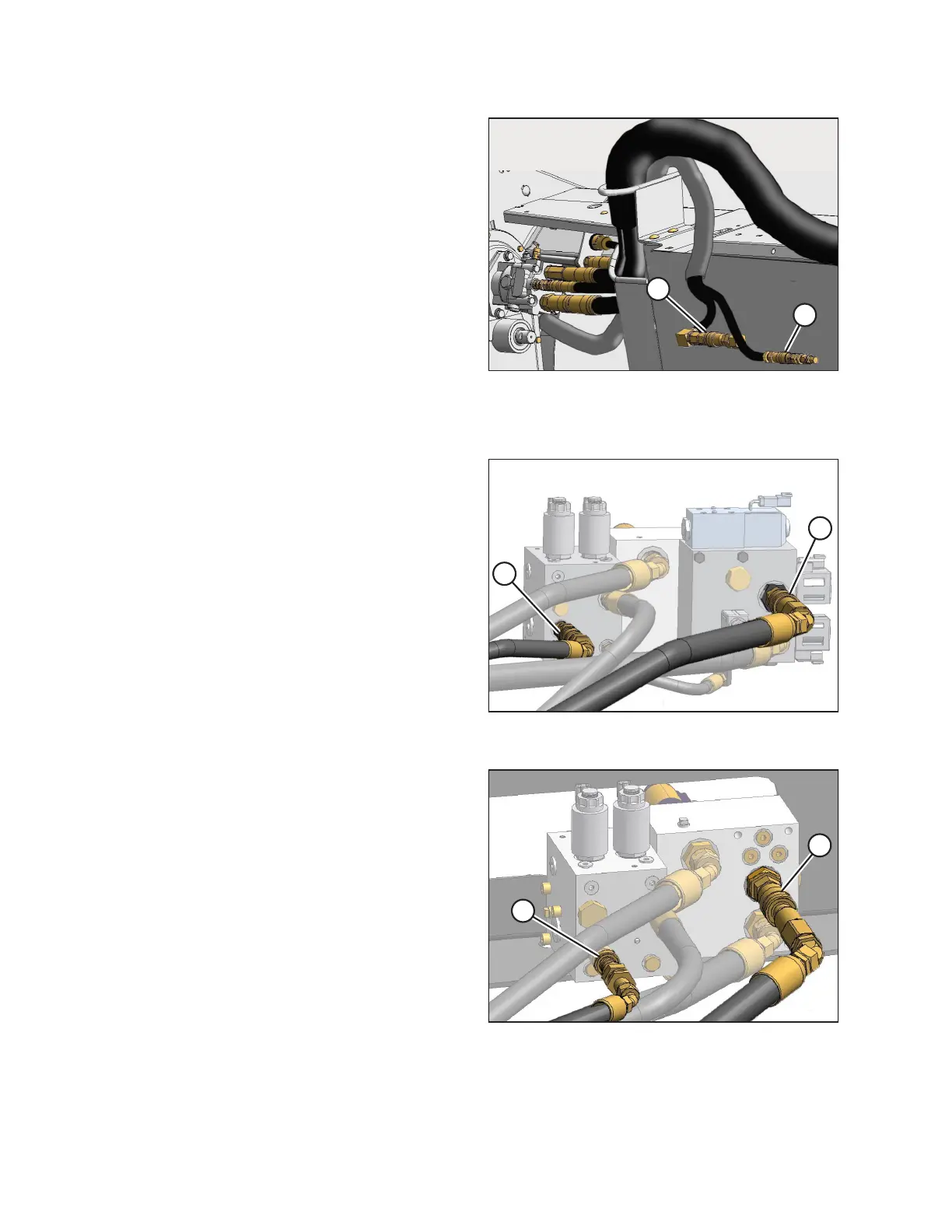

Figure 3.51: Auger Pressure and Auger/Reel Return
Hose Couplers – 4.3 m and 4.9 m (14 ft. and 16 ft.)
Header Shown (5.5 m [18 ft.] Header Similar)
16. Locate auger pressure (A) and auger/reel return (B) hoses.
17. Proceed to 3.5.5 Configuring Reverser Valve Jumper Hose
for A40D Auger Header, page 64.
1005275
A
B
Figure 3.52: M150/M155/M155E4 with
Reverser Valve
1005274
A
B
Figure 3.53: M150/M155/M155E4 without
Reverser Valve
18. Push auger pressure (A) and auger/reel return (B) hose
couplers onto the mating receptacles on the valve block
until the collar on the receptacle snaps into the lock
position.
OPERATION
