MacDon A40D - Page 80

262334 62 Revision A
1012152
A
B
C
D

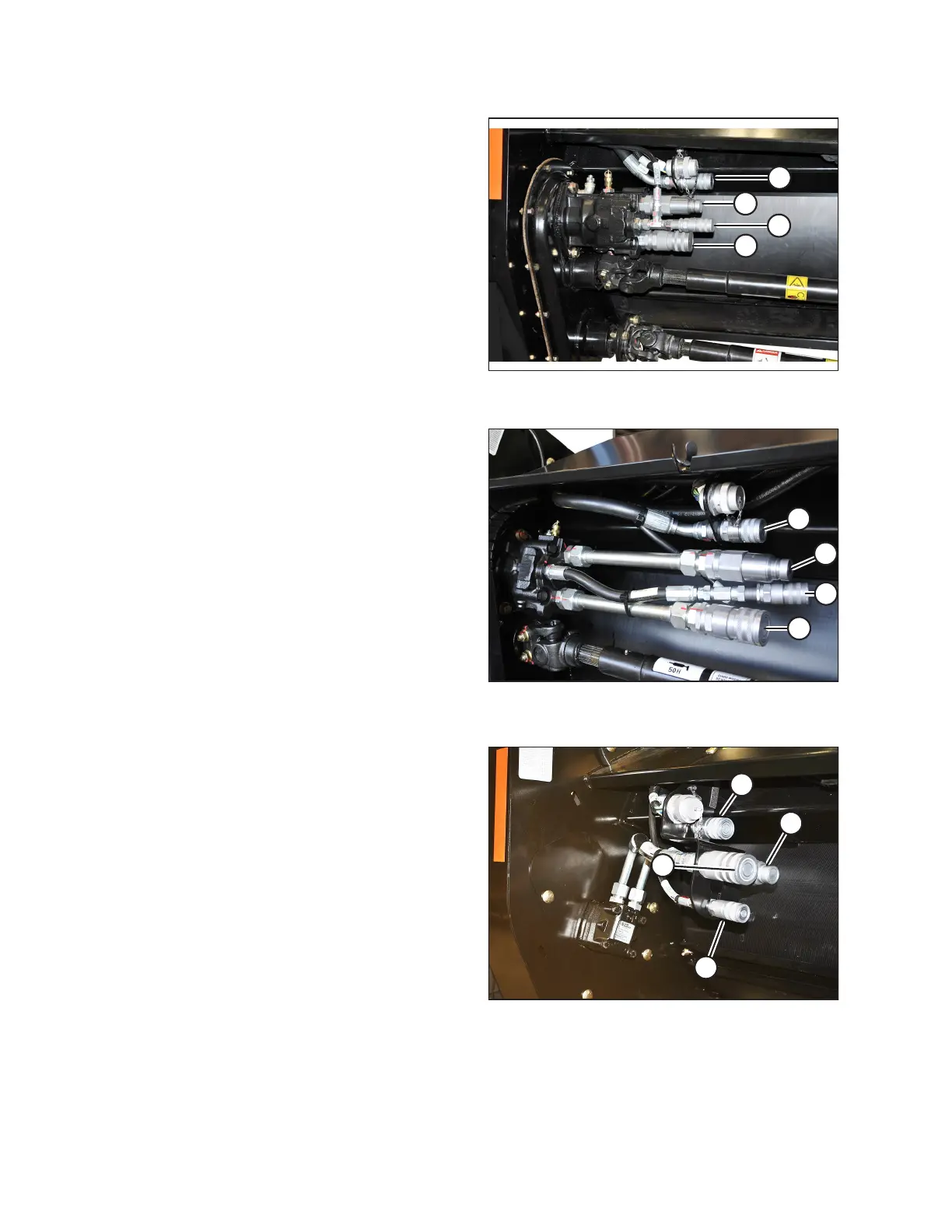

Figure 3.75: A40D Hose Connections – 4.9 m (16 ft.)
Header Shown
1010962
A
B
C
D
Figure 3.76: A40D Hose Connections – 5.4 m (18 ft.)
Header Shown
12. A40D standard headers: Push the following hose
connectors onto the mating receptacles as shown until the
collars on the receptacles snap into lock position:
• Reel/auger pressure (A)
• Knife and conditioner return (B)
• Case drain (C)
• Knife and conditioner pressure (D)
1012179
A
B
C
D
Figure 3.77: A40D GSS Hose Connections – 4.9 m
(16 ft. header)
13. A40D GSS headers: Push the following hose connectors
onto the mating receptacles as shown until the collars on
the receptacles snap into lock position:
• Reel/auger pressure (A)
• Knife and conditioner return (B)
• Case drain (C)
• Knife and conditioner pressure (D)
OPERATION
