MacDon A40D - Page 85

262334 67 Revision A
1023843

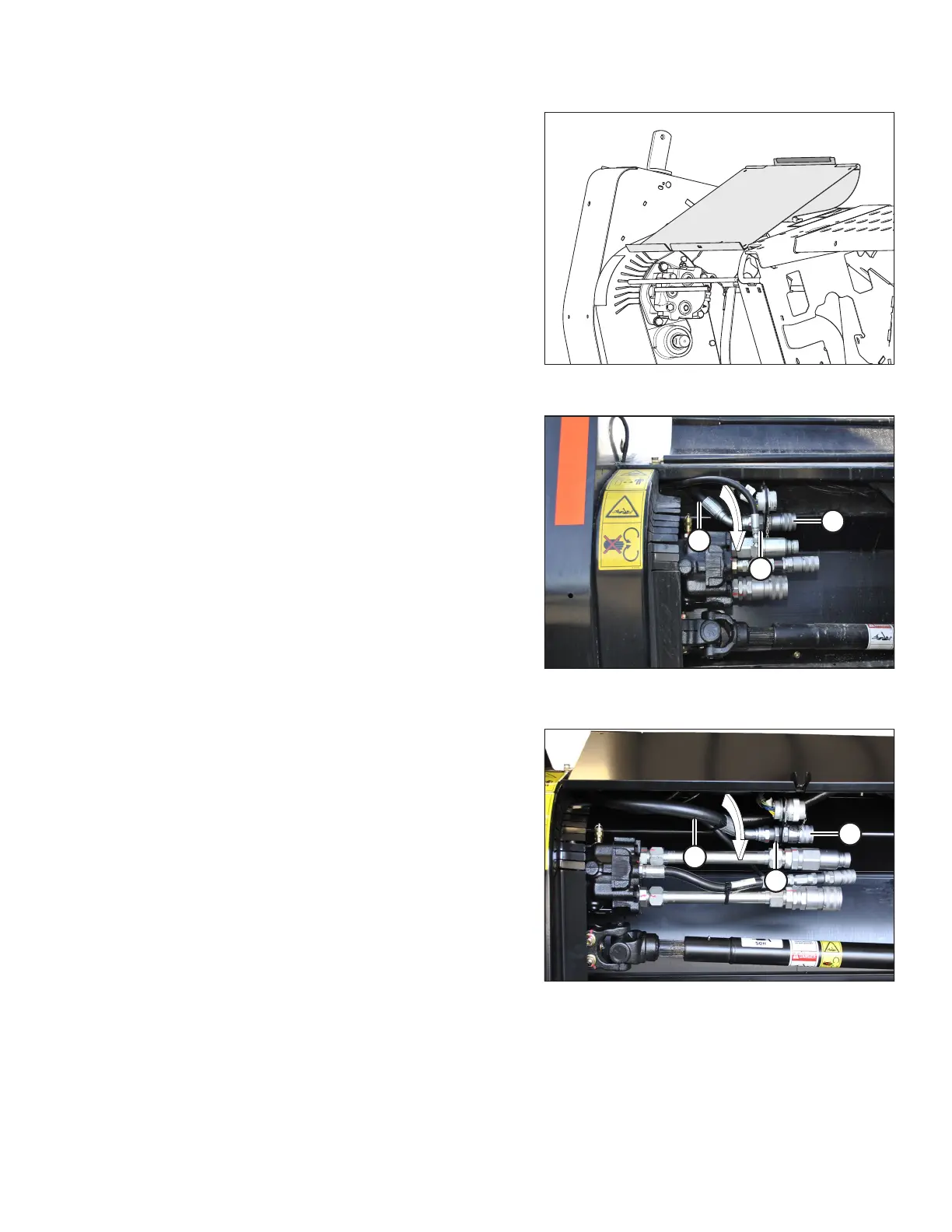

Figure 3.87: Driveshield Open
The driveshield is shown in the open position.
1010971
A
B
C
Figure 3.88: Auger and Reel Pressure Coupler and
Hose – 4.9 m (16 ft.) Header Shown
1010730
A
B
C
Figure 3.89: Auger and Reel Pressure Coupler and
Hose – 5.5 m (18 ft.) Header Shown
5. Loosen bulkhead nut (A) on auger and reel pressure
coupler (B). This allows auger and reel pressure hose (C) to
rotate freely.
OPERATION
