MacDon A40D - Page 86

262334 68 Revision A
1031336
A
B
C
D
DD

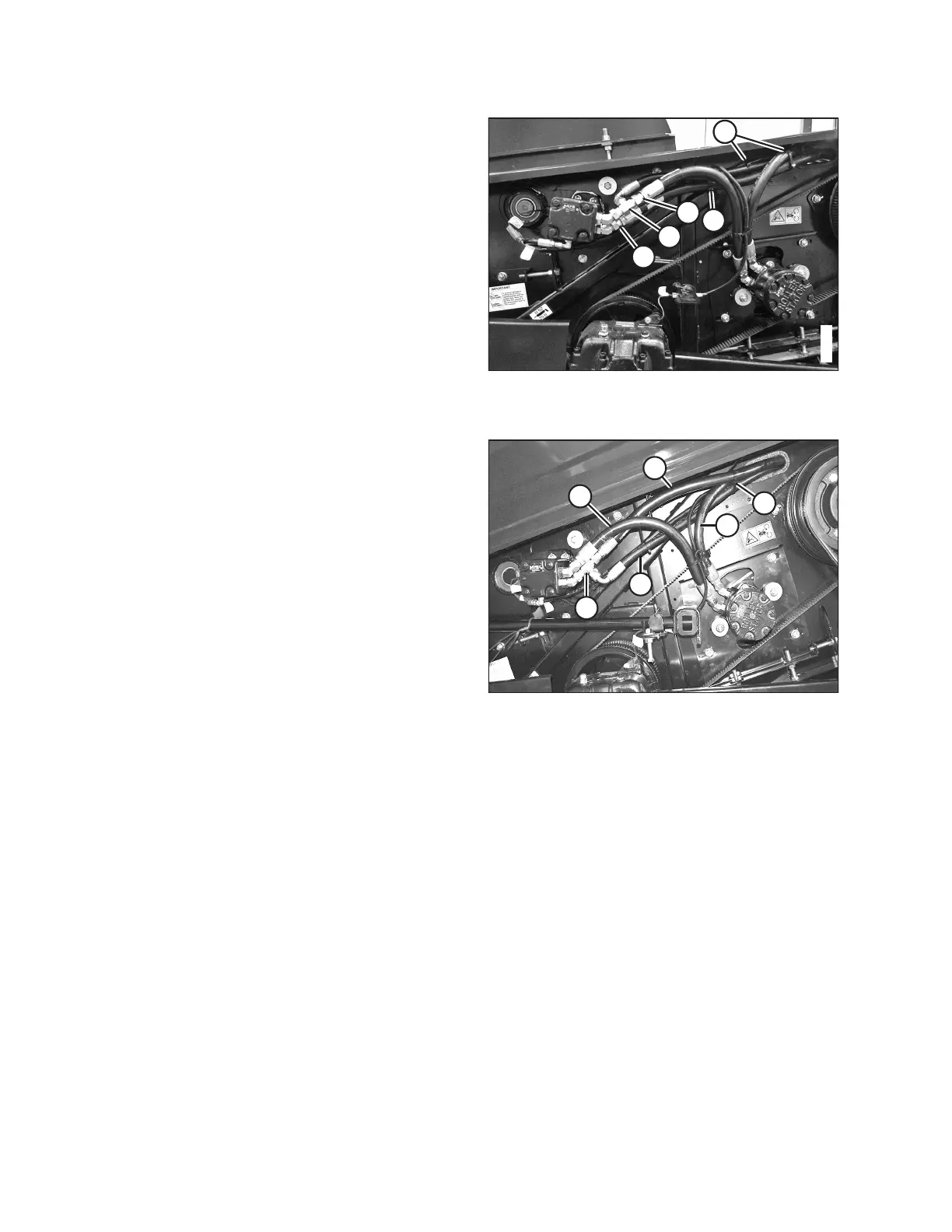

Figure 3.90: Factory Configuration – M150, M155,
M155E4, and M200
6. Disconnect the hoses as follows:
a. Disconnect hose (A) from tee (B).
b. Disconnect tee (B) from the reel motor upper port.
c. Disconnect hose (C) from the reel motor lower port.
7. Cut cable ties (D) at locations shown in the illustration.
1010927
A
B
C
D
E
F
Figure 3.91: Adjusted Configuration – M100, M105,
and M205
8. Reconnect the hoses as follows:
a. Reroute hose (E) behind hose (A) and (F) to hose (C)
and connect tee (B) to the lower port fitting.
b. Reroute hose (C) above hose (E) and (F) and connect
hose (C) to tee (B). Tighten hose (C).
c. Loosen the 45° fittings at both ports. This allows room
for wrenches when tightening tee (B) to the lower port.
d. Connect hose (A) to the upper port fitting as shown
and check the orientation of the 45° fitting.
NOTE:
Ensure that hose (A) is routed in front of hose (C) and
hose (E).
e. Confirm the orientation of the upper port 45° fitting,
back-off tee (B), and tighten the upper port fitting in
the position determined. Tighten hose (A).
f. Check the orientation of the lower port 45° fitting and
tighten it.
g. Connect tee (B) to the lower port 45° fitting and
tighten it.
OPERATION
