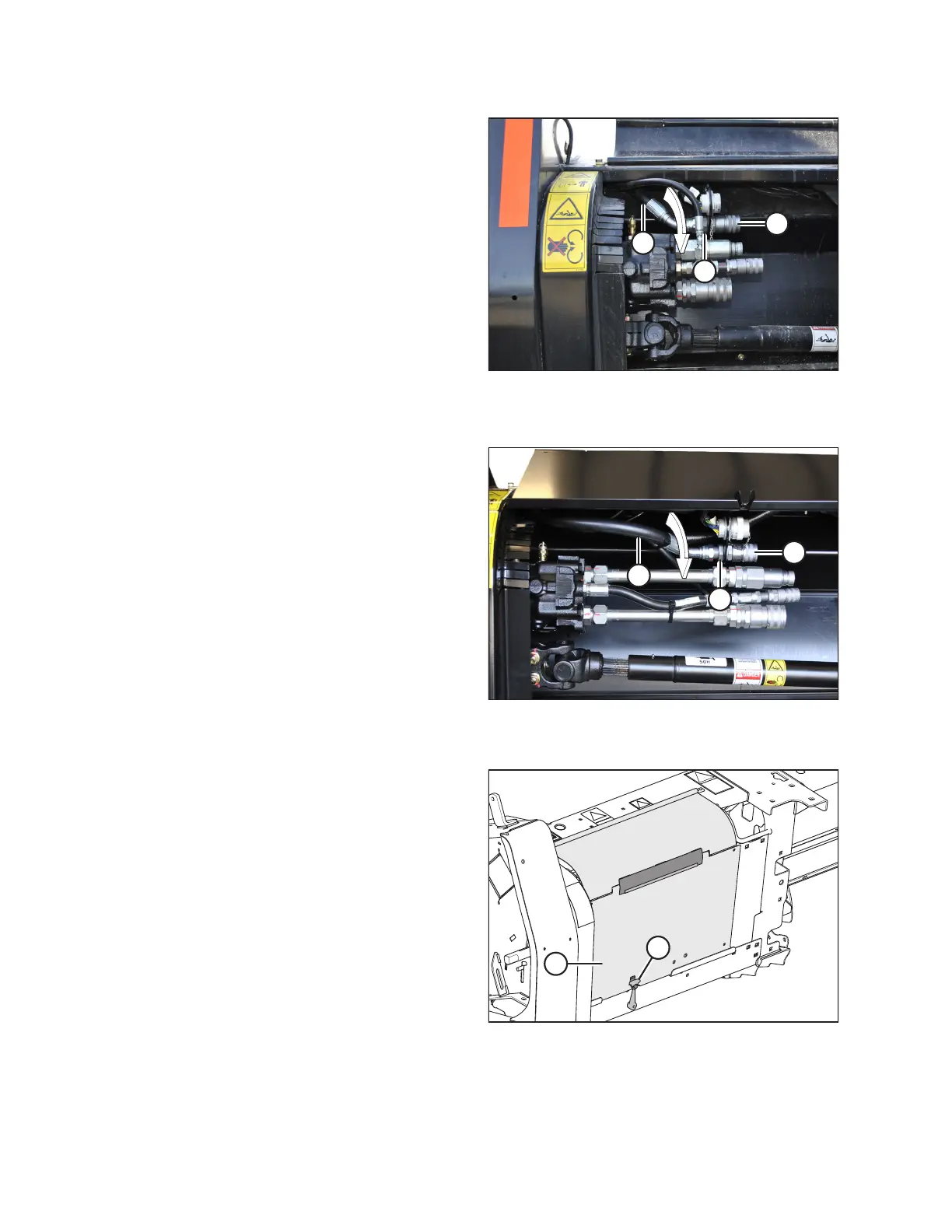

Figure 3.93: Auger and Reel Pressure Coupler and
Hose – 4.3 m and 4.9 m (14 ft. and 16 ft.)
Header Shown
1010730
A
B
C
Figure 3.94: Auger and Reel Pressure Coupler and
Hose – 5.5 m (18 ft.) Header Shown
13. Rotate coupler (B) and hose (C) downward as shown until
the slack has been sufficiently reduced. Tighten bulkhead
nut (A).
1023840
A
B
Figure 3.95: Driveshield – Headers Sold in North
America
14. Headers sold in North America: Close driveshield (B) and
engage rubber latch (A).
