MacDon A40D - Page 92

262334 74 Revision A
1009249
A
B

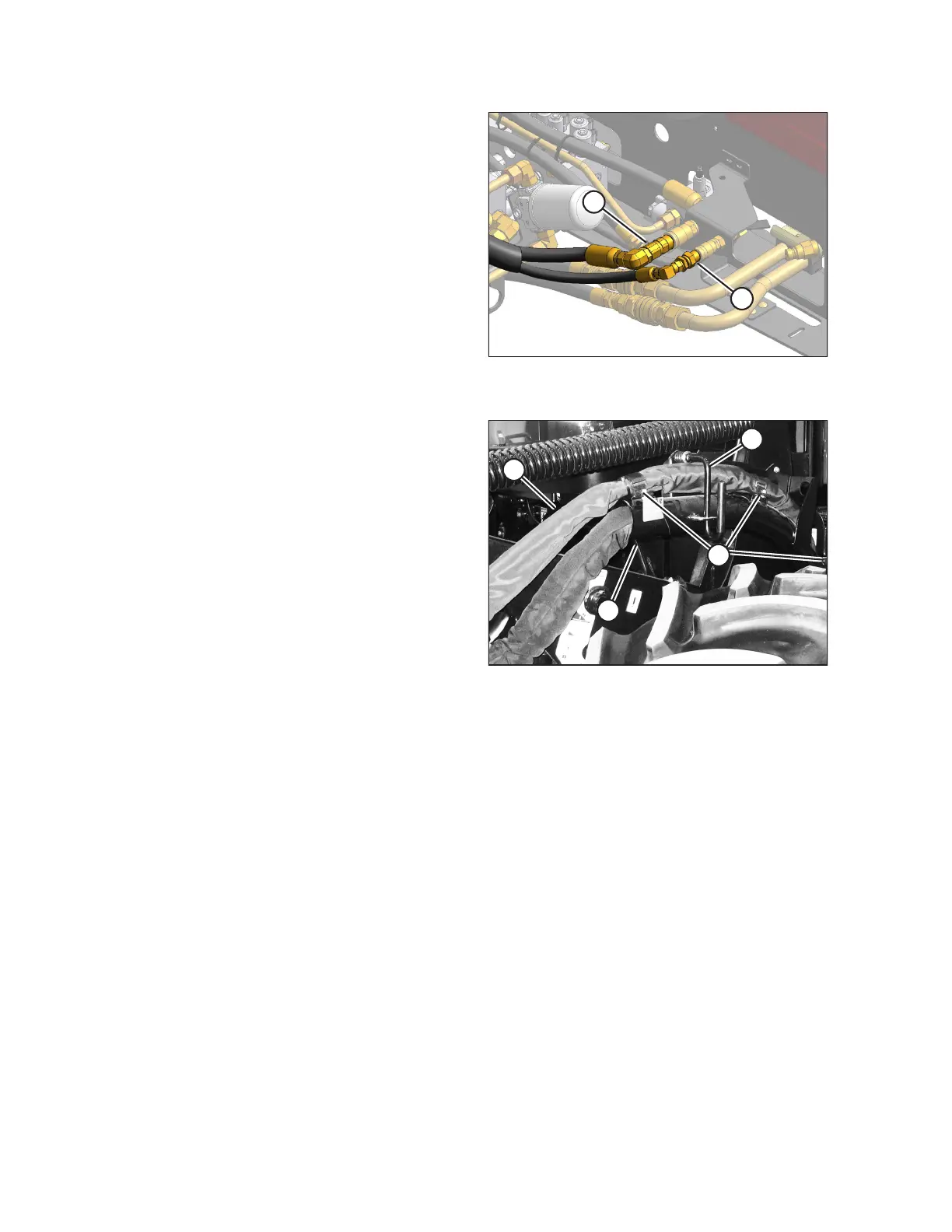

Figure 3.102: M205
1005646
A
B
C
D
Figure 3.103: Hose Bundle
3. Raise lever (B) on hose support (C), and undo three
adjustable straps (D).
4. Move hose bundle (A) to store on the header walkway.
5. Install the caps on the connectors and the hose ends (if
equipped).
OPERATION
