MacDon A40D - Page 93

262334 75 Revision A
1032562
A
B
C
D
E

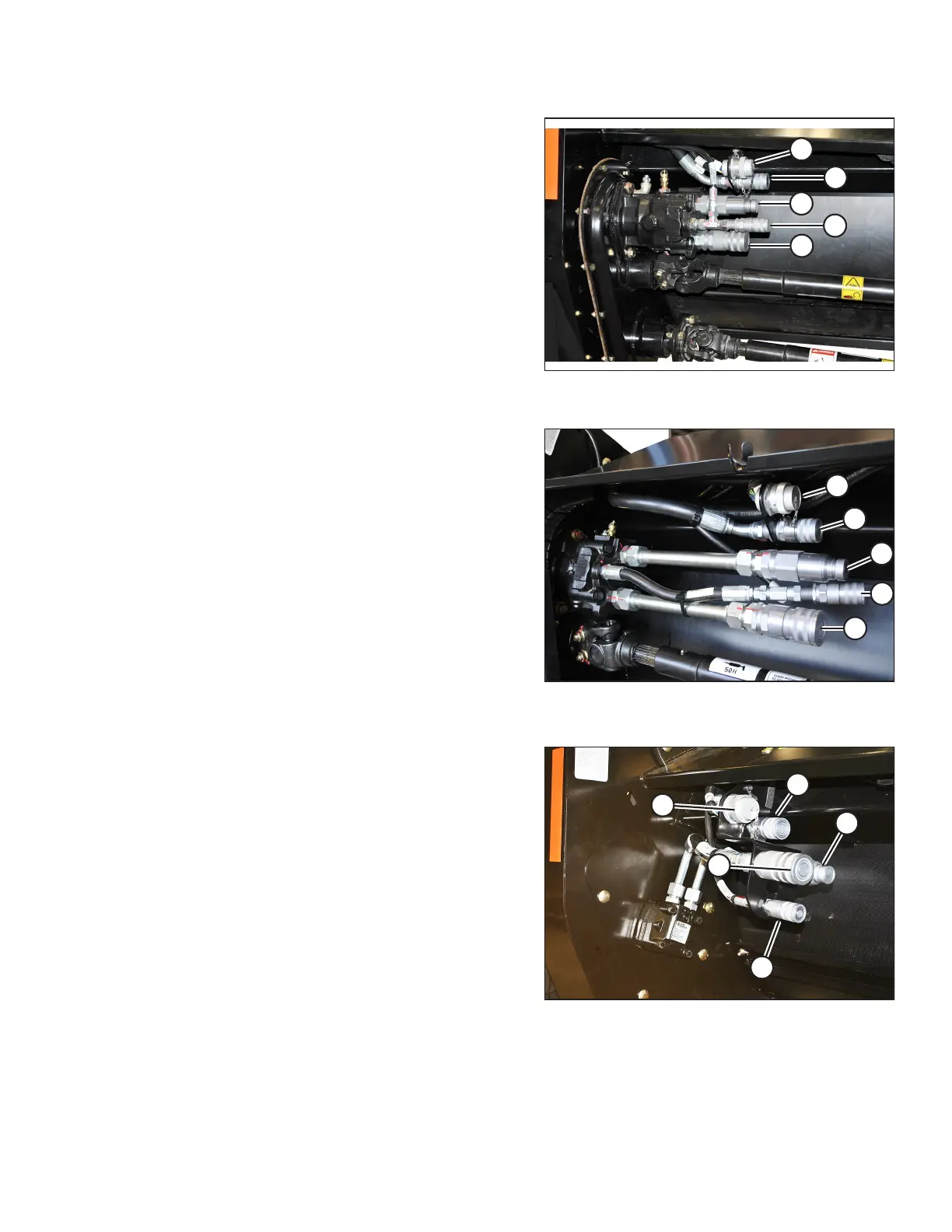

Figure 3.104: A40D Hose Connections – 4.9 m (16 ft.)
Header Shown
1032563
E
A
B
C
D
Figure 3.105: A40D Hose Connections – 5.4 m (18 ft.)
Header Shown
6. A40D standard headers: At the header, disconnect
electrical connector (E) by turning the collar
counterclockwise, and pulling the connector to disengage.
Disconnect the hoses from the following hoses:
• Reel/auger pressure (A)
• Knife and conditioner return (B)
• Case drain (C)
• Knife and conditioner pressure (D)
1032561
E
A
B
C
D
Figure 3.106: A40D GSS Hose Connections – 4.9 m
(16 ft. header)
7. A40D GSS headers: At the header, disconnect electrical
connector (E) by turning collar counterclockwise, and
pulling the connector to disengage. Disconnect the hoses
from the following hoses:
• Reel/auger pressure (A)
• Knife and conditioner return (B)
• Case drain (C)
• Knife and conditioner pressure (D)
OPERATION
