262334 76 Revision A

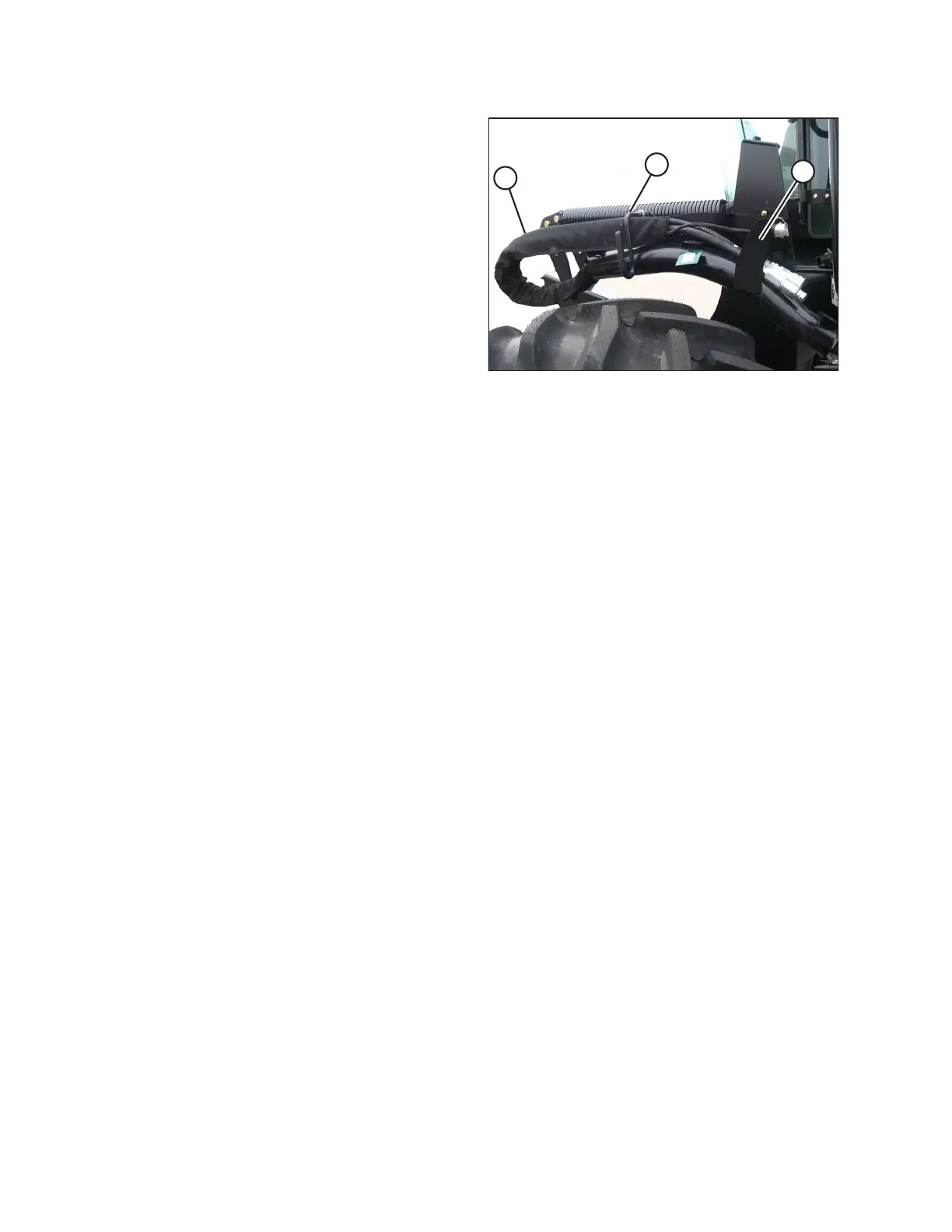

Figure 3.107: Hose Bundle Storage
8. Move hose bundle (A) from the header, and position it on
the left of the windrower with the hose ends in support (B)
and under lever (C).
9. Rotate lever (C) clockwise, and push it to engage the
bracket.
10. Position the electrical harness through support (B), and
attach the cap to the electrical connector.
11. Close the driveshield, and move the windrower platform to
the closed position.
12. Check to ensure the hoses and the electrical harness clear
the tire.
13. Detach the header from the windrower. For instructions,
refer to your windrower operator’s manual.
OPERATION
