CONTROL SYSTEM
01–40–45
01–40
SECONDARY SHUTTER VALVE (SSV) SWITCH CONSTRUCTION/OPERATION
CHU014018660S02
• The SSV switch is installed on the position close
to the SSV actuator.
• When the SSV is closed, the SSV switch contact
closes (ON) and the PCM detects a voltage of 0
V. When the SSV is open, the SSV switch contact
opens (OFF) and the PCM detects a voltage of 12
V.
End Of Sie
AUXILIARY PORT VALVE (APV) POSITION SENSOR FUNCTION
CHU014018990S03
• The APV position sensor detects the APV fully-closed position to monitor the APV motor operation condition.
End Of Sie
AUXILIARY PORT VALVE (APV) POSITION SENSOR CONSTRUCTION/OPERATION
CHU014018660S03
• The APV position sensor is built into the APV motor.
• The Hall element, used for the sensor, detects the APV fully-closed position and sends a voltage signal to the
PCM.
• When the APV closes, the APV position sensor outputs a voltage of 1.5 V or more.

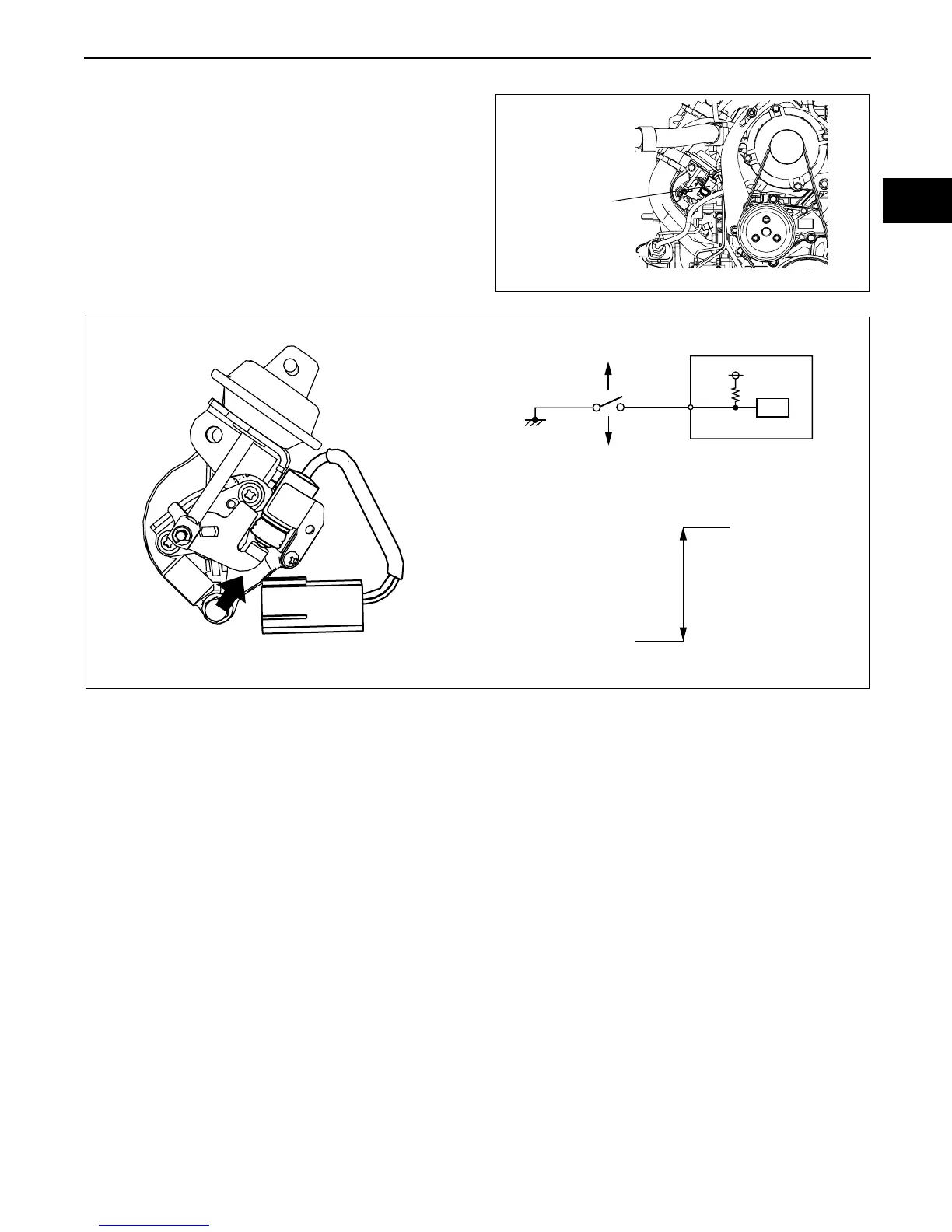

SSV SWITCH
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0140S044
P C M
CPU
12 V
0 V
SSV OPEN
(OFF)
SSV OPEN
(OFF)
SSV CLOSED
(ON)
SSV CLOSED
(ON)
PUSH ON
CHU0140S045
