Mazda RX-8 2004 - Operating; Operation

ANTILOCK BRAKE SYSTEM
04–13–5
04–13

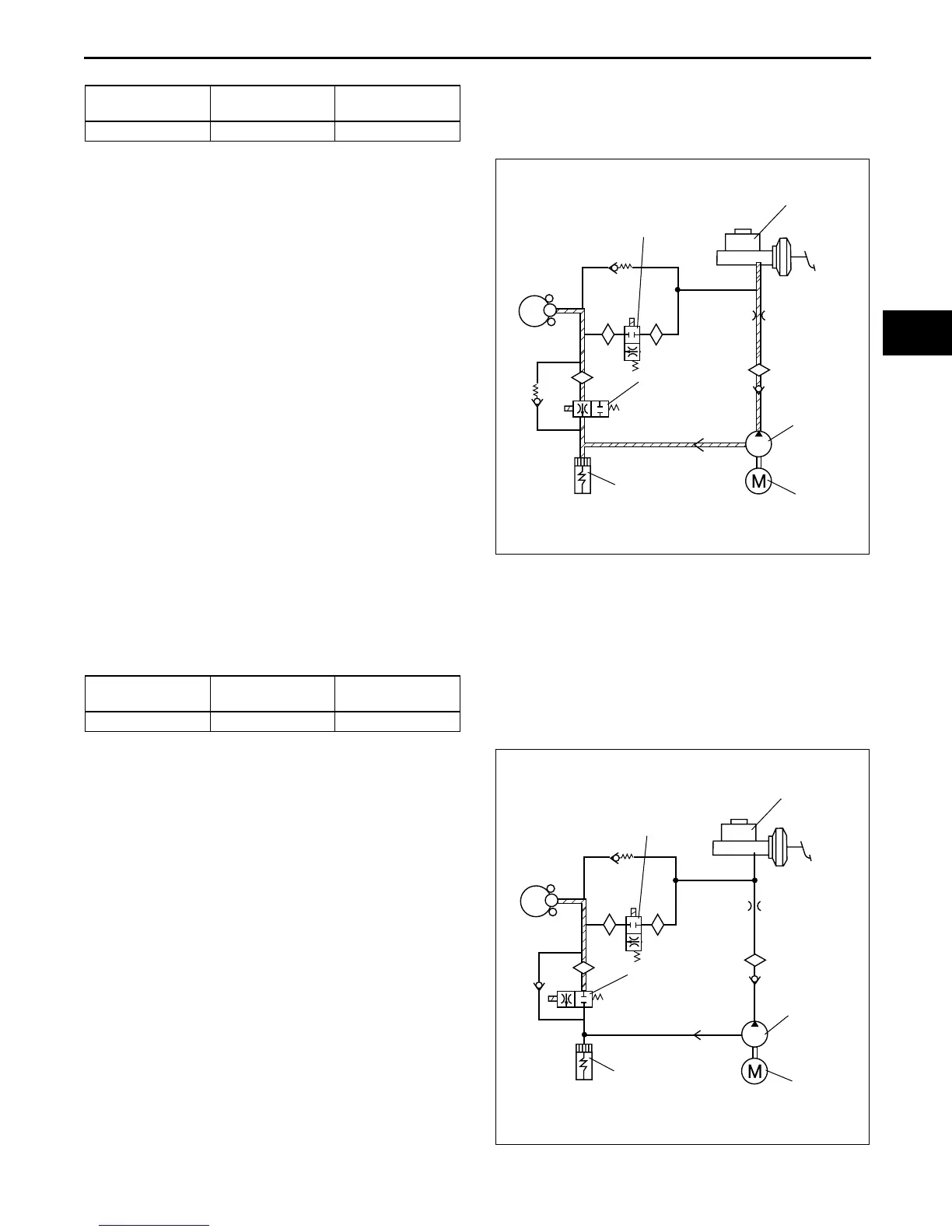

Solenoid valve operation table
Pressure maintain mode
• During pressure maintain mode, both the inlet and outlet solenoid valves are closed. The path for the brake
fluid being applied to the caliper piston is blocked and brake fluid pressure is maintained. (Description for single
front wheel only)
Solenoid valve operation table
End Of Sie
Inlet solenoid
valve
Outlet solenoid
valve
Pump motor,
pump
ON (closed) ON (open) Operating
R F
MASTER CYLINDER
PUMP
MOTOR
PUMP
RESERVE
INLET
SOLENOID
VALVE
OUTLET
SOLENOID
VALVE
CHU0413S007
Inlet solenoid
valve
Outlet solenoid
valve
Pump motor,
pump
ON (closed) OFF (closed) Stopped
R F
MASTER CYLINDER
PUMP
MOTOR
PUMP
RESERVE
INLET
SOLENOID
VALVE
OUTLET
SOLENOID
VALVE
CHU0413S008
