Mazda RX-8 2004 - Function; Air Cleaner Construction; Air Cleaner Function; Fresh-Air Duct Construction

INTAKE-AIR SYSTEM
01–13–5
01–13
FRESH-AIR DUCT CONSTRUCTION
CHU011313200S02
• Composed of the fresh-air duct, VFAD actuator
(13B-MSP (High Power)), and VFAD valve (13B-
MSP (High Power)).
End Of Sie
AIR CLEANER FUNCTION
CHU011313300S01
• A large-size air cleaner has been adopted, reducing air intake noise and intake resistance.
End Of Sie
AIR CLEANER CONSTRUCTION
CHU011313300S02
• Composed of the air cleaner cover, air cleaner
element, air cleaner case, and insulator.
• Non-woven fabric (dry type) has been adopted for
the air cleaner element.
End Of Sie
RESONANCE CHAMBER FUNCTION
CHU011300100S01
Features
• Installed to the air hose to reduce air intake noise.
End Of Sie

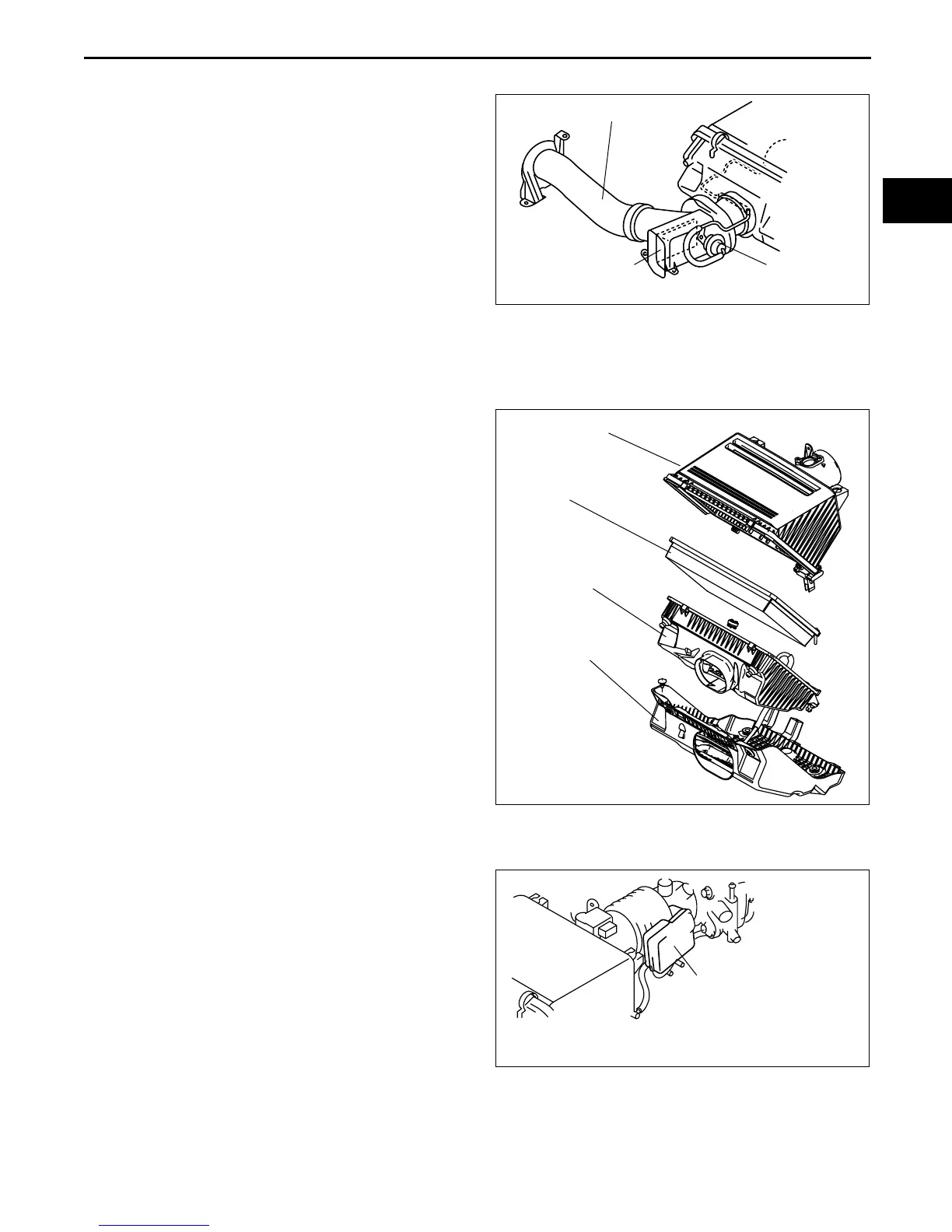

VFAD ACTUATOR
VFAD VALVE
FRESH-AIR DUCT
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0113S004
INSULATOR
AIR CLEANER CASE
AIR CLEANER ELEMENT
AIR CLEANER COVER
CHU0113S005
RESONANCE CHAMBER
CHU0113S006
