BASIC SYSTEM
07–11–6

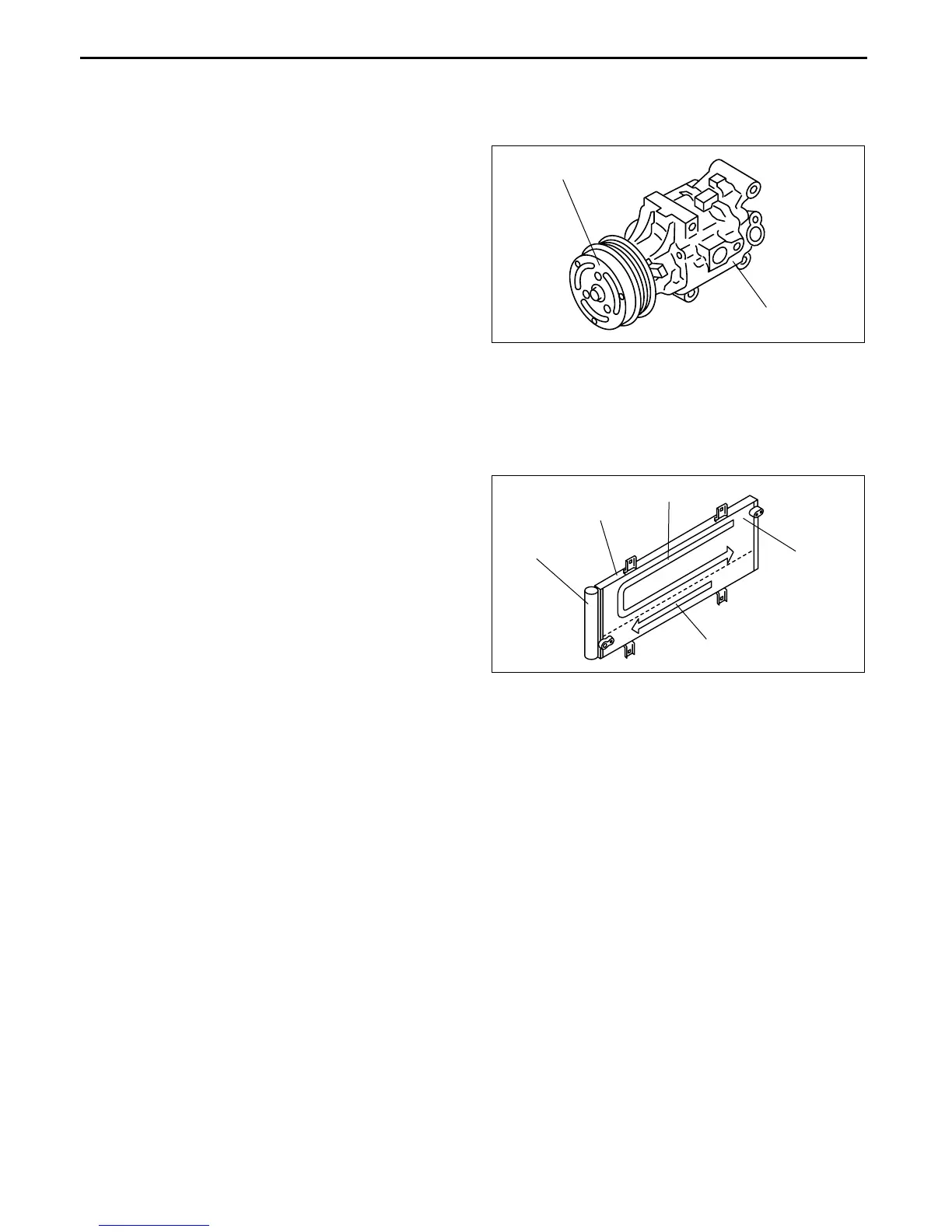

A/C COMPRESSOR CONSTRUCTION
CHU071161480S01
• Composed of the following parts:
— A/C compressor body
— Magnetic clutch
End Of Sie
CONDENSER CONSTRUCTION
CHU071161480S02
• A sub cool condenser has been adopted. It is a multi-flow condenser which is equipped with a sub cooling part
and integrated with a receiver/drier.
• The sub cool condenser separates liquid-gas refrigerant initially cooled at the condenser via the receiver/drier,
where it returns again to the condenser sub cooling part and is cooled, accelerating liquefaction and improving
cooling capacity.
End Of Sie
MAGNETIC CLUTCH
A/C COMPRESSOR BODY
CHU0711S011
CONDENSER
RECEIVER/
DRIER
OUT
IN
REFRIGERANT FLOW
COOLING
PART
SUB COOLING PART
CHU0711S012
