AIR BAG SYSTEM
08–10–7
08–10

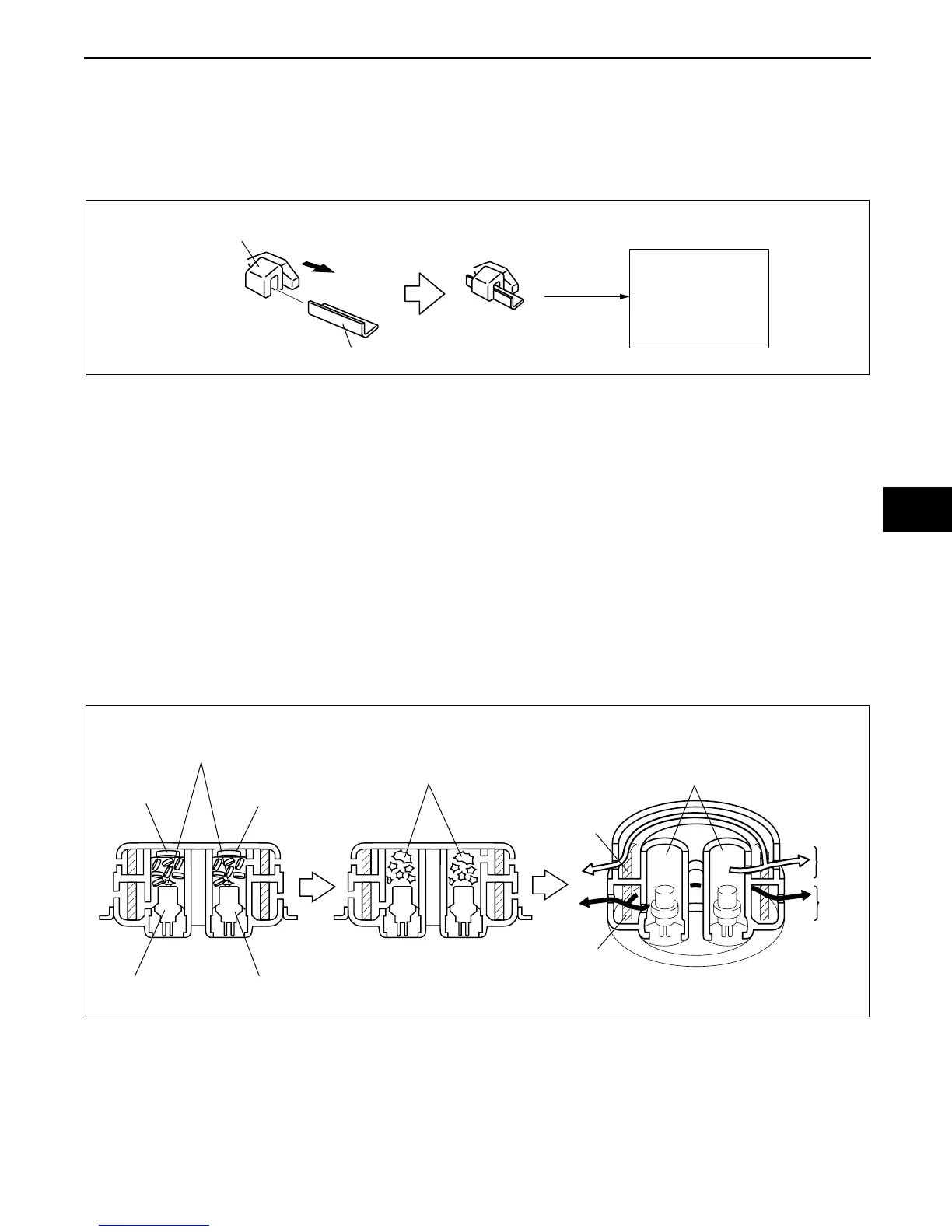

SEAT TRACK POSITION SENSOR CONSTRUCTION/OPERATION
CHU081057030S04
• The seat track position sensor consists of a Hall element (semi-conductor) and a magnet. The sensor converts
the effect of the magnetic flux (produced by the magnet) on the Hall element, into an electrical signal.
• When the driver’s seat is moved to a forward position, the metal plate installed near the front of the seat track
passes through the groove in the seat track position sensor. When this occurs the magnetic flux of the sensor
changes and that change is sent as an electrical signal to the SAS control module. The SAS control module
receives this signal and determines that the driver’s seat has been moved to a forward position.
End Of Sie
DRIVER-SIDE AIR BAG MODULE FUNCTION
CHU081057010S01
Outline
• A dual inflator, divided into inflator No.1 and No.2, has been adopted in accordance with the front air bag
system 2-step deployment control.
End Of Sie
DRIVER-SIDE AIR BAG MODULE CONSTRUCTION/OPERATION
CHU081057010S02
Inflator Operation
1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the
SAS control module. The inflation agent is ignited by the build up of heat in the igniter.
2. The ignition of the inflation agent causes the combustion of an agent which releases nitrogen gas.
3. The nitrogen gas is cooled at the filter, and the filtrate is injected into the air bag.
Note
• The gas injection outlets for the inflators are divided into two tiers. Gas from inflator No.1 is injected from
the No.1 tier, and from the No.2 tier for inflator No.2.
End Of Sie
PASSENGER-SIDE AIR BAG MODULE FUNCTION
CHU081057050S01
Outline
• A dual inflator, divided into inflator No.1 and inflator No.2, has been adopted in accordance with the front air
bag system 2-step deployment control.
End Of Sie
SEAT TRACK
POSITION SENSOR
SEAT
POSITION
SIGNAL
SAS
CONTROL
MODULE
FRONT
METAL PLATE
CHU0810S004
GAS
GENERATING
AGENT
GAS
GENERATING
AGENT
GAS GENERATING
AGENT COMBUSTION
TO AIR BAG
NITROGEN
GAS
FILTER
TO AIR BAG
2ND
STEP
1ST
STEP
FILTER
IGNITER
(INFLATOR NO.1)
IGNITER
(INFLATOR NO.2)
IGNITION OF
INFLATION
AGENT
CHU0810S220
