INSTRUMENTATION/DRIVER INFO.
09–22–12
OIL PRESSURE GAUGE CONTROL OUTLINE
CHU092255430S19
• The oil pressure signal is output from the PCM to the microcomputer in the instrument cluster.
End Of Sie
OIL PRESSURE GAUGE CONTROL CONSTRUCTION/OPERATION
CHU092255430S20

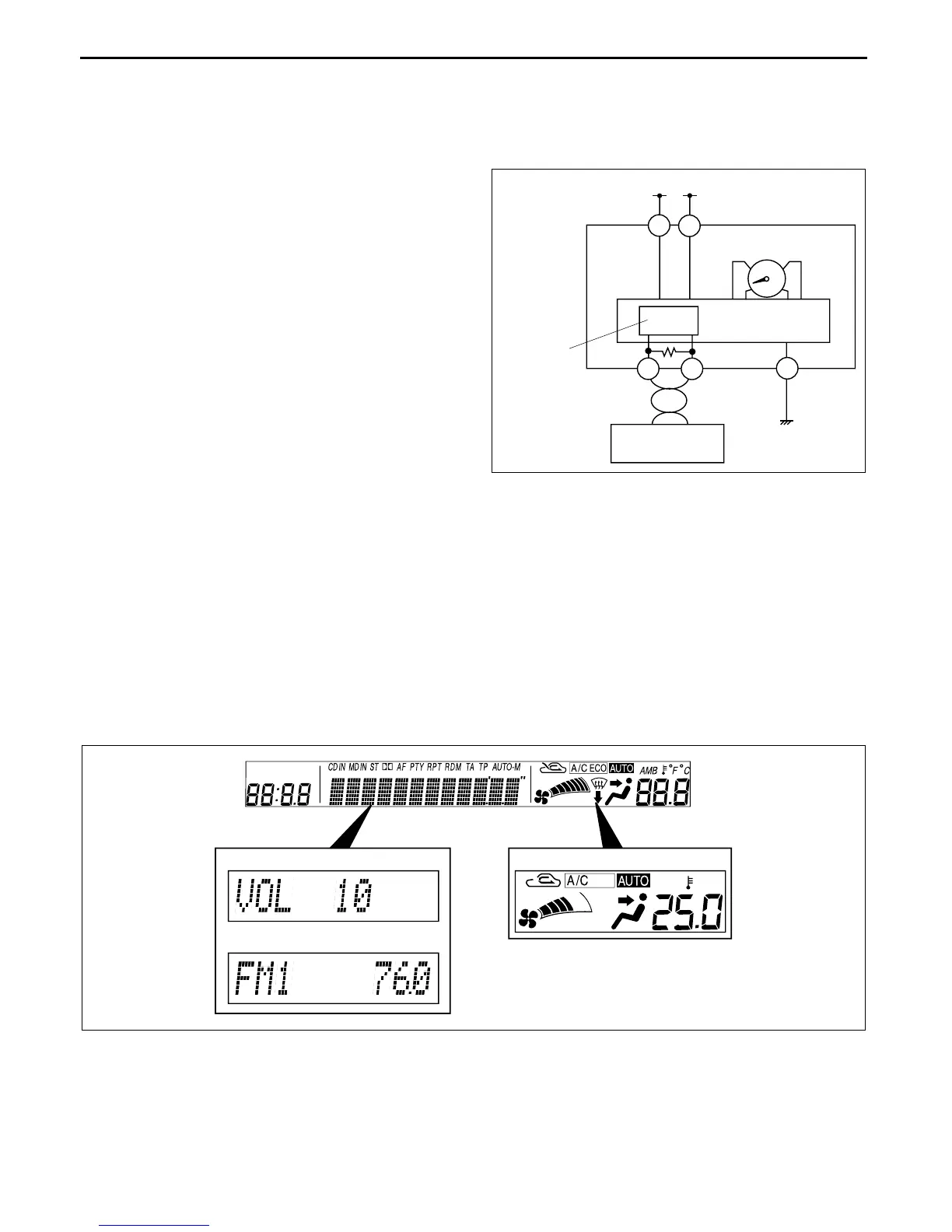

System Wiring Diagram
Operation
• The oil pressure signal sent from the PCM via the CAN system is input to the microcomputer in the instrument
cluster. The microcomputer sends an output signal to the oil pressure gauge based on the oil pressure signal.
End Of Sie
INFORMATION DISPLAY FUNCTION
CHU092255000S01
• The information display has the following functions:
— Display function
— Clock function
End Of Sie
INFORMATION DISPLAY CONSTRUCTION/OPERATION
CHU092255000S02
Display Function
• Displays information for the audio system (such as volume and frequency) and air conditioner system (such as
air flow volume, set temperature and mode) based on the signals from the center panel module.
IG1
B+
1G
1E
1L1J
1C
CAN
CONTROL
CIRCUIT
PCM
INSTRUMENT
CLUSTER
MICROCOMPUTER
OIL PRESSURE
GAUGE
CHU0922S108
AIR CONDITIONER DISPLAY
AUDIO VOLUME DISPLAY
FREQUENCY DISPLAY
CHU0922S006
To Next Page
