MECHANICAL
01–10–12
APEX SEAL CONSTRUCTION
CHU011011910S03
• The special iron cast apex seals have been electronic beam processed to improve abrasion resistance on the
trochoid friction surface.
• The apex seal is comprised of two parts including a side piece set on the sharp end of an apex seal. The apex
seals maintain a gas seal while sweeping the trochoid surface by the combined force of the apex seal springs
and centrifugal force of the rotor rotation.
End Of Sie

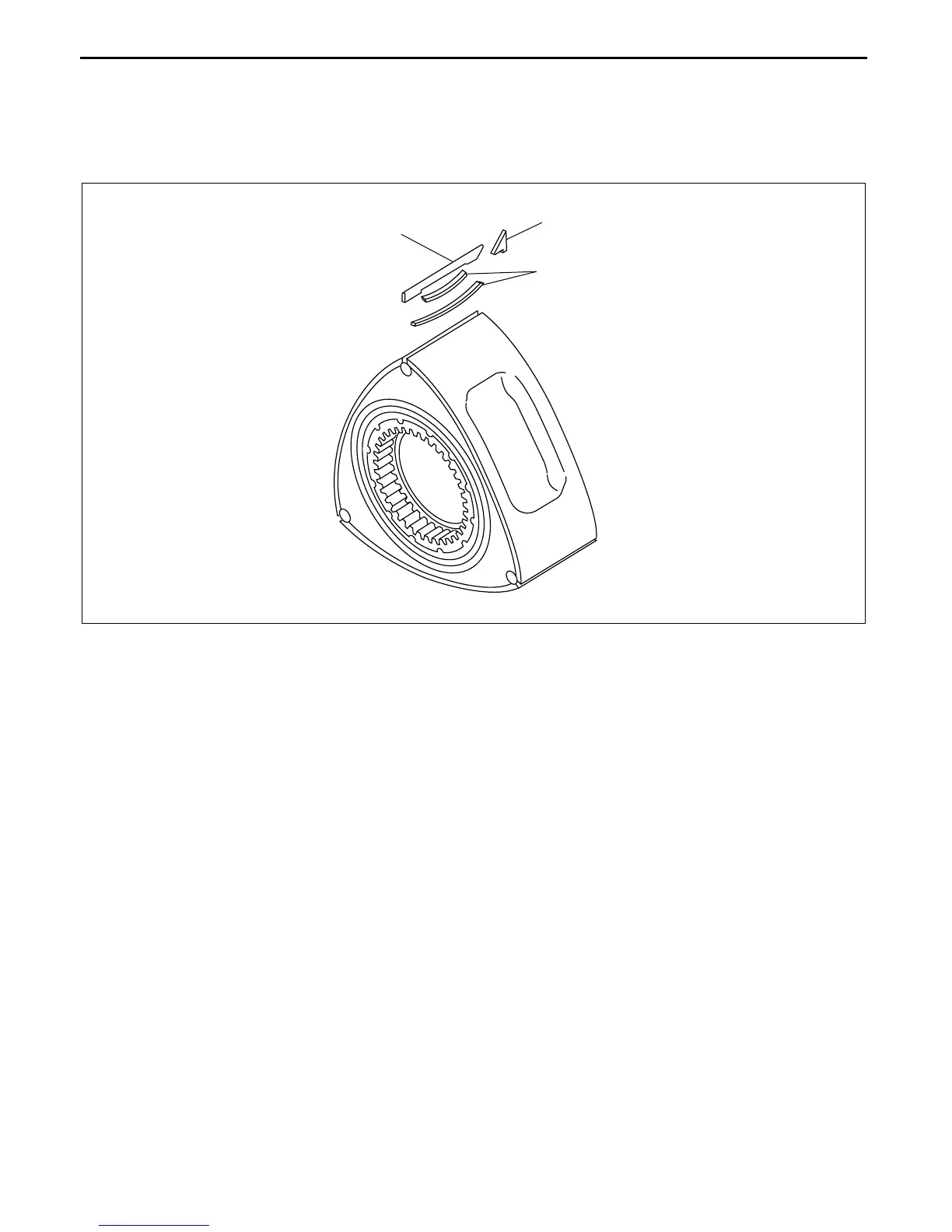

APEX SEAL
SIDE PIECE
APEX SEAL
SPRING
CHJ0110S013
