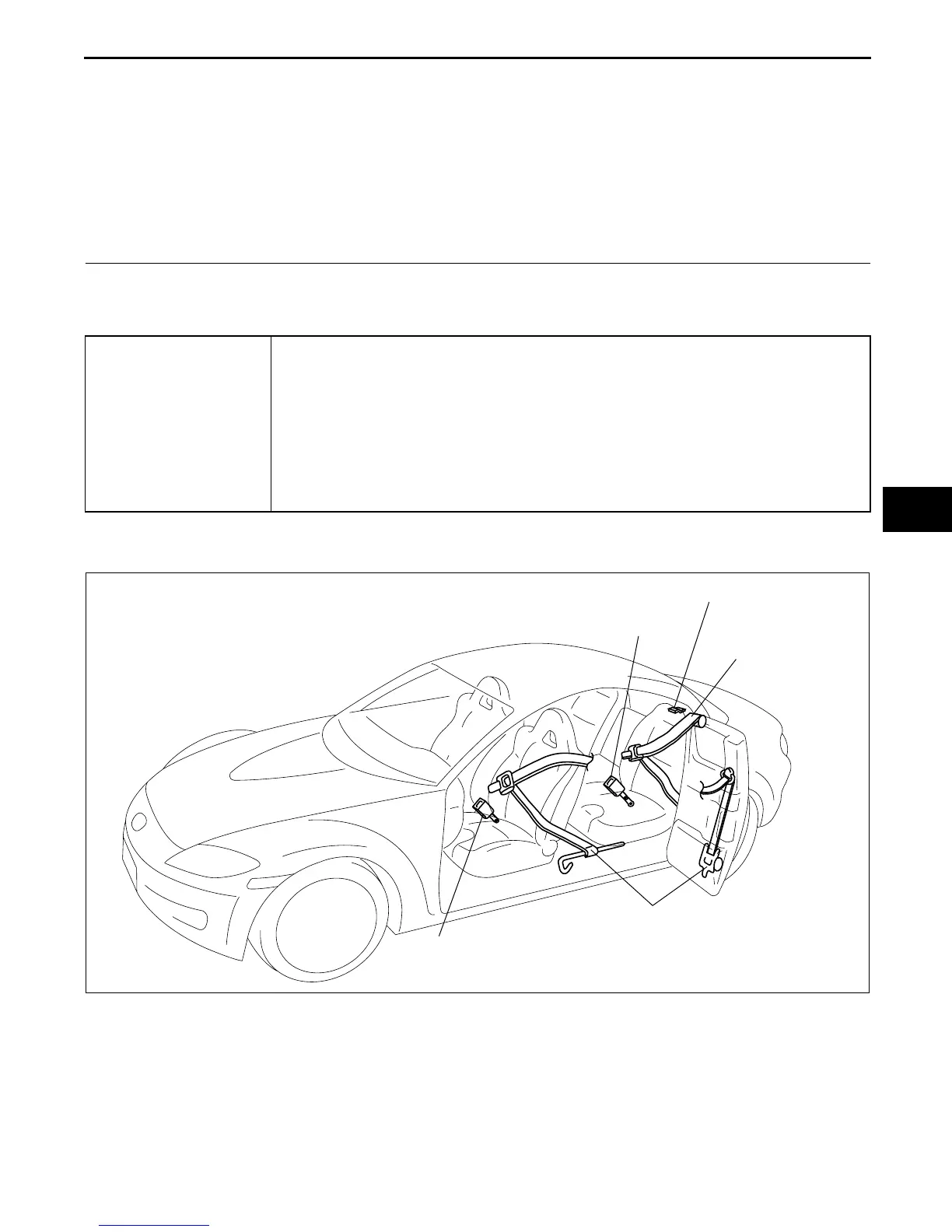

SEAT BELT OUTLINE
CHU081157100S01
Features
End Of Sie
SEAT BELT STRUCTURAL VIEW
CHU081157100S02
End Of Sie
SEAT BELT LOCK RELEASE OUTLINE
CHU081157100S04
Features
• A seat belt lock release function has been adopted on the front seat belts which are installed on the rear doors.
This function releases the locks on the front seat belts when the rear doors open to prevent interference.
End Of Sie
Improved safety • Three-point seat belt with the following functions for front seat passengers adopted
— ELR (Emergency Locking Retractor: emergency locking mechanism)
— Pre-tensioner (See 08–10–11 PRE-TENSIONER SEAT BELT CONSTRUCTION/
OPERATION.)
— Load limiter, which adjusts restraint force of the seat belt to reduce the possibility of injury
to passengers caused by excess seat belt pressure after pre-tensioner operation
— Seat belt lock release, which releases the lock on the front seat belt when the rear door is
opened to prevent interference.
• Three-point seat belt with the following functions for rear seat passengers adopted
— ELR
— ALR (Automatic Locking Retractor: child-restraint seat locking mechanism)
REAR SEAT BELT
TETHER STRAP ANCHOR
REAR BUCKLE
FRONT SEAT BELT
FRONT BUCKLE
CHU0811S001
