MECHANICAL
01–10–17
01–10

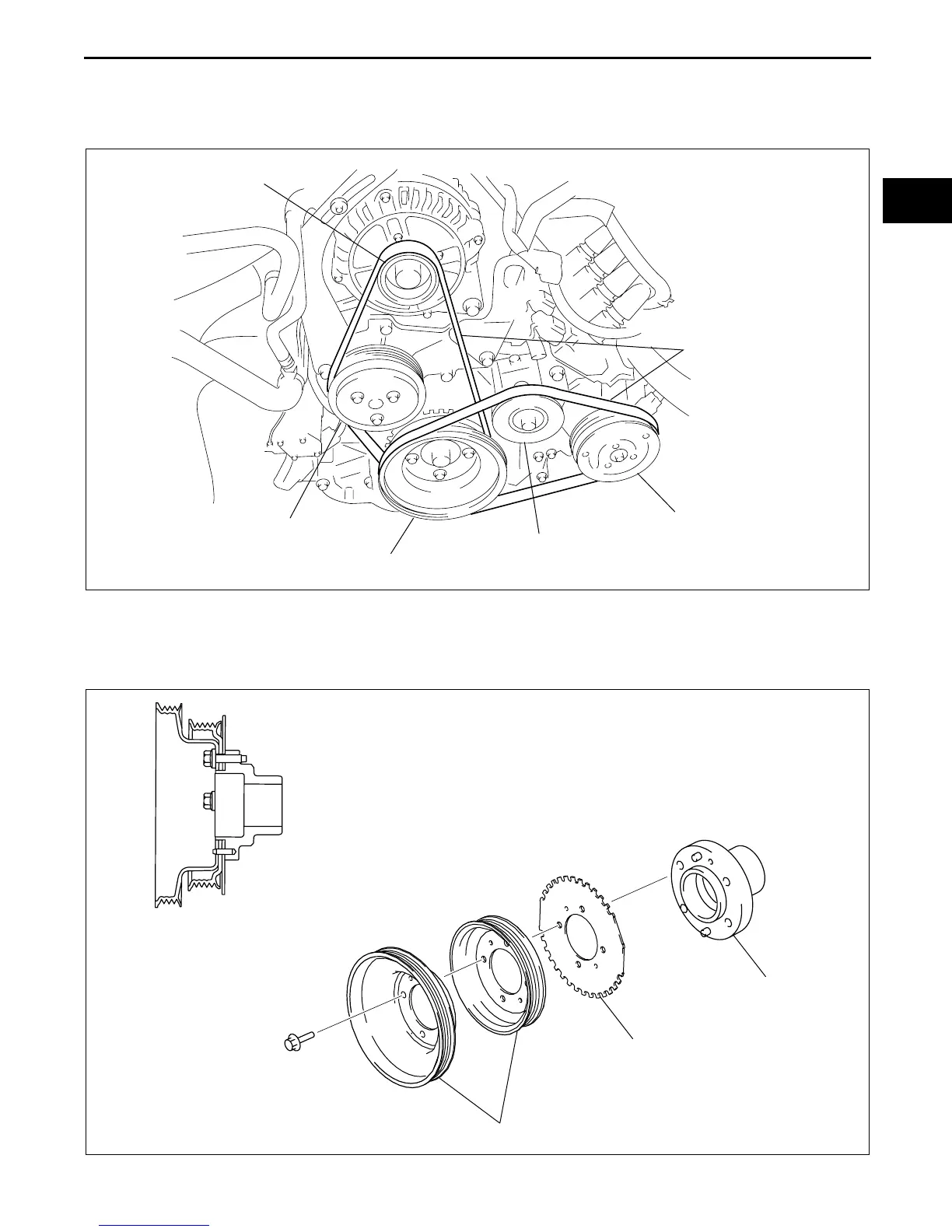

DRIVE BELT CONSTRUCTION
CHU011015800S01
• The V-ribbed drive belts are composed of two belts, one that drives the generator and the water pump, and
another that drives the A/C compressor. Serviceability has been improved from this simple layout based on the
motorization of the air pump and P/S pump that were formerly driven by drive belts.
End Of Sie
ECCENTRIC SHAFT PULLEY DESCRIPTION
CHU011011400S01
• The eccentric shaft pulleys are made of carbon steel and are installed to the eccentric shaft through the pulley
boss.
End Of Sie
ECCENTRIC SHAFT PULLEY
A/C COMPRESSOR PULLEY
TENSIONER PULLEY
WATER PUMP PULLEY
GENERATOR PULLEY
DRIVE BELT
CHJ0110S018
ECCENTRIC SHAFT PULLEY
ECCENTRIC SHAFT
POSITION PLATE
PULLEY BOSS
CROSS-SECTIONAL VIEW
CHJ0110S019
