Mazda RX-8 2004 - Air Filter Function; Blower Unit Construction

BASIC SYSTEM
07–11–3
07–11
BLOWER UNIT CONSTRUCTION
CHU071113988S01
• Composed of the following parts:
— Blower motor
— Air intake door
— Air intake actuator
— Air filter
End Of Sie
AIR FILTER FUNCTION
CHU071113988S02
• An air filter that can remove pollen and dust has been adopted.
• The air filter cannot be reused and must be replaced periodically. Even new air filters are gray, so be careful
not to mistake the gray color for dirt.
• Air filter can be replaced easily.
End Of Sie

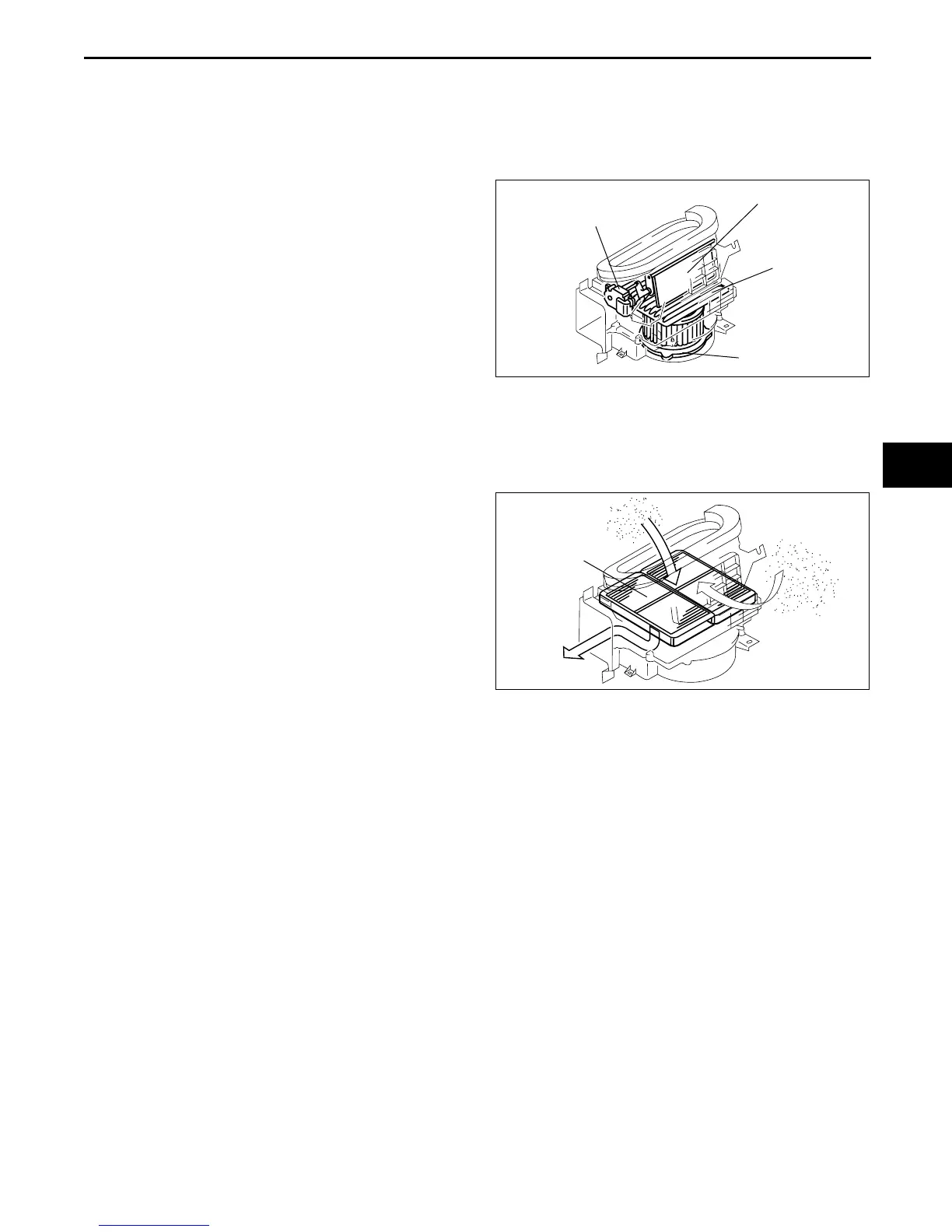

AIR INTAKE ACTUATOR
AIR INTAKE DOOR
AIR FILTER
BLOWER MOTOR
CHU0711S006
AIR FILTER
CHU0711S007
