MECHANICAL
01–10–10
ECCENTRIC SHAFT BYPASS VALVE CONSTRUCTION
CHU011011901S02
• An eccentric shaft bypass valve has been adopted to shorten the engine warm up period. The eccentric shaft
bypass valve allows engine oil in the oil passage to escape at cold-engine start, maintaining a pressure in the
eccentric shaft that prohibits injection of rotor cooling engine oil from the oil jet plugs until the engine is warmed
up.
End Of Sie
BALANCE WEIGHT, COUNTERWEIGHT (AT), FLYWHEEL (MT) OUTLINE
CHU011011901S03
• The flywheel is approximately 20% lighter than the previous flywheel for improved engine response.
End Of Sie

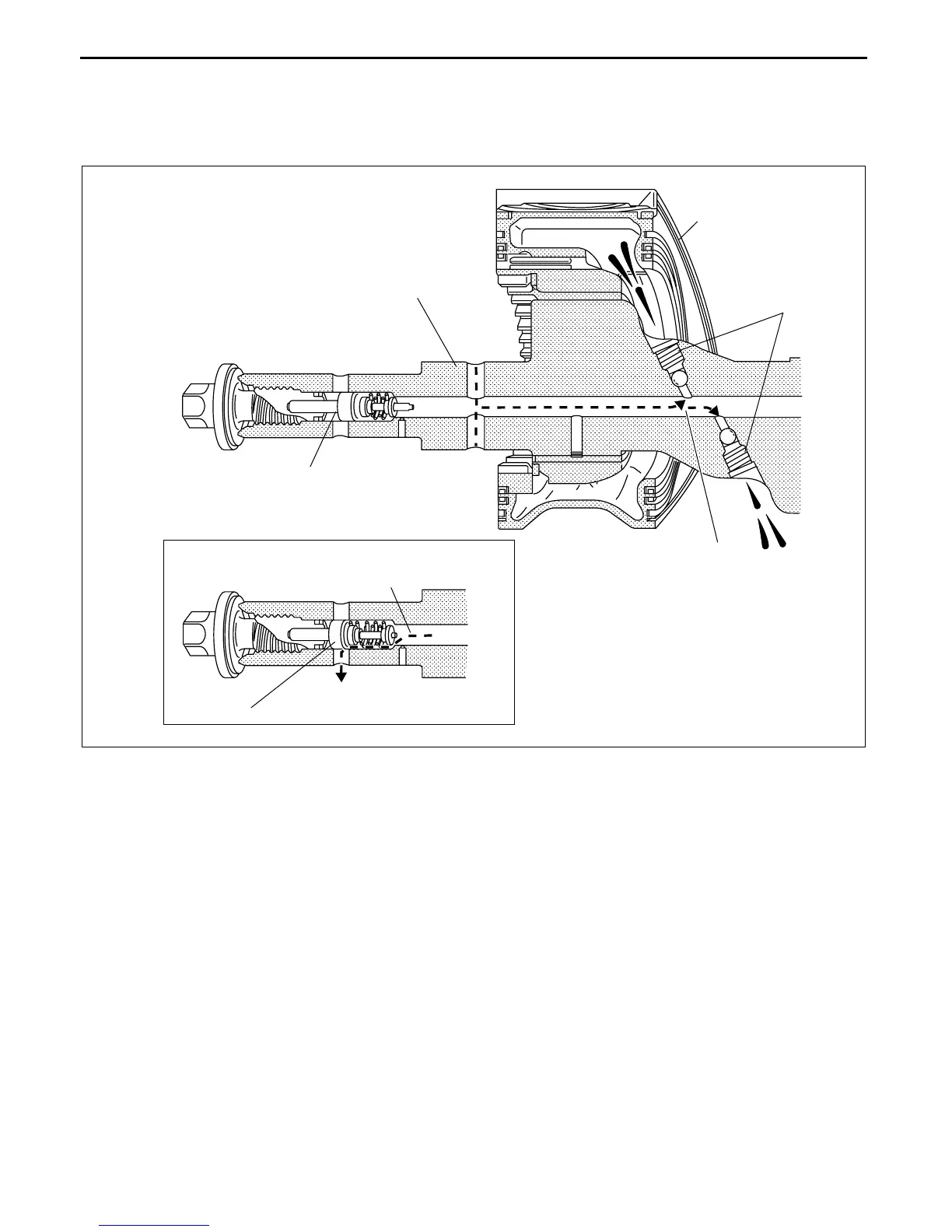

ECCENTRIC SHAFT
BYPASS VALVE
ECCENTRIC SHAFT
ROTOR
OIL JET PLUG
ENGINE OIL TEMPERATURE: LESS THAN 60˚C {140˚F}
ENGINE OIL
ENGINE OIL TEMPERATURE: 60˚C {140˚F} OR ABOVE
ENGINE OIL
ECCENTRIC BYPASS VALVE
OIL PRESSURE RELIEF
CHJ0110S010
