ELECTRIC POWER STEERING (EPS)
06–13–7
06–13
TORQUE SENSOR CONSTRUCTION/OPERATION
CHU061332960S03
Construction
• The torque sensor, installed on the pinion shaft, detects the amount of road surface resistance (steering torque)
and the steering direction, and inputs a corresponding signal to the EPS control module.
Operation
• The torsion bar within the pinion shaft is of double-construction with the steering shaft and steering gear sides
joined together. Due to this, torsion forms on the torsion bar according to the steering force on the steering
shaft side and the road surface resistance on the steering gear side. This torsion is converted to electrical
signal based on variable inductance, and the amount of road surface resistance (steering torque) and the
steering direction are detected.
End Of Sie

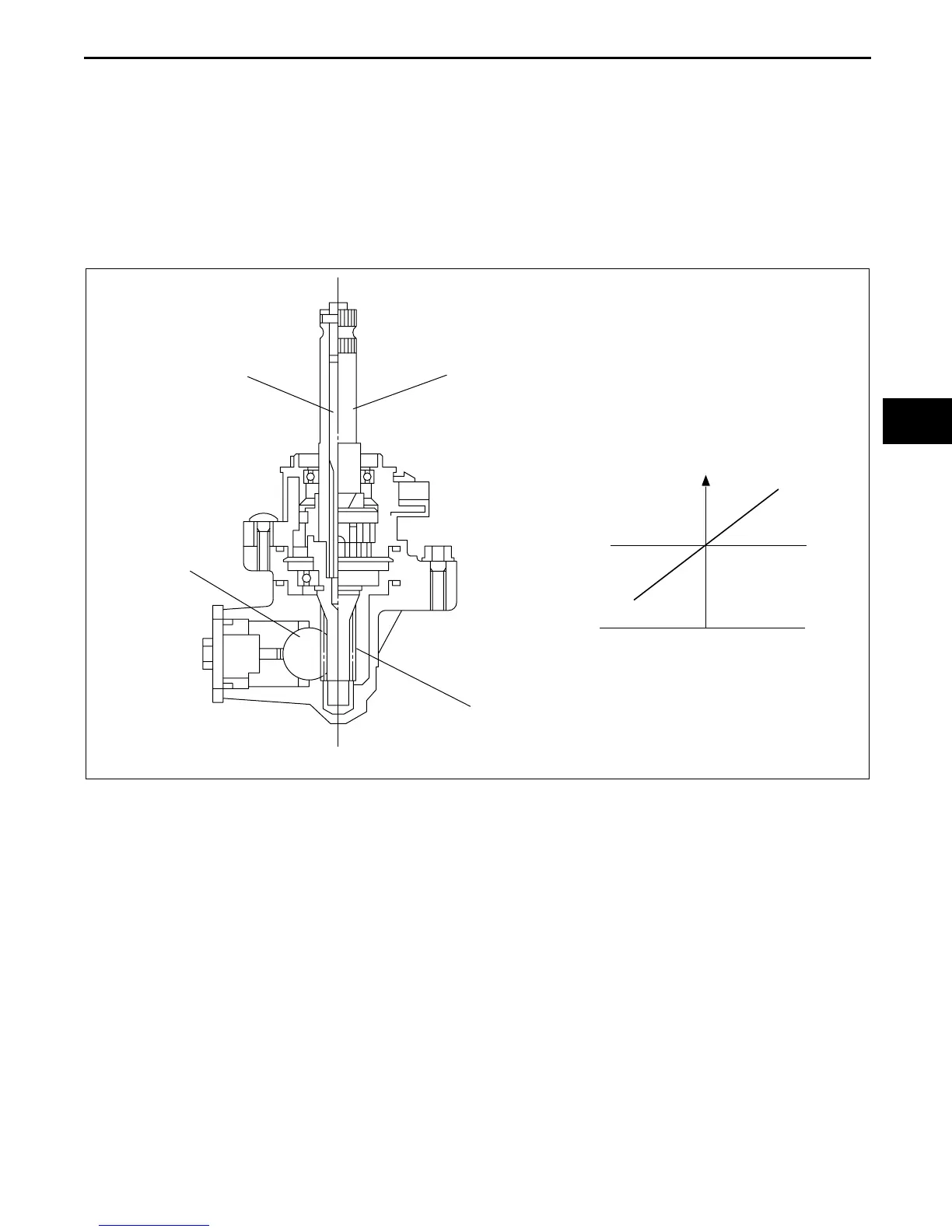

OUTPUT CHARACTERISTICS
INPUT TORQUE
2.5 V
0
OUTPUT VOLTAGE
INPUT SHAFT
TORSION BAR
STEERING RACK
PINION GEAR
TORQUE SENSOR CROSS-SECTIONAL VIEW
RIGHT
LEFT
CHU0613S006
