ENTERTAINMENT
09–20–26
End Of Sie
LCD UNIT OUTLINE
CHU092066901S01
• The car-navigation system LCD unit and the information display are incorporated into one unit. Based on
signals from the car-navigation unit and remote control, the LCD display navigational information. Based on
signals from a specialized systems (audio and A/C) module, the LCD displays information about these
systems.
• The LCD unit senses the user operations from the remote control and sends a signal to the car-navigation unit.
End Of Sie
LCD UNIT CONSTRUCTION
CHU092066901S02

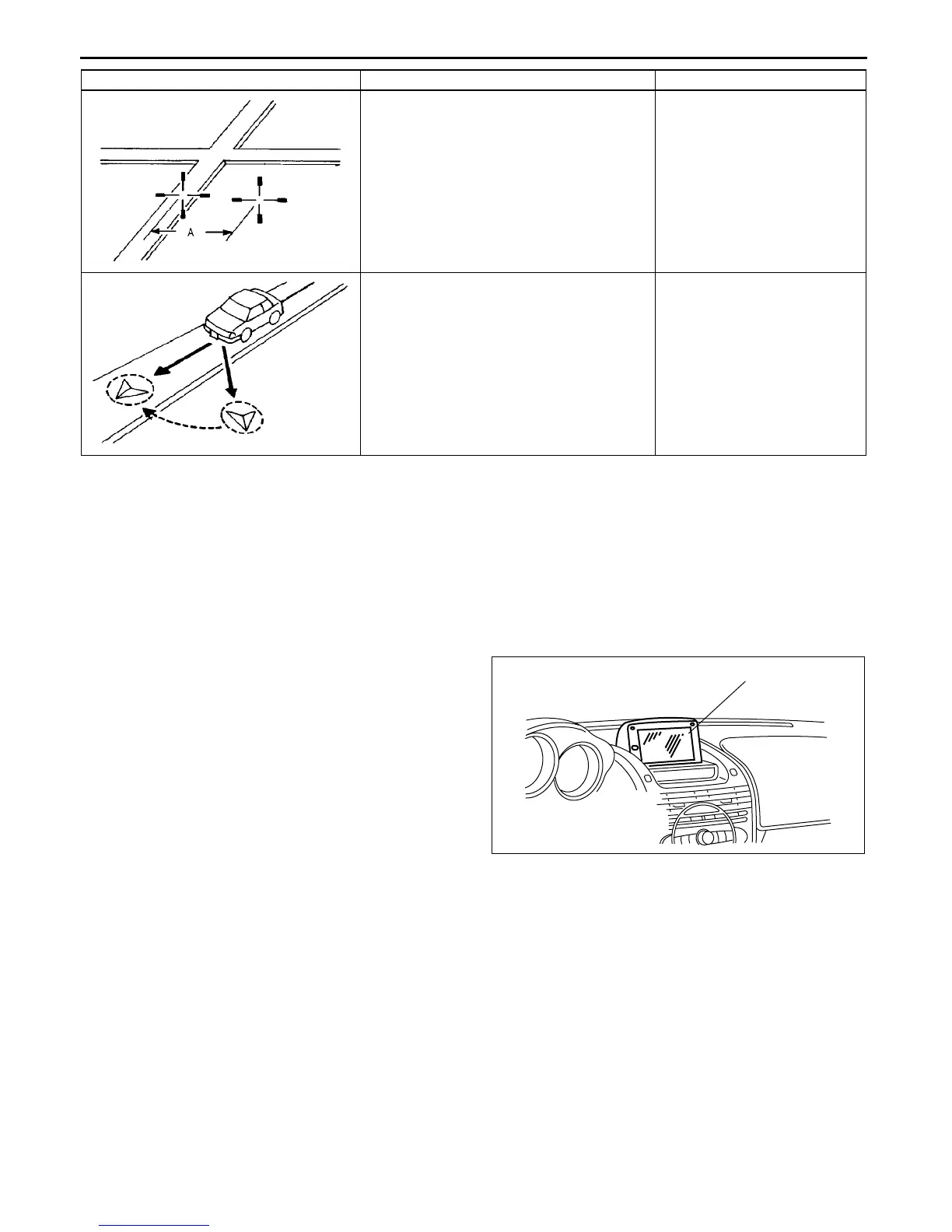

Structural View
• Located at the center of the dashboard.
• In locations such as cities where there are
a lot of roads, if the setting accuracy is
poor when the vehicle’s position is moved,
the navigation system may be unable to
find the correct road and accuracy may
drop.
• Input with precision (A) of
approx. 1 mm {0.039 in} on
the screen with a road
displayed on the vehicle
position movement screen.
(As much as possible,
correct with the detailed map
scale.)
• If the vehicle’s position is moved and the
vehicle direction does not match, the
accuracy may drop afterwards.
• Correct with the vehicle’s
position and movement
direction correction function.
Cause (Condition) Driving condition Remarks (Solution etc.)
LCD UNIT
CHU0920S112
To Next Page
