Mazda RX-8 2004 - Intake Air Temperature (Iat) Sensor Construction;Operation; Intake Air Temperature (Iat) Sensor Function; Throttle Position (Tp) Sensor Function

CONTROL SYSTEM
01–40–47
01–40

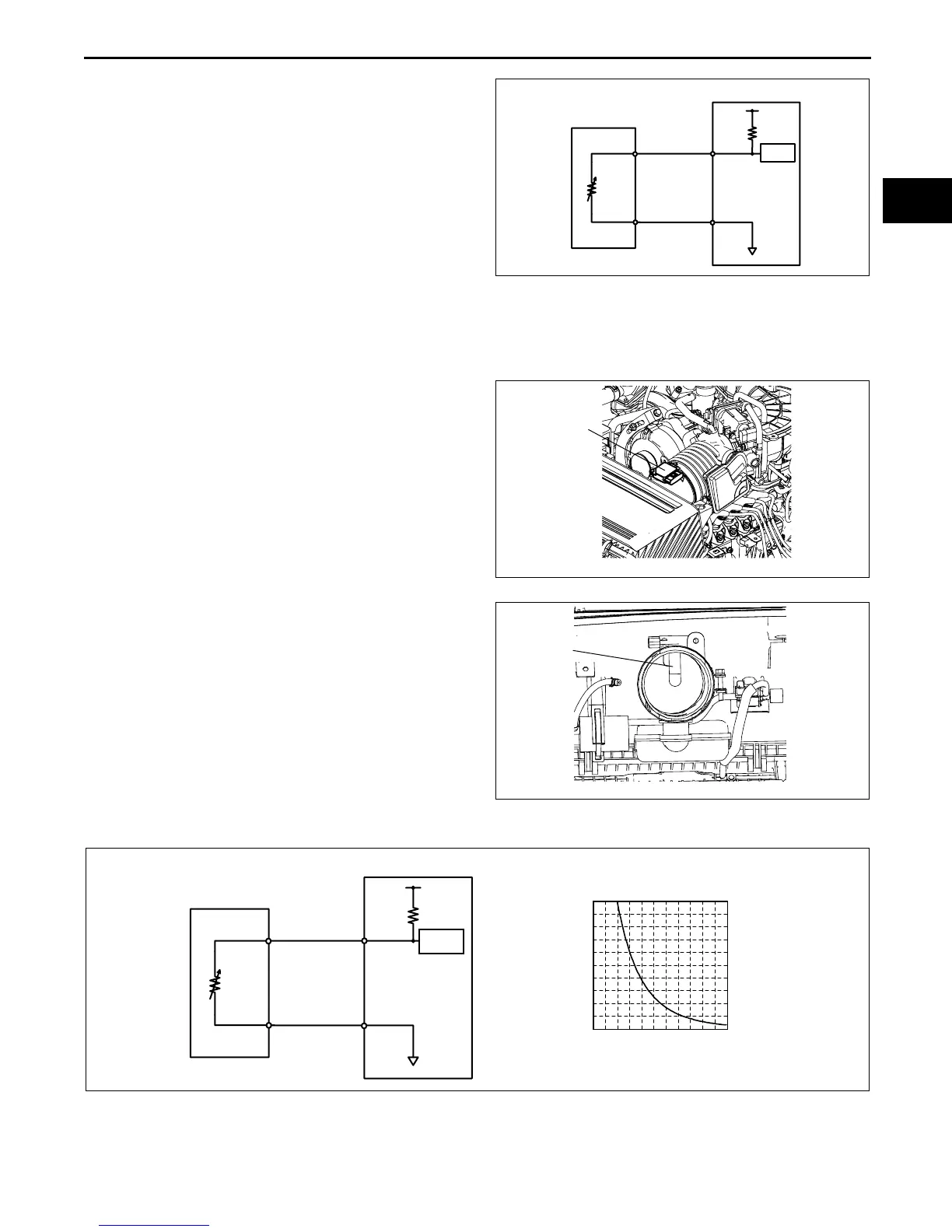

System Diagram
End Of Sie
INTAKE AIR TEMPERATURE (IAT) SENSOR FUNCTION
CHU014018840S03
• Detects the IAT.
End Of Sie
INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION
CHU014018840S04
• Installed on the air hose.
• Built into the MAF sensor.
• A thermistor type is used and the resistance
changes according to the IAT.
• As shown in the characteristics graph, when the
IAT is high, the resistance is low, and when the
IAT is low, the resistance is high.
IAT Sensor Characteristics
End Of Sie
THROTTLE POSITION (TP) SENSOR FUNCTION
CHU014018910S01
• Detects the throttle valve opening angle.
End Of Sie
PCM
CPU
ECT SENSOR
CHU0140S049
MAF/IAT
SENSOR
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0140S050
MAF/IAT
SENSOR
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0140S051
0
10
5
0
32
-20
-4
20
68
40
104
60
140
80 (˚C)
176 (˚F)
PCM
CPU
RESISTANCE (KILOHM)
INTAKE AIR TEMPERATURE
IAT SENSOR
CHU0140S052
