EXHAUST SYSTEM OUTLINE
CHU011540000S01
Features
• The exhaust system (including the exhaust manifold) has been laid out as straight as possible in order to
achieve smooth flow of exhaust gas and maintain high power output. Additionally, a large-bore exhaust pipe
and a high-capacity main silencer with an inlet pipe that passes through the center of the main silencer body
have been adopted to reduce exhaust resistance.
• Double wall piping has been adopted for the exhaust manifold to prevent lowering of exhaust gas temperature
and facilitates rapid catalyzer activation after cold engine starting for improved exhaust purification.
End Of Sie

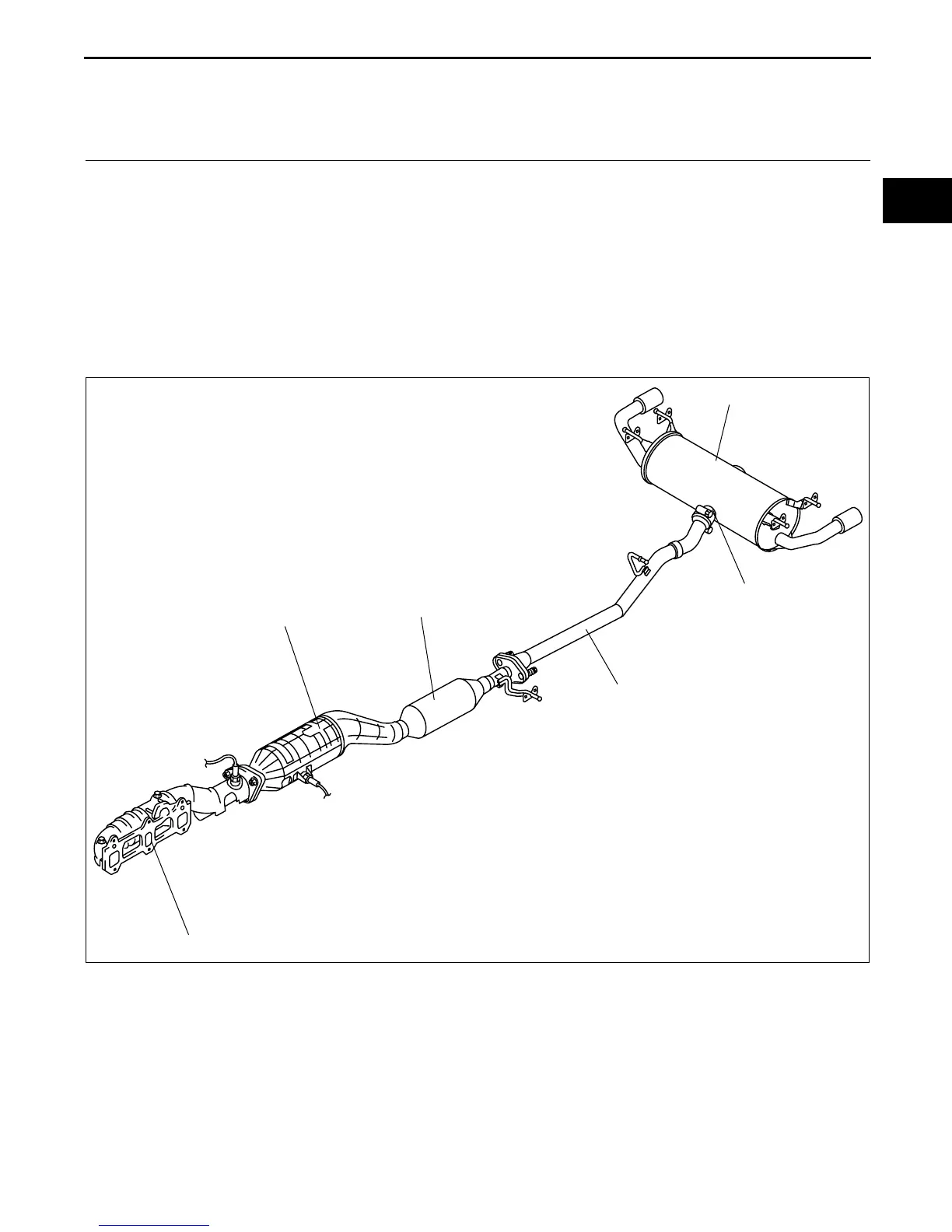

EXHAUST SYSTEM STRUCTURAL VIEW
CHU011540000S02
End Of Sie
MAIN SILENCER
PRESILENCER
EXHAUST MANIFOLD
TWC
MIDDLE PIPE
INLET PIPE
CHU0115S001
