PASSENGER-SIDE AIR BAG MODULE CONSTRUCTION/OPERATION
CHU081057050S02
Inflator Operation
1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the
SAS control module. The inflation agent is ignited by the build up of heat in the igniter.
2. The ignition of the inflation agent causes the combustion of an agent which releases nitrogen gas.
3. The nitrogen gas is cooled at the filter, and the filtrate is injected into the air bag.
End Of Sie
SIDE AIR BAG MODULE FUNCTION
CHU081000147S01
• During a collision to the side of the vehicle, the air bag operates (deploys) after receiving an operation signal
from the SAS control module, defusing impact to the chest area of the driver and front passenger.
End Of Sie

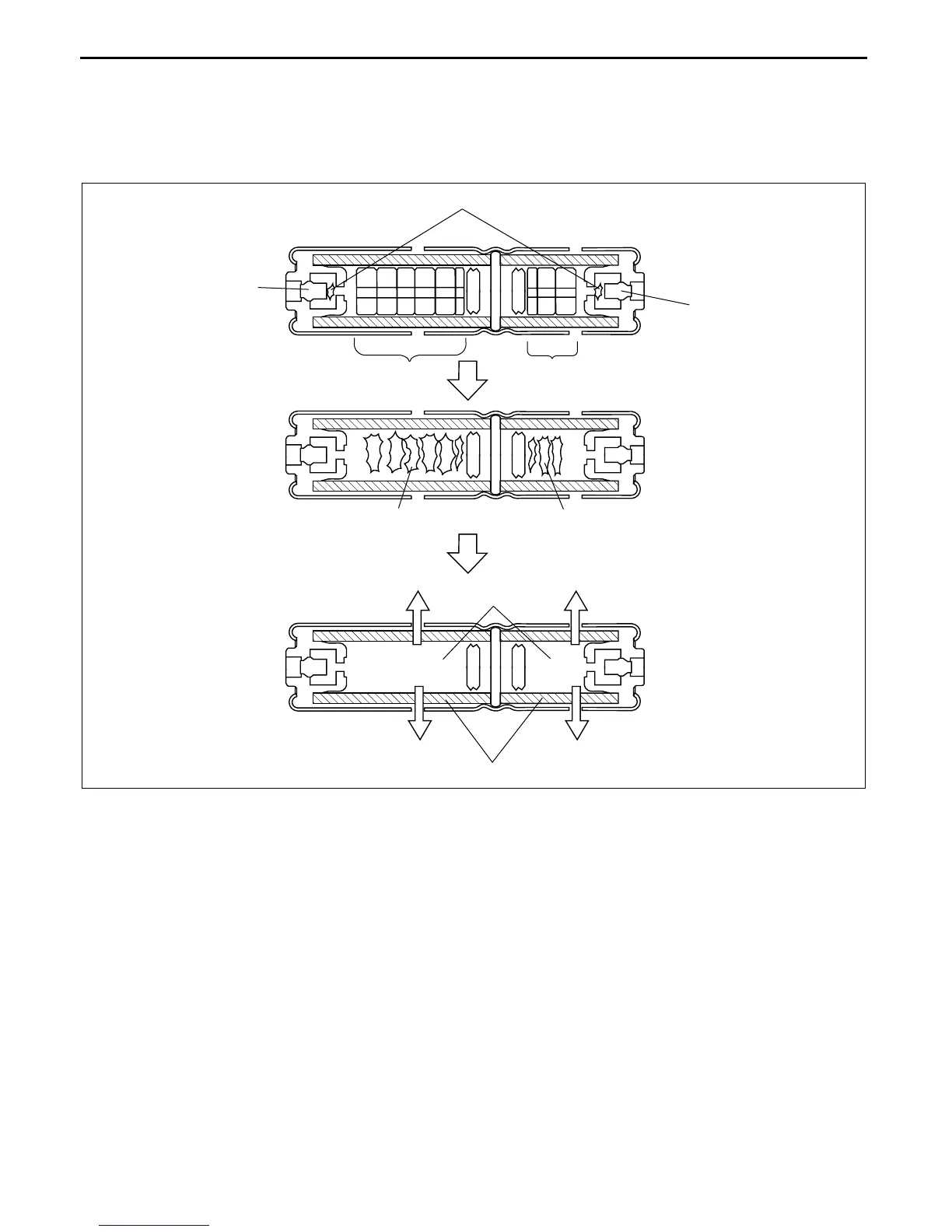

IGNITION OF INFLATION AGENT
IGNITER
(INFLATOR NO.2)
IGNITER
(INFLATOR NO.1)
GAS GENERATING
AGENT
GAS GENERATING
AGENT COMBUSTION
TO AIR BAG
TO AIR BAG TO AIR BAG
FILTER
TO AIR BAG
NITROGEN
GAS
GAS GENERATING
AGENT COMBUSTION
GAS GENERATING
AGENT
CHU0810S221
