CONTROL SYSTEM
01–40–54
METERING OIL PUMP SWITCH FUNCTION
CHU014018990S04
• Detects the fully-open position of the stepping motor when the learning function of the metering oil pump is
performed.
• Turns on when the stepping motor is at step 52 or more.
End Of Sie

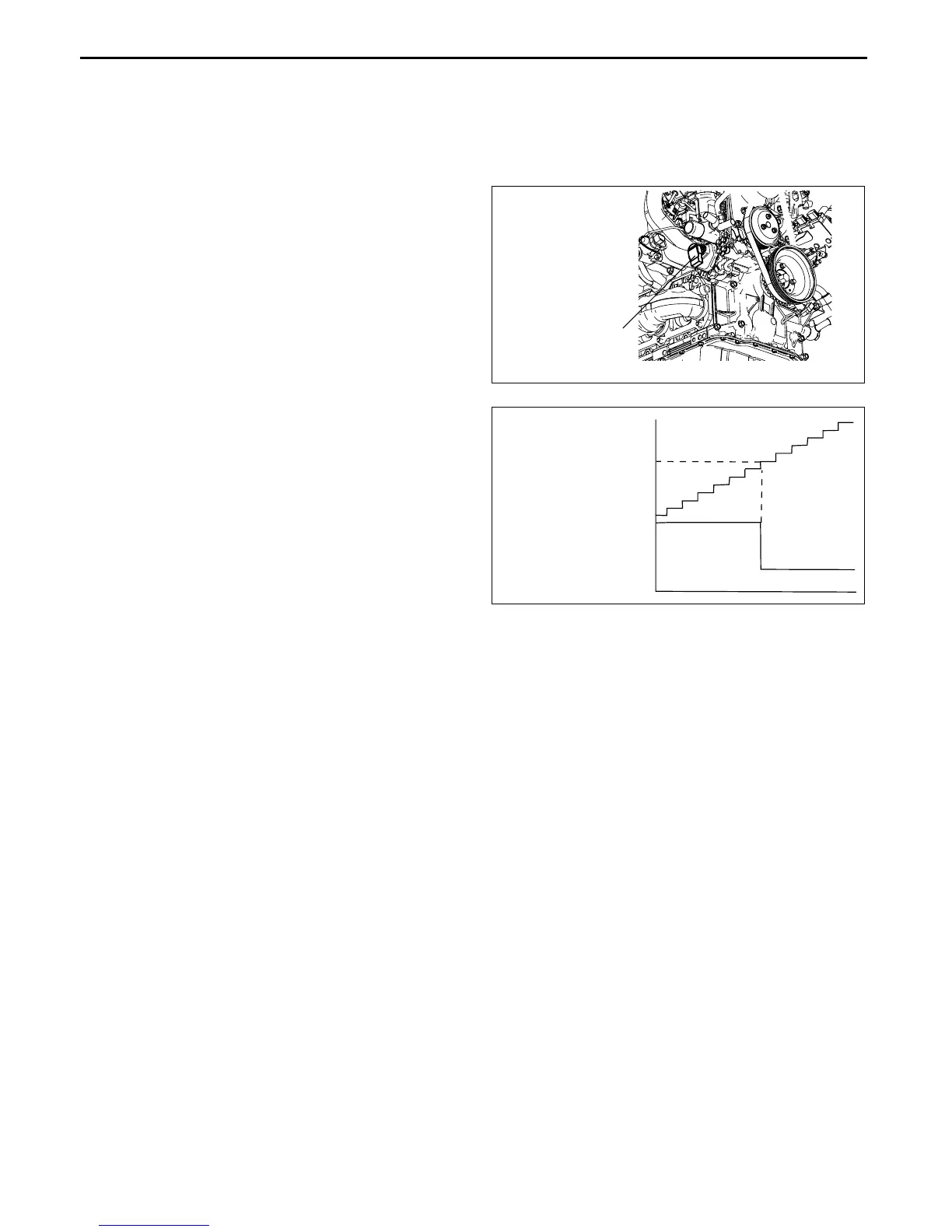

METERING OIL PUMP SWITCH CONSTRUCTION/OPERATION
CHU014018660S04
• The metering oil pump switch is installed on the
metering oil pump.
• The metering oil pump switch turns on when the
stepping motor is at step 52 or more.
• For a description of the learning function, refer to
the learning function of the metering oil pump
control. (See01–40–32 METERING OIL PUMP
CONTROL OPERATION.)
End Of Sie
METERING OIL
PUMP SWITCH
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0140S071
OFF
ON
STEP 52
STEPPING
MOTOR
METERING OIL
PUMP SWITCH
CHU0140S072
