Mazda RX-8 2004 - Airflow Mode Door Operation; Airflow Distribution

BASIC SYSTEM
07–11–5
07–11

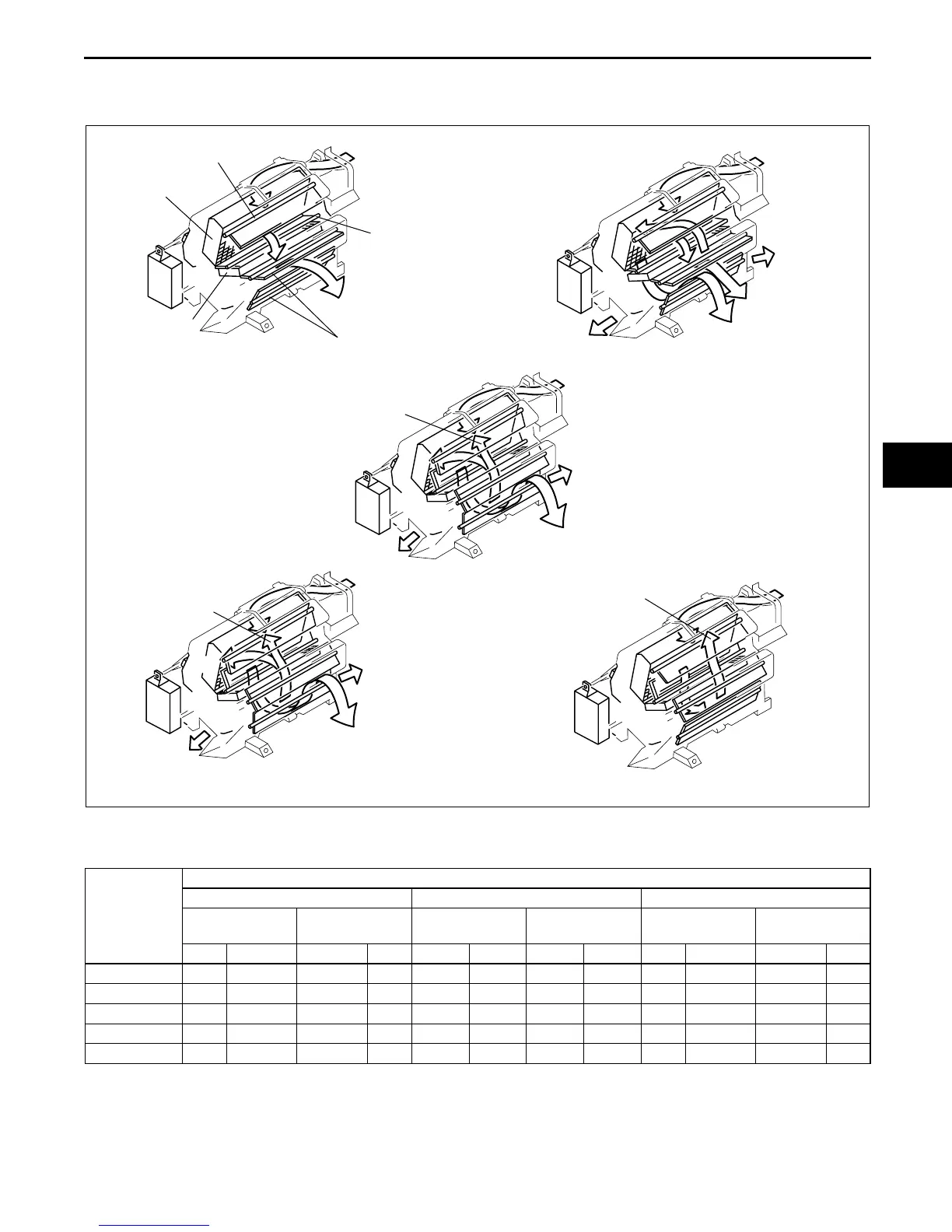

Airflow Mode Door Operation
• The airflow mode doors move to the VENT, BI-LEVEL, HEAT, HEAT/DEF, or DEFROSTER position,
depending on the position of the airflow mode selector switch. As a result, the airflow mode changes.
Airflow Distribution
End Of Sie
AIRFLOW
MODE
AIRFLOW RATE (%)
VENT HEAT DEFROSTER
DRIVER-SIDE
PASSENGER-
SIDE
DRIVER-SIDE
PASSENGER-
SIDE
DRIVER-SIDE
PASSENGER-
SIDE
SIDE CENTER CENTER SIDE FRONT REAR FRONT REAR SIDE CENTER CENTER SIDE
VENT 25 25 25 25 –––––– ––
BI-LEVEL 12.5 12.5 12.5 12.5 16.25 8.75 16.25 8.75 –– ––
HEAT –– ––27 14.5 27 14.5 2 6.5 6.5 2
HEAT/DEF –– ––16.25 8.75 16.25 8.75 6 19 19 6
DEFROSTER –– ––––––12 38 38 12
HEATER CORE
AIRFLOW
MODE DOOR
EVAPORATOR
AIR MIX
DOOR
TO FRONT HEAT
TO FRONT HEAT
TO FRONT HEAT
TO FRONT HEAT
AIRFLOW
MODE DOOR
TO
FRONT HEAT
TO FRONT HEAT
TO REAR HEAT
TO FRONT HEAT
TO FRONT HEAT
TO CENTER VENT
AND SIDE VENT
TO CENTER VENT
AND SIDE VENT
TO DEFROSTER
AND SIDE
DEMISTER
TO DEFROSTER
AND SIDE
DEMISTER
[HEAT/DEF]
[DEFROSTER]
[VENT]
[BI-LEVEL]
TO DEFROSTER
AND SIDE
DEMISTER
[HEAT]
CHU0711S010
