MANUAL TRANSMISSION [Y16M-D]
05–11–4
TRIPLE SYNCHRONIZER MECHANISM STRUCTURE
CHU051101025S05
Features
• A triple synchronizer mechanism using more rings than double synchronizer mechanism is used for the first,
second and third gears to improve synchromesh capacity by increasing a friction surface area.
• The triple synchronizer mechanism consists of a synchronizer ring, middle ring, and inner ring.
• The gear side inner surface of the inner ring can also be used as a friction surface in the triple synchronizer
mechanism. This provides a stronger synchronization force compared to the double cone synchronizer
mechanism and reduces operation force and meshing time.
Structure

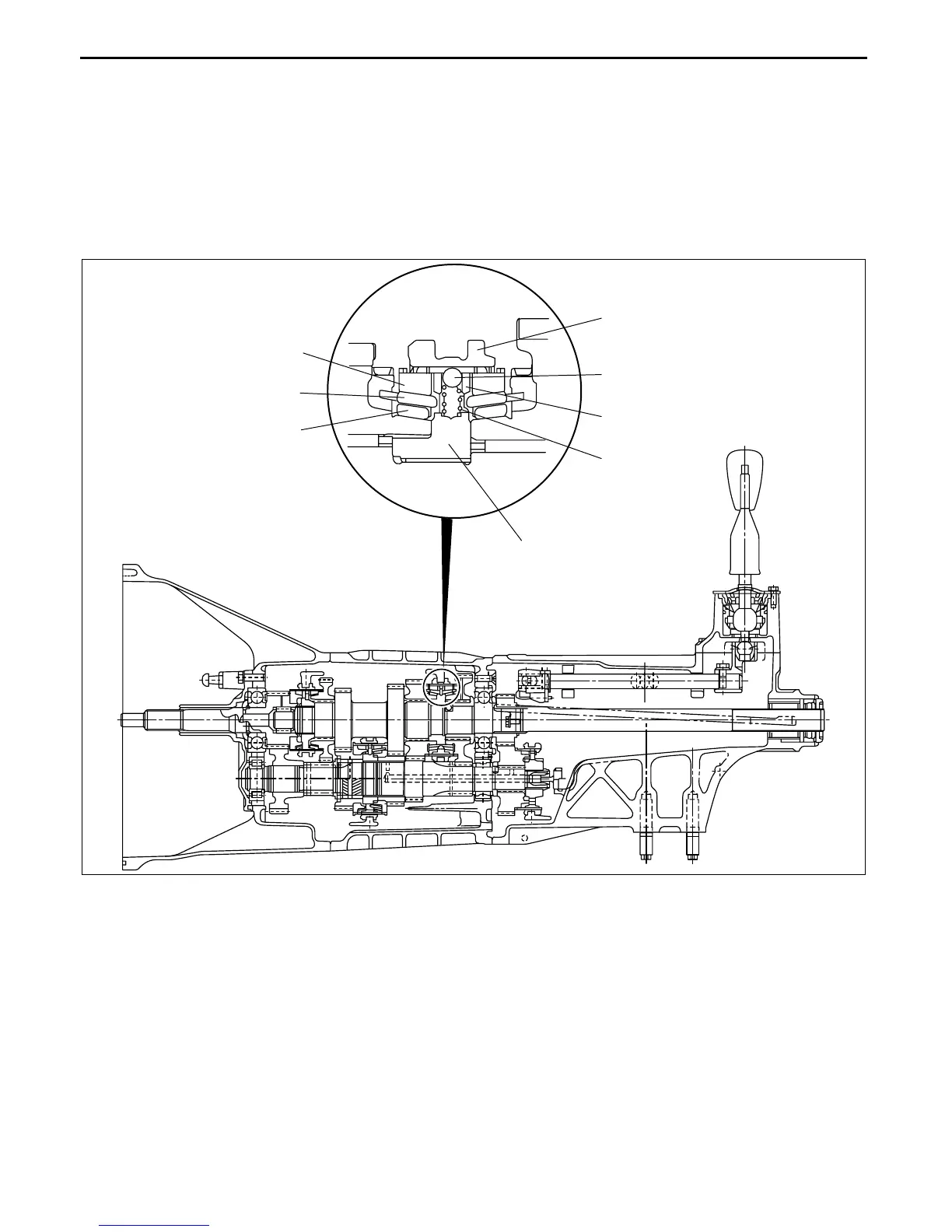

Structural view
End Of Sie
SYNCHRONIZER RING
MIDDLE RING
INNER RING
HUB SLEEVE
BALL
SYNCHRONIZER KEY
SPRING
CLUTCH HUB
CHU0511S104
